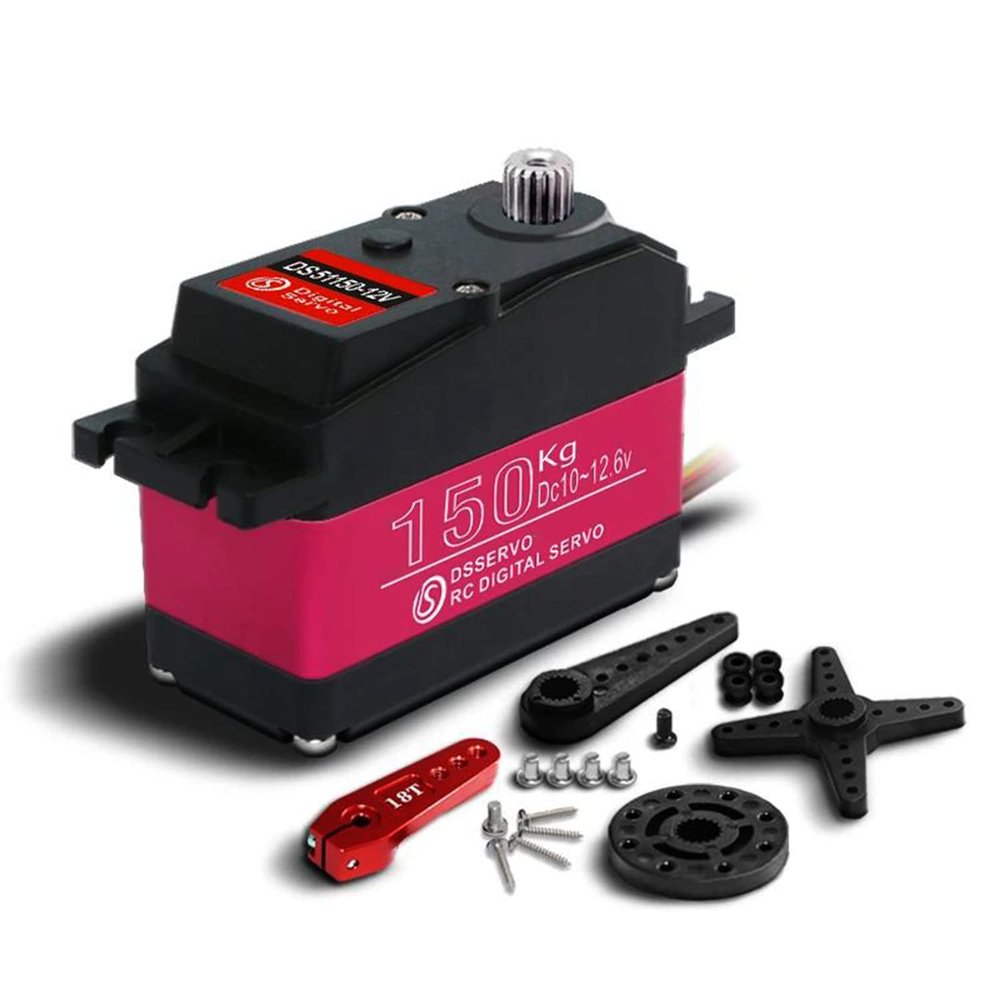

ZOSKAY 150Kg Servo Steel Gear Large Torque servo for 1/5 Scale Redcat HPI Baja 5B SS RC Crawler Compatible SAVOX-0236 LOSI XL 5T (270 Degrees)

Description

• Excellent Big servo150kg HV Robotic Servo for 1/5 Redcat HPI Baja 5B SS RC Crawler compatible SAVOX-0236 LOSI XL 5T
• High Quality - full stainless steel gears,durable power cord and parts,CNC aluminium middle Shell,water-proof sealing silicone loop,dual ball bearing.To easure longer serive time,high speed low noise
• Support High Voltage - the best volts is 12V, Its recommended to use 2S battery for power supply 10-13.5V
• Best for your DIY Projects: easy to install,widely used in remote control crawler cars vehicle truck boat aircraft helicopter robot arm ect.
• Dimension:2.55x1.18x1.89inch (65*30*48mm);Weight:162g (5.71oz)

Operating Voltage: 10 13.5Volts DC
Speed:
0.24sec/60 degree @10V
0.21sec/60 degree @12V
0.19sec/60 degree @13.5V
Torque:
150kg.cm@10V
165kg.cm@12V
182kg.cm@13.5V
Operating Temperature: -25C~70C
Waterproof performance: IP67
Limit angle: 360
Bearing: 2BB
Voltage: 10v-13.5v
Dead Zoon setting:3 Microseconds
Horn Gear Spline: 18 Tooth
Case Material : Engineering Plastic & Aluminum Alloy
Motor Type: Brushed
Command Signal: Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 5002500usec
Neutral Position: 1500usec
Running Degree: 2703(PWM5002500usec)
Dead Band Width: 3 usec
Rotating Direction Counterclockwise: (when 10002000usec)
CE /RoHs:Yes

Servo Size:2.55x1.18x1.89inch (65*30*48mm)
Connector Wire: 17.7in (450mm)
Weight:162g (5.71oz)
CNC aluminium middle Shell for better heat dissipation, two ball bearings on the output shaft for reduced friction.Light weight,high-speed big torque, water-resistant,sensitive,responsive,low noise and so on. Its Stainless Steel Gear which offer faster speed and accuracy and longer service life.It also has plently of power,super strong and stable, will help you to control your model better. -
