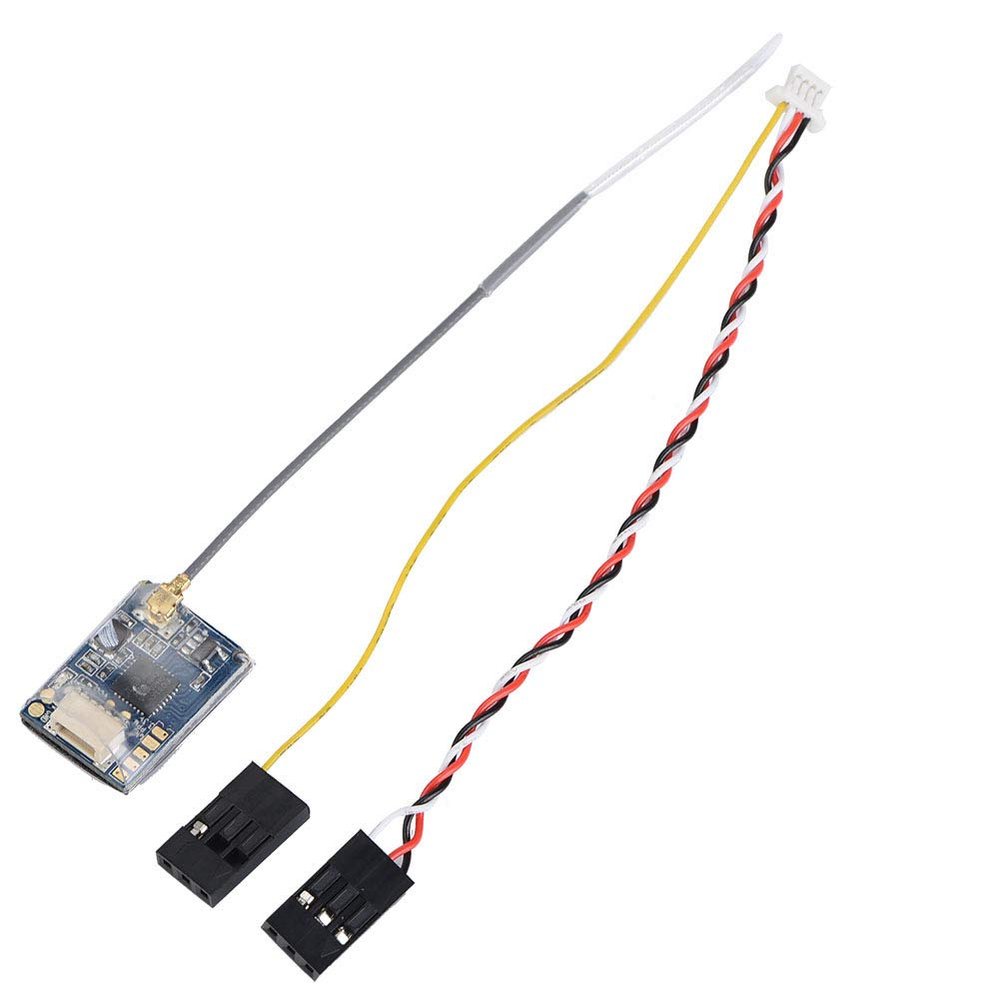

Yctze Mini 2.4G 8CH Receiver with PPM IBUS SBUS Output for RC Drones, Compatible with FSi4 FSi6 FSi6S

Description

• It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, and supports standard PPM output as well as has i-BUS support for up to 18 channels
• The FS-A8S is a compact one-way receiver
• Changing mode (i-BUS / S.BUS) is simplier and easier
• Changing mode (i-BUS / S.BUS) is simplier and easier
• GUARANTEE: Our product have 180 days warranty, if you have any question about this product, please feel to us, we will try our best to help you solve your problem

1. The FS-A8S is a compact one-way receiver
2. It is designed for multi-rotor aircraft
3. It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, and supports standard PPM output as well as has i-BUS support for up to 18 channels
4. The receiver is suitable for FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F RC transmitter
5. Changing mode (i-BUS / S.BUS) is simplier and easier

Specification:
Features:
The FS-A8S is a compact one-way receiver.
It is designed for multi-rotor aircraft.
It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, and supports standard PPM output as well as has i-BUS support for up to 18 channels.
The receiver is suitable for FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F RC transmitter.
Changing mode (i-BUS / S.BUS) is simplier and easier.
Specification:
Material: PCB + Rubber
Color: Black
Brand Name: Flysky
Item Name: FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model Type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
DSC Port: PPM/i-BUS/S.BUS
Transfer Method: FHSS
Data Output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna Length: 26mm (Not including brass contacts)
Input Power Supply: 4.0-8.4V
Display Method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each Channel Data: On The Transmitter
Channel Delay:
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
Size: Approx. 20 * 15 * 7mm / 0.8 * 0.6 * 0.3inch
Weight: 9g
Type: RC Model Part & Acces
Package List:
1
