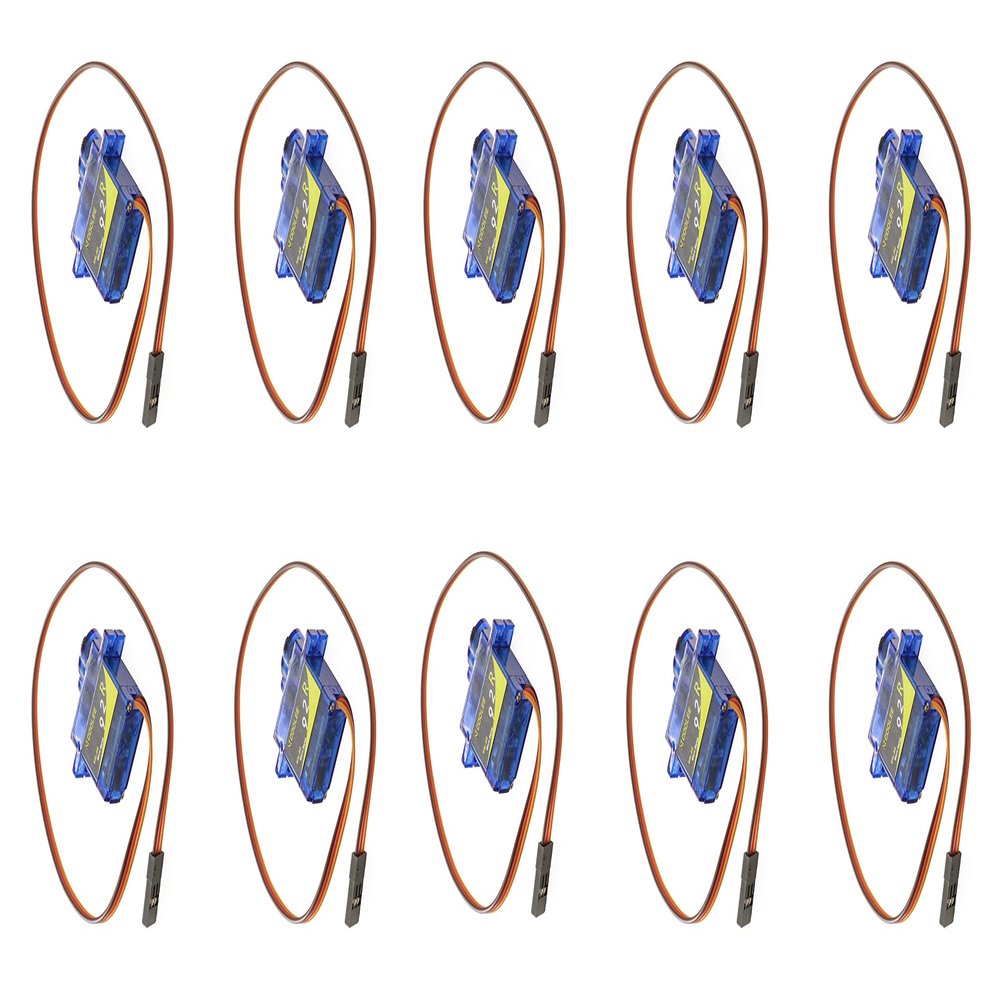

XICOOLEE SG-92 9G Micro Digital Servo Nylon Carbon Fiber Gears High Precision Gear High Torque Servo for programmable Fixed Wing, Helicopter KT, Intelligent car, Small Robot DC4.8V/6V(10pcs)

Description

• 1.Strong compatibility, whether it is the program or mechanical structure for standard building blocks, as far as possible compatible processing;
• 2.It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged;
• 3.Suitable for fixed wing, helicopter KT, gliding, intelligent car, small robot manipulator and other models;
• 4.Classic 9g Servo, control is simple, 3Pin 2.54mm DuPont cable Header;
• 5.Supply Voltage:DC4.8V-6V, Operating speed(at no load): 4.8V 0.120.01sec/606V 0.10.01sec/60

Overview:
The product can control the rotation speed and direction of the output shaft. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged.
The internal integrated reduction gear can increase the torque and is suitable for programmable fixed wing,
helicopter KT, glide, intelligent car, small robot manipulator and other models.

Specifications:
Supply Voltage: DC4.8V / DC6V
Operating speed (at no load): 4.8V 0.120.01sec/60 6V 0.10.01sec/60
Running current (at no load) : 4.8V 20020mA 6V 22020mA
Stall torque (at locked): 4.8V 1.50.01kg-cm 6V 1.80.1kg-cm
Stall current (at locked): 4.8V 70030mA 6V 90030mA
Idle current (at stopped): 41mA
Weight: 9g
Storage Temperature Range-2060
Operating Temperature Range-1050
Control systemChange the pulse width
Amplifier typeController
Operating travel905(in 10002000sec)
Left&Right travelling3
Centering deviation1
Neutral position1500sec
Dead band width5sec
Rotating directionCounter Clockwise (1500500sec)
Pulse width range8002200sec
Maximum travelAbout 145(in 8002200sec)
Connect Wire DefinitionsRed lead -VCC, Brown lead -GND,Yellow lead -PWM

Package contents:
1.SG-92 Micro Servo motor10
