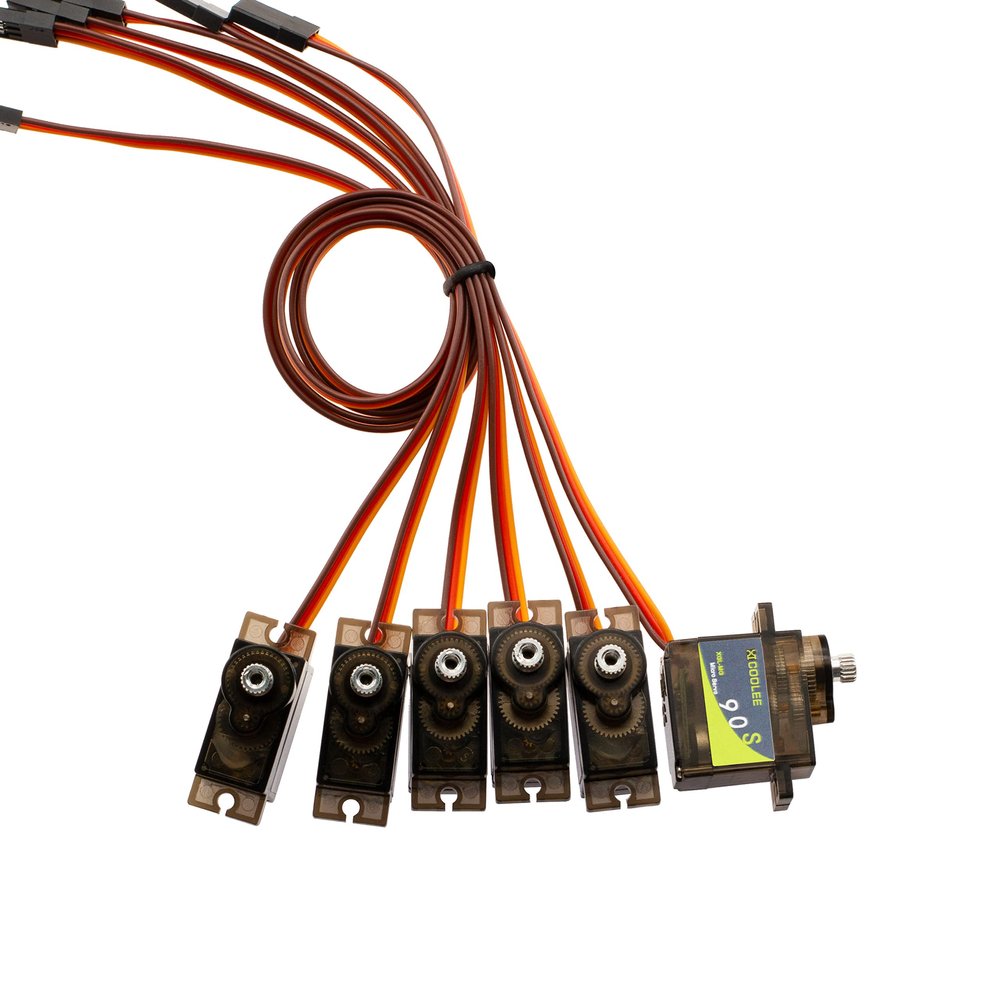

xicoolee 6pcs MG-90 Servo Micro 12g Servo Motor Metal Gear Digital Servo for RC Airplane Model Car Helicopter Robot Diving Equipment Racing Model

Description

• 1.Strong compatibility, whether it is the program or mechanical structure for lego-build, as far as possible compatible processing;
• 2.12g Servo, control is simple, accurate angle and fast response;
• 3.Suitable for RC helicopters, aircraft, ships, vehicles, etc., and various angle control models;
• 4.Metal Servo motor with higher torque and quality.
• 5.3Pin 2.54mm DuPont cable Header; Operating voltage: 4.8V~6.0V

Overview:
The product can control the rotation speed and direction of the output shaft. It is made of environment-friendly POM plastic,
which is small, light and not easy to be damaged. The internal integrated reduction gear can increase the torque and is suitable for programmable remote control aircraft,
small steering gear, fixed wing aircraft, Rc helicopters, aircraft and boats.

Specifications:
Storage Temperature Range: -2060
Operating Temperature Range: -1050
Operating Voltage Range: 4.8V6.0
Weight:12g
Operating speed (at no load): 0.120.01 sec/60 (4.8V ) 0.110.01 sec/60(6V)
Running current (at no load) :22020mA (4.8V ) 25020mA(6V)
Stall torque (at locked) :1.50.01kgcm (4.8V ) 1.80.1kgcm(6V)
Stall current (at locked):700ma50mA (4.8V ) 900mma50mA(6v)
Idle current (at stopped):41mA (4.8V ) 41mA(6v)
Control system: Change the pulse width
Amplifier type: Analog controller
Operating trave:905(10002000 sec)
Left&Right travelling Angle deviation:3
Centering deviation: 1
Neutral position:1500 sec
Dead band width: 3sec
Rotating direction:Counter Clockwise (1500800sec)
Pulse width range:8002200 sec
Maximum travel:About 145(8002200 sec)
Connect Wire Definitions:Red lead -VCC, Brown lead -GND,Yellow lead -PWM
Package contents:
1.MG-90 Servo x 6
