Xiangtat RadioMaster Ranger Nano 2.4GHz ELRS Module Combo Set Up to 1 Watt Power Output Packet Rates Up to F-1000Hz

Description

• RadioMaster Ranger Nano 2.4GHz ELRS Module Combo Set
• Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster and more) to enjoy all that ELRS has to offer.
• The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
• Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules.

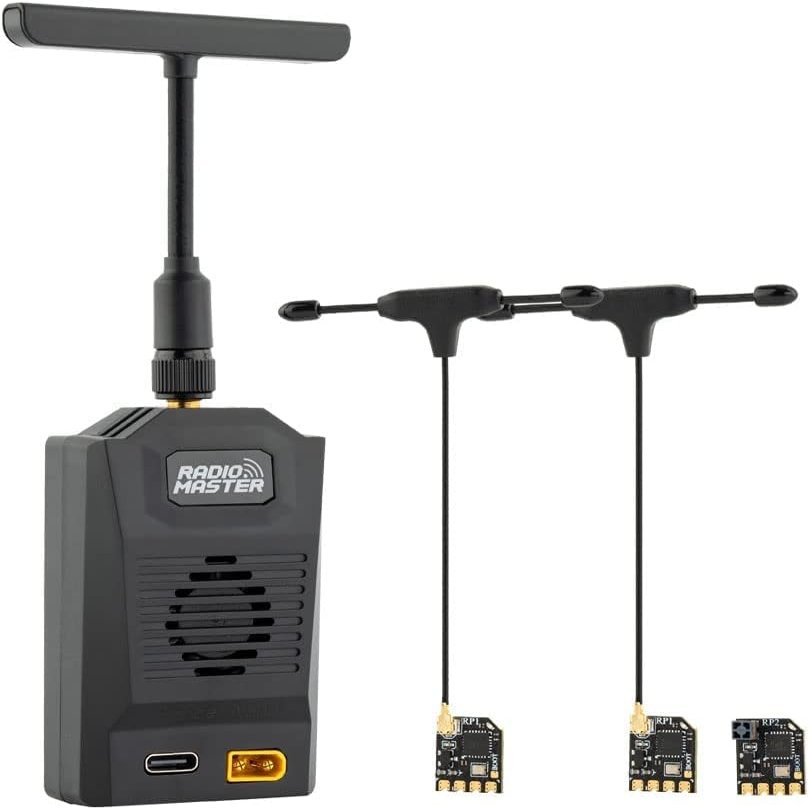

• Combo Package--The Ranger Nano Combo package is the ideal way to get started in the world of ExpressLRS. A complete Ranger Nano module is provided along with two RP1 ExpressLRS receivers and one RP2 ExpressLRS receiver.
• Multiple applications RC CARS, BOATS, CRAWL ERS, SCAL E MACHINERY AND MORE

Features

Available with built-in ExpressLRS or 4in1 MPM RF modules

Featuring a powerful STM32F407VGT6 with 1MB Flash

Preinstalled EdgeTX firmware

QC3.0 fast charging supporting 2.0A MAX

Compact design with excellent ergonomics

Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)

Standard Nano module compartment

RadioMaster standardized button layout

Rotatable antenna

Customizable base switches or 4 way joystick included

Specification MT12

Item: MT12 Surface Radio

Physical dimensions: 177.8*118.4*207.8mm

Weight: 480 grams

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

Operational current: 160mA for 4in1 / 320mA for ELRS

Operational voltage: DC 6.6-8.4V

Operating system: EdgeTX

Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)

Display: 128*64 Monochrome LCD

Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)

Charging: Built in USB-C Charging

Firmware Upgrade method: Via USB or SD card

Wheel and Trigger sensor: Hall-effect

Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

32 channels requires a 4in1 radio and additional 4in1 RF module along with compatible receivers

Specification ER3C-i (Included with ExpressLRS version)

Item: ER3C-i 2.4GHz ELRS PWM Receiver

Power supply: DC 4.5 - 8.4V

Antenna type: Built-in high-sensitivity ceramic antenna

Wireless protocol: ExpressLRS 3.3.0 pre-installed

Output channel: 3CH PWM

Telemetry power: 10mW

Battery voltage detection range: DC 4.0 - 35V

Weight: 4.2 grams

Dimensions: 26.1*18.5*13.0 mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i

Specification R85C (Included with 4in1 version)

Item: R85C Receiver

Power supply: DC 4.5 - 8.4V

Frequency range: 2400-2483.5Mhz

Support protocol: D8/D16/SFHSS

Output channel: 5CH PWM

Antenna type: high-sensitivity 2.4G antenna

Telemetry power: 100mw / 20dbm

Weight: 5.7 grams

Dimensions: 31.0*18.5*13.0 mm
