Xiangtat RadioMaster R86 2.4GHz 6CH Over 1KM SBUS Nano Receiver Compatible FrSky D8 TX12 TX16S Support Return RSSI (R86 V2 6CH Receiver)

Description

• RadioMaster - R86 V2 6ch SFHSS Compatible PWM Receiver
• Channels: 6
• Frequency range: 2400-2483.5Mhz
• Signal format: D8, D16 & SFHSS Compatible
• utput format: PWM ;Range: more than 1km

Xiangtat RadioMaster R81 R84 R86 R86C R88 2.4GHz Over 1KM SBUS Nano Receiver Compatible FrSky D8 TX16S Support Return RSSI for RC Drone

Specifications:

RadioMaster - R81 8ch Frsky D8 Compatible Nano Receiver with Sbus

Channels: 8

Frequency range: 2400-2483.5Mhz

Power input range: 4.5-6V

Signal format: Frsky D8 Compatible

Output format: SBUS

RSSI: RSSI on Ch9 of Sbus Output

Control distance: more than 1km

Antenna length: Approximaltly 6cm

Size: 17x11mm

Weight: 2grams

RadioMaster - R84 V2 4ch Frsky D8 / D16 and Futaba SFHSS Compatible PWM Receiver

Channels: 4

Frequency range: 2400-2483.5Mhz

Power input range: 4.5-6V

Signal format: D8, D16 & SFHSS Compatible

Output format: PWM

Range: more than 1km

Antenna length: 6cm

Size: 17x11mm

Weight: 2 grams

RadioMaster - R86C V2 6ch Frsky D8/D16 and Futaba SFHSS Compatible PWM / Sbus Receiver

Channels: 6 channels (PWM), 8 channels (SBUS)

Frequency range: 2400-2483.5Mhz

Power input range: 4.5-6V

Signal format: D8, D16 & SFHSS Compatible

Output format: PWM / Sbus

Range: more than 1km

Antenna length: 15 cm

Size: 45x21.2x12.7mm

Weight: 8 grams

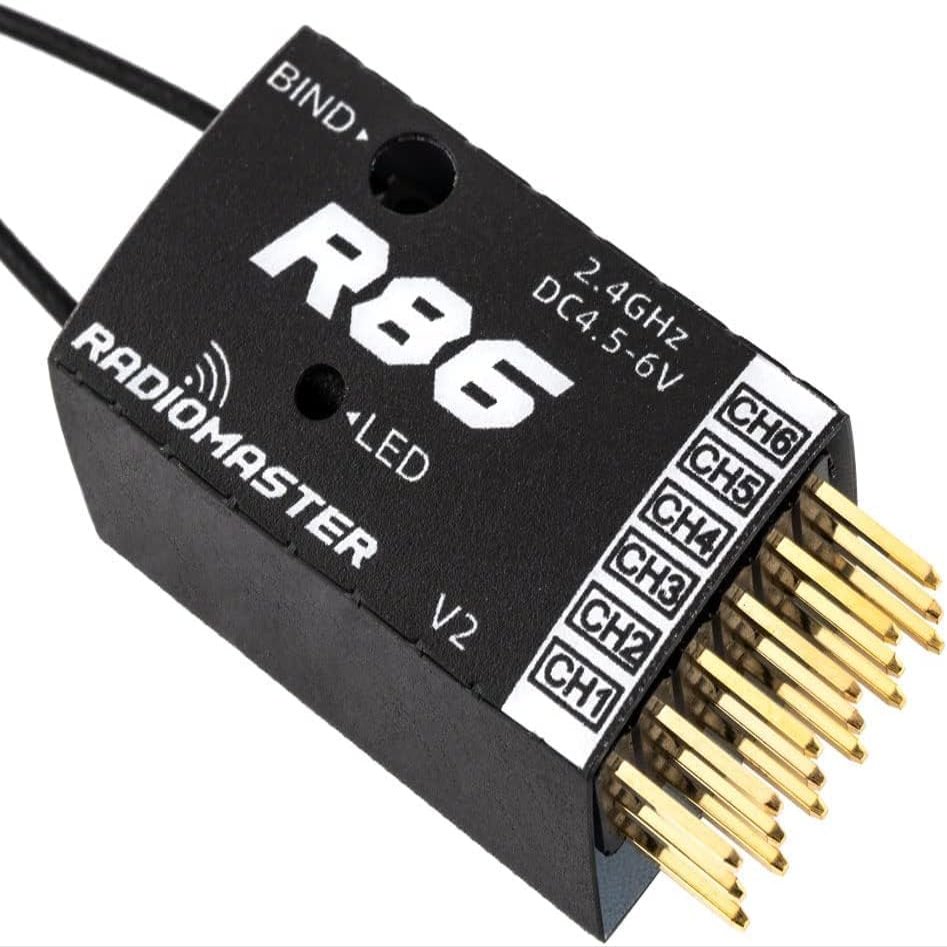

RadioMaster - R86 V2 6ch Frsky D8 / D16 and Futaba SFHSS Compatible PWM Receiver

Channels: 6

Frequency range: 2400-2483.5Mhz

Power input range: 4.5-6V

Signal format: D8, D16 & SFHSS Compatible

Output format: PWM

Range: more than 1km

Antenna length: 15cm

Size: 28x16.5x11mm

Weight: 8 grams

RadioMaster - R88 V2 8ch Frsky D8 / D16 and Futaba SFHSS Compatible PWM / Sbus Receiver

Channels: 8

Frequency range: 2400-2483.5Mhz

Power input range: 4.5-6V

Signal format: D8, D16 & SFHSS Compatible

Output format: PWM/Sbus

Range: more than 1km

Antenna length: 15 cm

Size: 40x26x16mm

Weight:11 grams

Bind method:

1. Press and hold the BIND button on the receiver then connect power. After approximately 3 seconds, the receiver LED will be RED, the receiver is now in bind mode

2. Select the D8 protocol for the multi-protocol menu of your remote control, and press the [BIND] option, the red light of the receiver will flash indicating successful bind

3. Exit bind mode on your remote control and disconnect power to the receiver then power the receiver once more. The LED will now be solid RED indicated the bind is now done. If not please repeat step 1 and 2

Fail-safe Protection:

1. Press the BIND button once within 10 seconds of th eceiver being powered on, and the receiver will save all the current channel values of the remote control as the fail-safe value

2. 10 seconds after the receiver is powered on, the BIND button function will be disabled to prevent accidental changes to to the fail-safe settings while preparing the model for flight

RSSI output:

This receiver has a total of 9 channels. 8 channels + an RSSI output channel.

Channels 1-8 are controlled by the remote controller, the 9th channel is the signal strength RSSI value output by the receiver itself, which can be read by the flight controller and sent to the OSD device Show signal strength.
