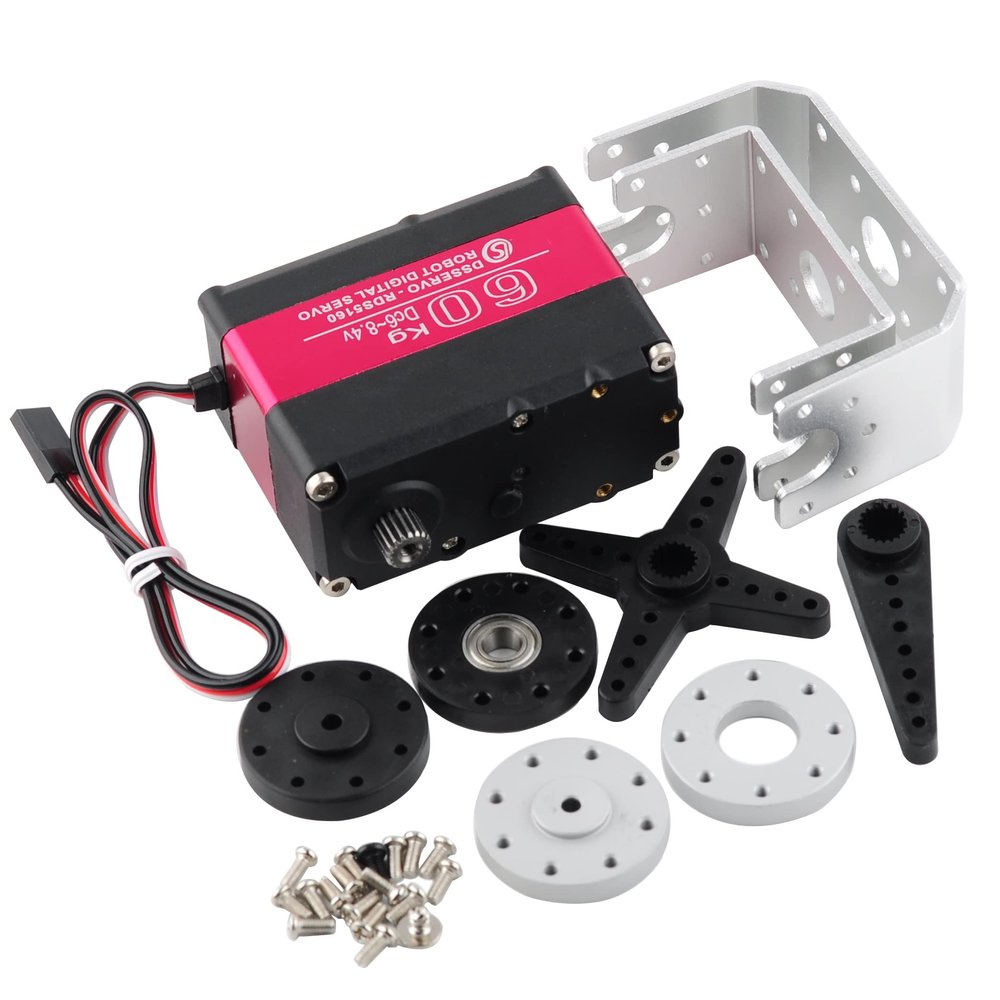

Wishiot RDS5160 Servo 60 kg RC Digital Servo High Torque Mental Gear 180 270 Degree with U-Shaped Mount Disc for 1/5 RC Car Robotics DIY Projects (270)

Description

• How to connect the cable: red is positive, black/brown is negative, white/yellow is signal
• The operating voltage is DC6-8.4V, the best operating voltage is 7.4V. Torque: 58kg.cm.(6v) 65kg.cm.(7.4v) 70kg.cm.(8.4v)
• High quality: metal gear and housing made of aluminium alloy, waterproof IP67 supports wet environment, but cannot be used directly under water
• Control angle 180/270 degrees, 60 kg large torque, supports your DIY project, widely used in robots, robot arms, Baja cars and remote controlled toys
• You will receive 1 PCS 60 kg servo with U-shaped holder disc and accessories

Applicable environmental conditions
Storage temperature range: -30C ~ 80C.
Operating temperature range: -15C ~ 70C.
Operating voltage range: 6-8.4 V.

Mechanical specification:
Size: 65 x 30 x 48 mm.
Weight: 163 g.
Transmission ratio: 279.
Bearing: double bearing
Connecting wire: 300 5 mm.
Motor: 3-Ploe(s).

Electrical specification:
No-load current (in standstill): 4 mA at (6 V) 5 mA at (7.4 V) 6 mA at (8.4 V).
Operating speed (without load): 0.17 sec/60 at (6 V) 0.15 sec/60 at (7.4 V) 0.13 sec/60 at (8.4 V).
Stop torque (when blocked): 58 kg. cm. at (6 V) 65 kg. cm. at (7.4 V) 70 kg. cm. at (8.4 V).
Current consumption when stopped (when blocked): 3.5 A/6 V, 5 A/7.4 V, 6.2 mA/8.4 V.

Control specification:
Control: PWM (pulse width modification).
Pulse width range: 500 ~ 2500 sec.
Neutral position: 1500 sec.
Running level: 180 or 270 (at 500~2500 sec).
Dead zone width: 3sec.
Operating frequency: 50-330 Hz.
Rotation direction: counter-clockwise (at 500 ~ 2500 sec).

Features:
- Durable metal gearbox.
- Double ball bearing.
- Programmable digital amplifier with Mosft Drive.
- Axial mounting hole on the bottom.
- Original factory product.
- Less noise.
- Contains: Long bracket aluminium & short bracket aluminium & circle holder 18T & circle holder orientation angle: maximum 180 or 270 deg.
- Mechanical angle: 360 degrees (plug/output wheel/radio control system compatible with Futaba JR Hitec).
