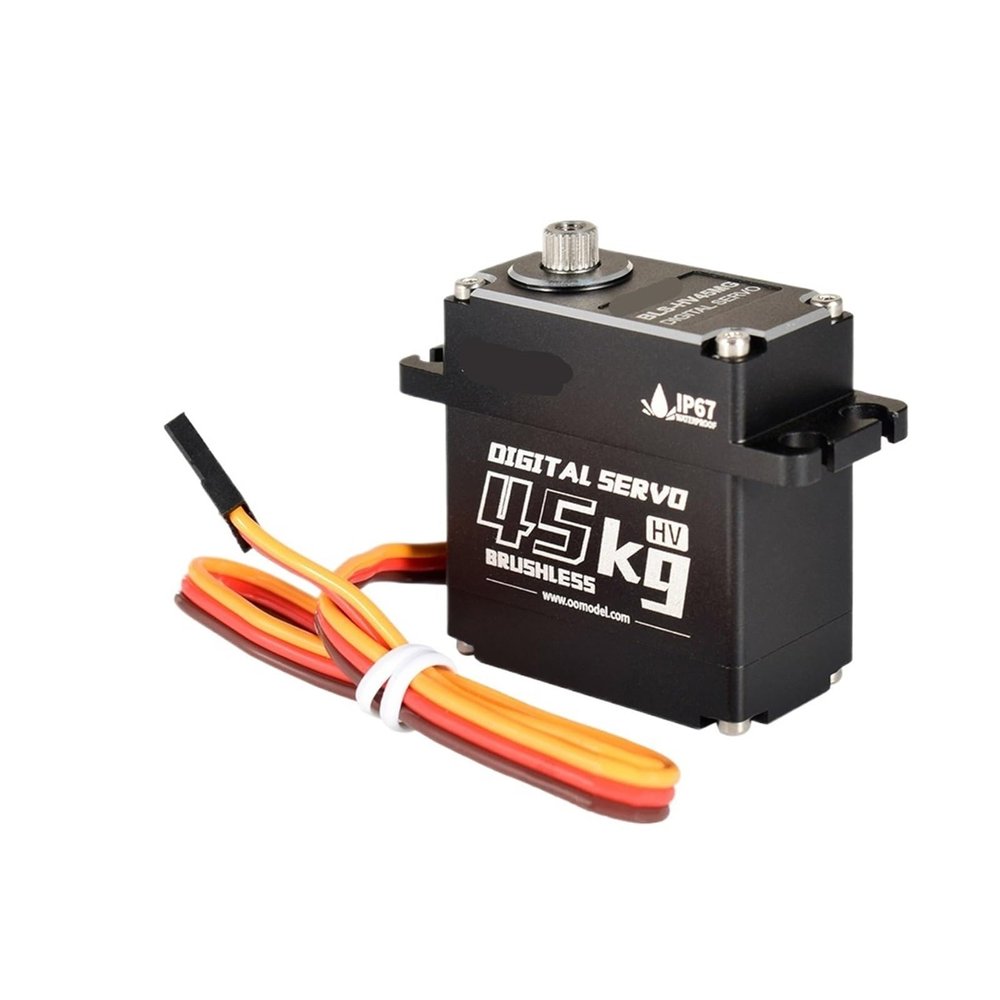

Waterproof Servo DSC45MG 45KG 35KG 180 Degree Digital Metal Gear HV Brushless Coreless Servo(Brushless 45KG Servo)

Description

• Servo Gears

Servo Gears
Model:DSC45MG
Color: Black
Deadband width: 2 usec
Gear material: Metal gear
Case material: Aluminum case
Control system: PWM control (center point 1500usec)
Operating voltage range: 6.0V~8.4V
Operating temperature range: -20C~ +60C
Cycle times: >60,000 times (no load)
Operating stroke: 601
Limit angle: 1801
Direction: Clockwise/Pulse travel 500-2500 seconds
Diver Type: Mos Drive
Motor type: Coreless motor
Potentiometer Type: Direct Drive
Amplifier Type: Digital Control
Dimensions: 40x20x48.6mm
Weight::75g (excluding servo speaker)
Static torque: 0.12 sec/60, 35 kg-cm@6.0V 0.11 sec/60, 45 kg-cm@8.4V
Idle current: 350mA@6.0V 410mA@8.4V
Operating current: 3500mA@6.0V 4000mA@8.4V
Ball bearing: 2BB
Connector line length: 300MMJR
Connector wire gauge: 22AWG
