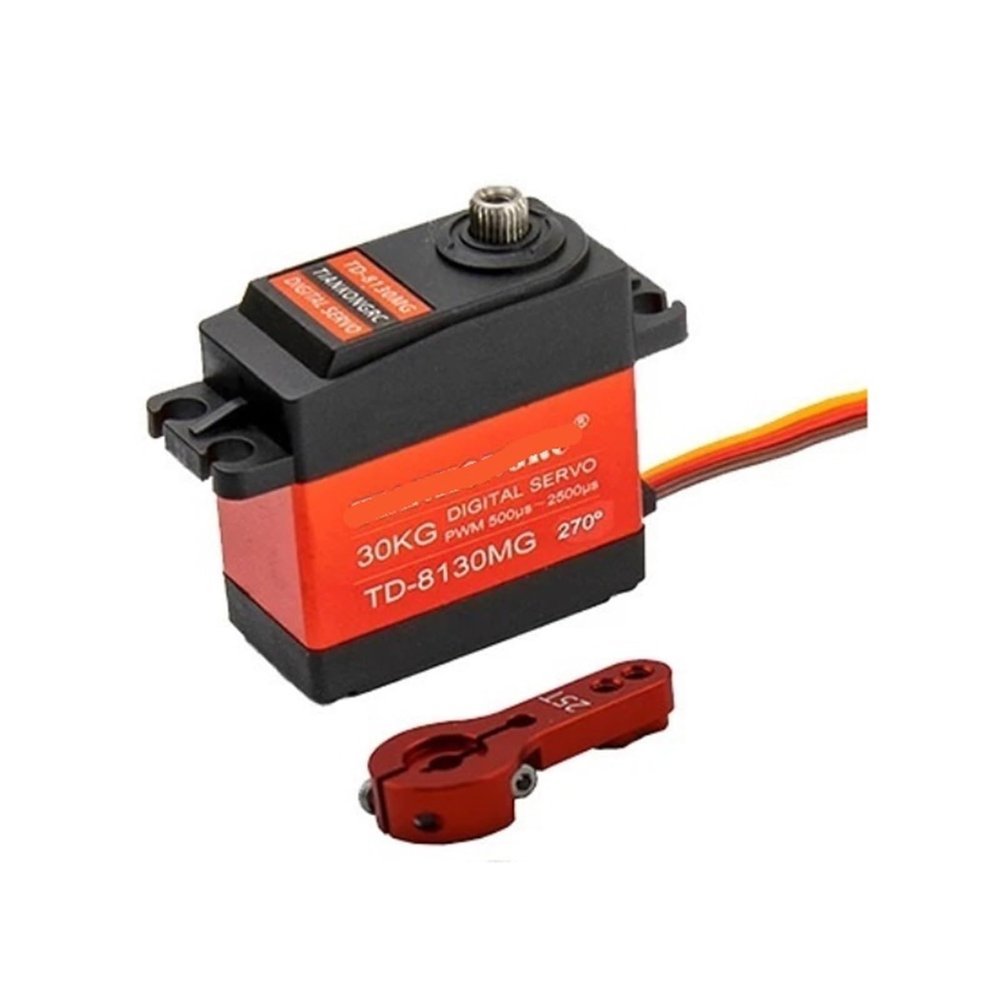

Waterproof 180/270 Degrees 30KG 35kg 60KG High Torque Metal Gear Digital servo(1x30kg 270Degree Arm)

Description

• Servo Gears

Servo Gears
30KG Server:
- High precision metal gears, hard anodized
CNC aluminum alloy middle shell,
Control system: PWM control (1500u-sec as the center point)
Working voltage: 4.8V8.4V
Working temperature: -20C+60C
Torque: 4.8V /29.5kg.cm
8.4V/32kg.cm
Idle speed: 4.8V/0.24 seconds/60 degrees
8.4V/0.17s/60C
Steering angle: 180/270 degrees
Dead zone: 2usec
Lifespan: >15000 times without load
Moving angle: 6010
Driver type: MOS driver
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Booster Type: Digital
Size: 40.5X20.2X40.3mm
Weight: 62g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 260mm
Wire Gauge Number and Type: 26AWG, JR
Brown wire: negative pole
Red wire: positive
Orange line: signal

35KG servo: High-precision metal gears with hard anodizing treatment
CNC aluminum alloy middle shell,
Control system: PWM control (1500u-sec as the center point)
Working voltage: 4.8V8.4V
Working temperature: -20C+60C
Torque: 4.8V /32.7kg.cm
8.4V/35.2kg.cm
Idle speed: 4.8V/0.32 seconds/60 degrees
8.4V/0.22s/60C
Steering angle: 180/270 degrees
Dead zone: 2usec
Lifespan: >15000 times without load
Moving angle: 6010
Driver type: MOS driver
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Booster Type: Digital
Size: 40.5X20.2X40.3mm
Weight: 62g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 260mm
Wire Gauge Number and Type: 26AWG, JR
Brown wire: negative pole
Red wire: positive
Orange line: signal

60KG servo: High-precision metal gears with hard anodizing treatment
CNC aluminum alloy middle shell,
Control system: PWM control (1500u-sec as the center point)
Working voltage: 4.8V8.4V
Working temperature: -20C+60C
Torque: 4.8V /58.5kg.cm
8.4V/70kg.cm
Idle speed: 4.8V/0.17 seconds/60 degrees
8.4V/0.13s/60C
Steering angle: 180/270 degrees
Dead zone: 2usec
Lifespan: >15000 times without load
Moving angle: 6010
Driver type: MOS driver
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Booster Type: Digital
Size: Size: 65X30.2X49mm
Weight: 180 g
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 260mm
Wire Gauge Number and Type: 26AWG, JR
Brown wire: negative pole
Red wire: positive
Orange line: signal
