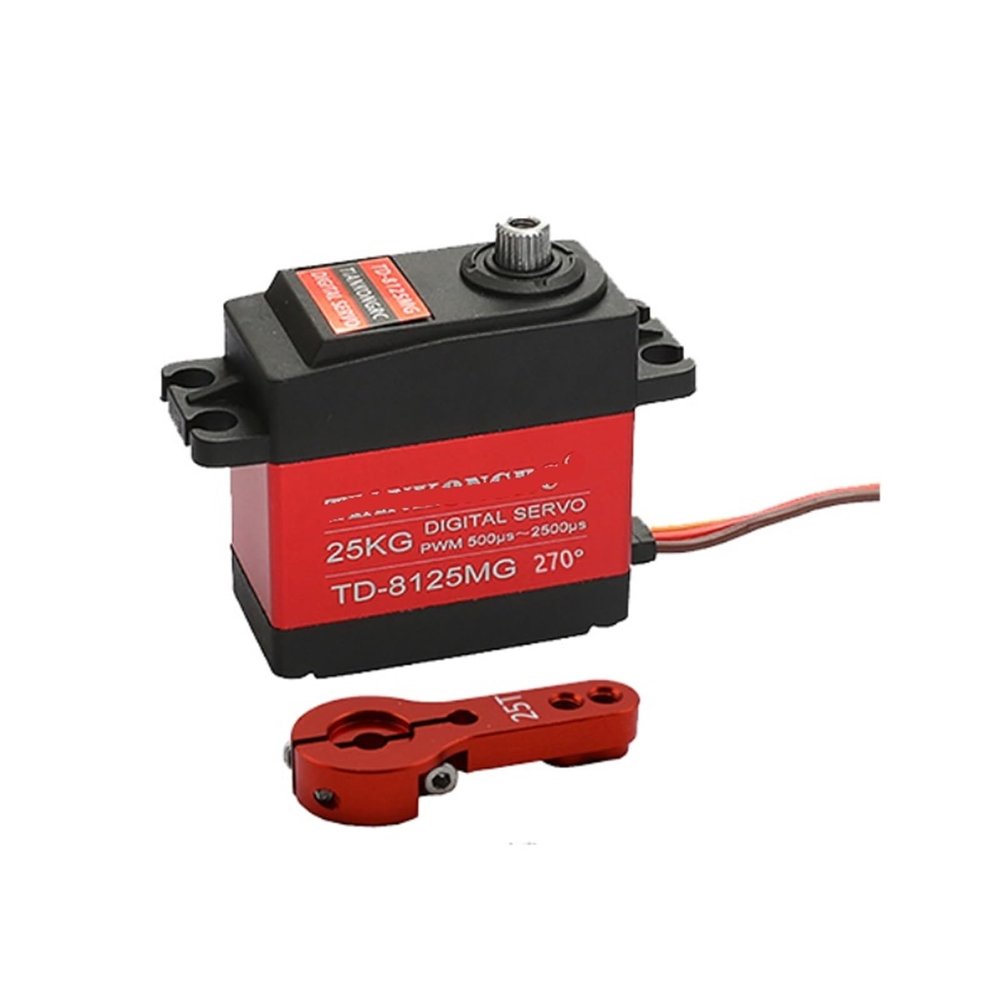

Waterproof 180/270 Degrees 20KG 25KG High Torque Metal Gear Digital servo(1x25kg 270Degree Arm)

Description

• Servo Gears

Servo Gears
20KG servo: High-precision metal gears with hard anodizing treatment
CNC aluminum alloy middle shell,
Control system: PWM control (1500u-sec as the center point)
Working voltage: 4.8V7.2V
Working temperature: -20C+60C
Torque: 4.8V /17.2kg.cm
6.0V/20.3kg.cm
Idle speed: 4.8V/0.18 seconds/60 degrees
6.6V/0.14s/60C
Steering angle: 180/270 degrees
Dead zone: 2usec
Lifespan: >15000 times without load
Moving angle: 6010
Driver type: MOS driver
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Booster Type: Digital
Size: 40.5X20.2X40.3mm
Weight: 62g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 260mm
Wire Gauge Number and Type: 26AWG, JR
Brown wire: negative pole
Red wire: positive
Orange line: signal

25KG servo: High-precision metal gears with hard anodizing treatment
CNC aluminum alloy middle shell,
Control system: PWM control (1500u-sec as the center point)
Working voltage: 4.8V7.2V
Working temperature: -20C+60C
Torque: 4.8V /23.5kg.cm
7.2V/26.8kg.cm
Idle speed: 4.8V/0.18 seconds/60 degrees
6.6V/0.14s/60C
Steering angle: 180/270 degrees
Dead zone: 2usec
Lifespan: >15000 times without load
Moving angle: 6010
Driver type: MOS driver
Motor type: core motor
Potentiometer Type: Direct Drive
Signal Booster Type: Digital
Size: 40.5X20.2X40.3mm
Weight: 62g (without accessories)
Ball bearing: 2BB
Gear material: Metal gear
Shell material: PA66+fiber 40%
Cable length: 260mm
Wire Gauge Number and Type: 26AWG, JR
Brown wire: negative pole
Red wire: positive
Orange line: signal
