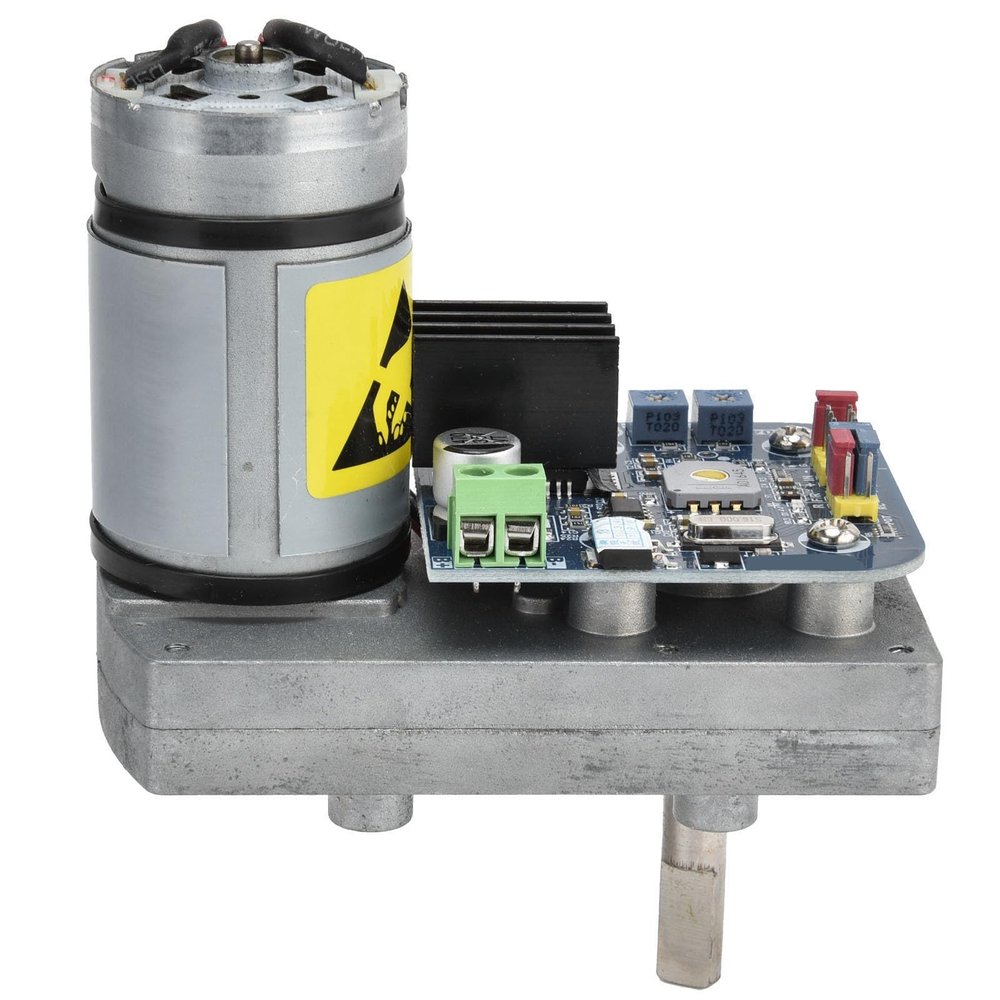

Walfront Servo Motor, ASMC04A12V~24V High Power Torsion Digital Aluminum Alloy for Large Robot Servo Motor Controller, Appendix

Description

• Using alloy gear HighPower motor, which can achieve good results of high output. A great choice for you.
• Aluminum alloy body, super light weight, so the product is lighter and the use effect is better. You can use it with confidence.
• The installation is simple and the program avoids cumbersome, which greatly saves you valuable time. Bring you a new and different using feeling.
• Rugged and reliable, so the quality of the product is higher and the service life is longer. Its quality is guaranteed.
• The servo motor is suitable for servo motor controller, model airplane remote control and analog voltage control.

Specification:
Item Type: Servo Motor
Material: Aluminum Alloy
Model: ASMC-04A
Maximum Torsion: 110kg.cm (24V) (actual measurement, not theoretical calculation value)
1078N.cm(24V) (actual measurement, not theoretically calculated value)
55kg.cm(12V) (actual measurement, not theoretical calculation value)
539N.cm(12V) (actual measurement, not theoretical calculation value)
Angular Speed: 0.12s/60(0.12s is required to turn 60 degrees), at 24V;
0.24s/60(0.24s is required for 60rotation), at 12V;
Rotation Angle: 300 Maximum, Which means the maximum stroke is 300 (0 to 300 electronic limit is adjustable)
Input Mode: Pulse (remote control, Multi-Channel steering gear controller, Single-Chip microcomputer) or analog voltage (potentiometer)
Pulse input Range: 0.5MS-2.5MS Suitable for all "Multi-Channel steering gear controllers", "1MS-2MS model aircraft remote control", "SCM programming", and so on;
Voltage Input Range: 0V to +5V
Control Accuracy: 0.32

Package List:
1 x Robot Arm Servo
1 x Connection Line

Note:
1 Don't overload use
2 Do not use over pressure
3 Do not use over current
