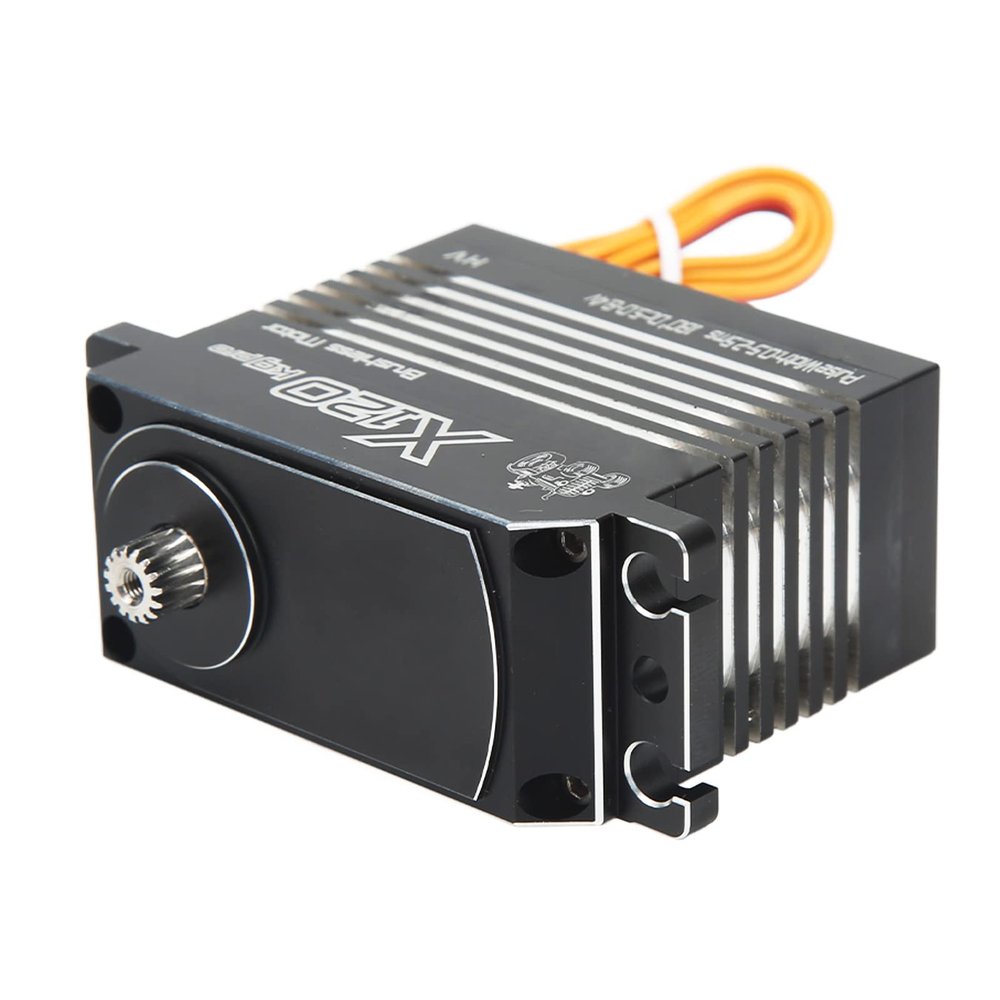

VBESTLIFE Metal Gear Digital Servo,120kg High Speed Brushless Servo Full Metal High Torsion Digital Servo for 1/5 1/6 Car Robot Boat

Description

• [IPX8 Servo is fully design with function, grade IPX8, the servo can be completely submerged in water.
• [High Speed] 120KG high torsion digital servo with brushless motor, much faster compared with ordinary servo.
• [Kit Configuration] Servo kit includes servo kit, spare gear and shaft pin, 15t metal servo arm inside, rich items and convenient to use.
• [Widely Used] Servo can be used to change the torsion, speed and angle of remote control toys, robots, robotic arms and other remote control toys.
• [ Function] Servo has anti blocking and anti burning function, equipped with full CNC accuracy gears, more wear resistant, not easy to break sweeping teeth.

Description

Specification:
Item Type: 120kg Servo
Shell Material: Aluminum Alloy
Color: Black
Product Size: Approx. 60x30x54mm/2.4x1.2x2.1in (Without Cable, Mounting on Both Sides and Top Gear)
Operating Voltage: DC 5V to 8.4V
Rotation Angle: 180 Degrees
Number of Teeth: 15T
Deadband: 3s
Pulse Width: 500-2500s
Operating Frequency: 1520s/330Hz
Motor: High Performance Brushless Motor
Gear: Full Steel Teeth
Potentiometer: High Performance Potentiometer
Experimental Data:
Speed (6V): 0.135sec/60 Degrees
Speed (7.4V): 0.11 sec/60 Degrees
Speed (8.4V): 0.1 sec/60 Degrees
Blocking Torsion (6V): 90kg/198.4lb cm
Plugging Torsion (7.4V): 110kg/242.5lb cm
Plugging Torsion (8.4V): 120kg/264.6lb cm
Connection Line: JR Line 300mm/11.8in
Applicable: 1/5 1/6 Car, Robot, Boat, Helicopter, etc.

How to Use:
1.Firstinstalltheservototheservoseat,withoutinstallingtheservoarmorservoprotection.Onlytheservoisfixedtotheframe.Thenconnecttheservotothereceiver,usuallyCH1orSTsocket
2.Aftertheservoisfixed,turnontheremotecontrol,setitupandturnontheESC,thentheservowillstopatafixedposition
3.Withoutclosingtheremotecontrolandrudder,installtherudderprotectionorrudderarmtotherudderoutputteeth

Package List:
1 x Servo
2 x Servo Arm
4 x Rubber Pad
2 x Spare Gear
2 x Pins
6 x Screws

Note:
All data are measured manually, and there are certain errors in the
