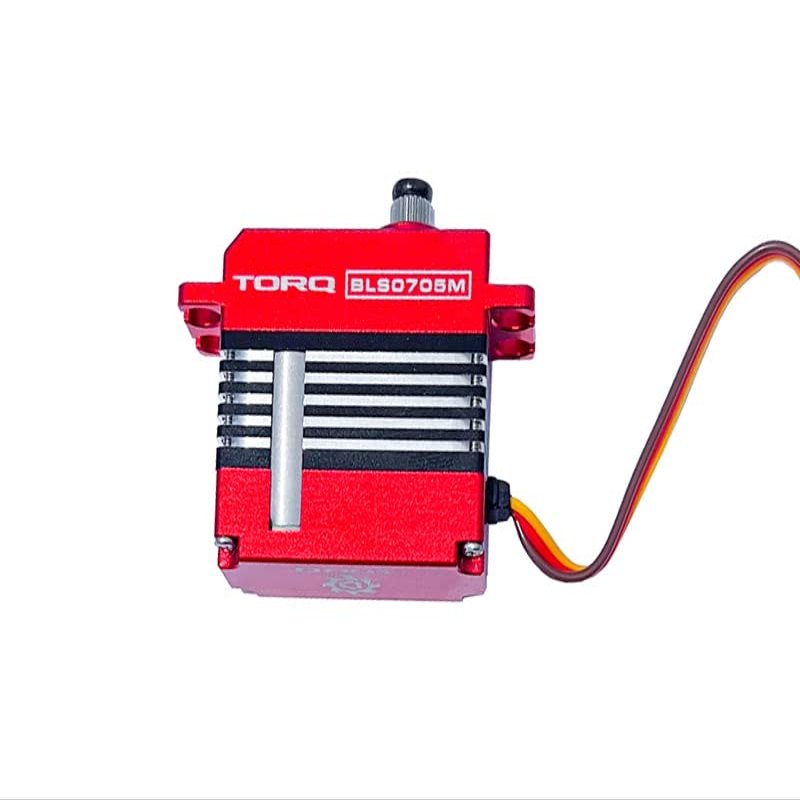

TORQ BLS0705M Mini HV 8.4V High Voltage Ready Brushless Cyclic/Rudder Servo Optimized for Remote Control Helicopter

Description

• This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but if you have FBL that can use with 760us cyclic servo, you can also use this servo as cyclic servo for 550-600 size.
• Features:
• Brushless Motor Technology for the Ultimate Power & Control
• Incredible Levels of Speed & Performance
• Ultra Precise, High Resolution Control
• Fully Replaceable Steel Gear Train for Maximum Strength
• Excellent Thermal Dissipation via Finned 6061 Aluminum Case
• 8.4V High Voltage Ready
• Optimized for Heli
• Dual Ball Bearing Construction

Speed:
0.05 sec / 60 @ 8.4V
0.06 sec / 60 @ 7.4V
0.07 sec / 60 @ 6.0V
Torque:
15Kg.cm / 208.31 oz in. @ 8.4V
13Kg.cm / 180.53 oz in. @ 7.4V
10Kg.cm / 138.87 oz. in. @ 6.0V
Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 760us / 560Hz
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V - 8.4V
