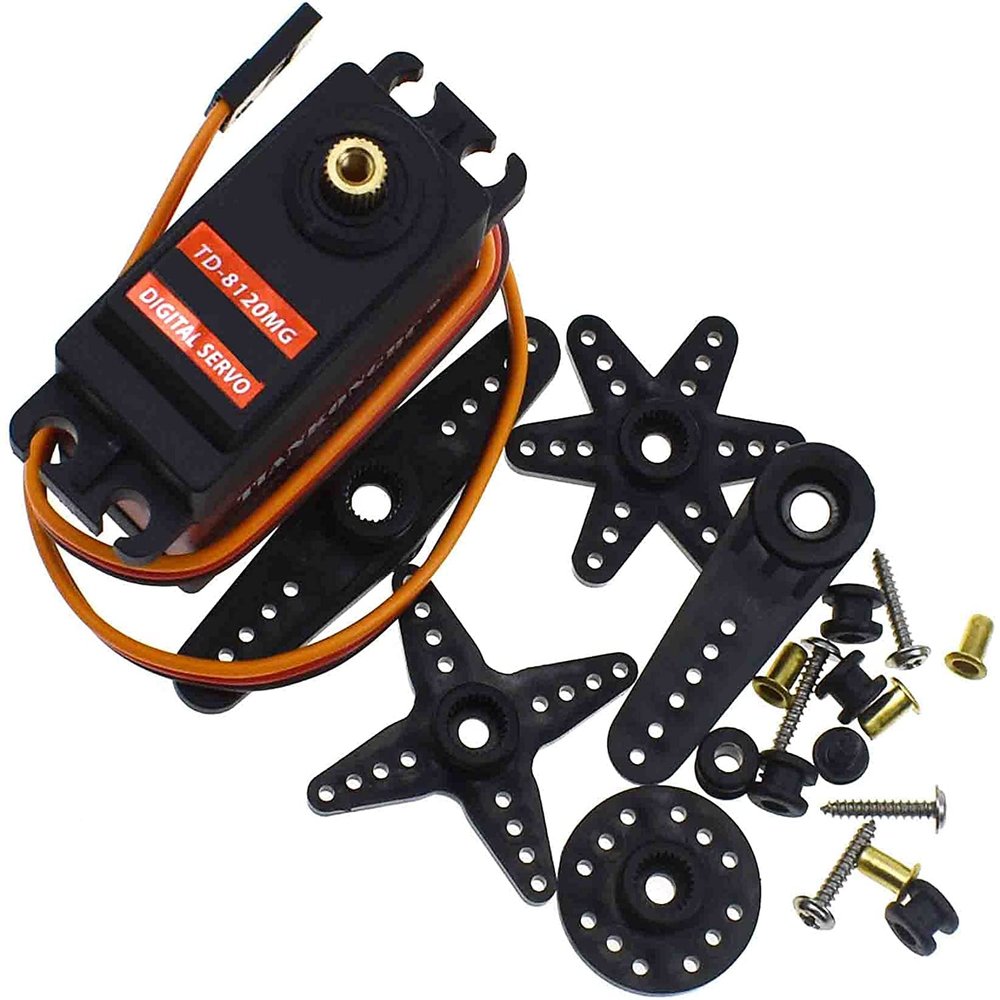

TD-8120MG 20KG Digital Servo Waterproof Large Torque Metal Gear (270 Degrees)

Description

• TD-8120MG 90-18/270/360 degree 20kg High Torque Metal Shell Steering Gear Waterproof Digital Servo Motor Servo
• Working voltage range:4.8-7.2V
• Control frequency: 50Hz
• Control signal: 0.5ms-2.5ms
• Control mode: PWM

TD-8120MG 90-18/270/360 degree 20kg High Torque Metal Shell Steering Gear Waterproof Digital Servo Motor Servo
Product description
Specification parameter
Storage Temperature Range:-30C?80C
Operating Temperature Range:-25C?70C
Temperature Range:-25C?70C
Humidity Range:65%10%
Gear type:5 Metal
angle:90-180 270 360
Bearing:2BB
Horn gear spline:25T OD:5.9mm
Horn type:Plastic, POM
Case:Engineering plastics(PBT)+Aluminum alloy
Motor:Carbon brush motor
Splash water resistance:No
Operat voltage:4.8V-7.2V
Noload speed:0.18sec/60-0.14sec/60
Runnig current:210mA-260mA
Peak stall torque:20.5kg.cm-22.8kg.cm
Stall current:2100mA10%-2700mA10%
Working voltage range:4.8-7.2V
Command signal:Pulse width modification
Amplifier type:Digital controller
Pulse width range:500?2500usec
Neutral position:1500usec
Running degree:1803(when 500?2500usec)
Deadband width:5 usec
Rotating direction:Counterclockwise (when 1000?2000usec)
