Hot Racing TD100X06 Aluminum 100mm Hd Big Bore Shocks (2)

Description

• Made by Hot Racing; Hot Racing is a United States based company; parts are sourced from Chinese producers
• All Hot Racing upgrade parts are direct replacements for stock components; additional parts are not required
• Hot Racing part number TD100X06; UPC 083745640250
• This item works with: Associated RC-10 B4.x, RC-10 T4.x, SC-10 2WD, SC-10 4x4; Axial Wraith 4WD Rock Racer RTR, XR10 Crawler; HPI Electric Blitz, Savage XS; Traxxas E-Maxx, Nitro Rustler, Nitro Stampede, Rustler VXL Velineon Brushless, Rustler XL-5, Slash 2WD all versions, Slash 4x4 all versions, Stampede 4x4 VXL, Stampede Electric, Stampede VXL, Stampede XL-5, T-Maxx 3.3 4909

Hot Racing 100mm big bore threaded body aluminum shocks for many 1/10th scale off-road vehicles using 100mm shocks. Some applications include, but are not limited to: the Associated SC10; HPI Blitz; Kyosho Ultima SC; TRA Bandit rear, E-Maxx, Nitro Rustler/Slash/Sport/Stampede rear, Rustler rear, Slash 2WD rear, Slash 4x4 rear, Stampede 2WD rear, Stampede 4x4 rear, T-Maxx; and and other similar vehicles
FEATURES:
- CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
- "Big Bore" threaded shock bodies
- CNC machined 11mm Delrin pistons
- 3.5mm stainless steel shock shafts
- Silver and blue anodized aluminum components
- Vented shock caps with bladder seals for consistent rebound dampening
- Threaded shock collars with o-ring to prevent unwanted movement
- Composite plastic lower shock ends with aluminum balls
- Fully assembled, just add shock oil and bleed

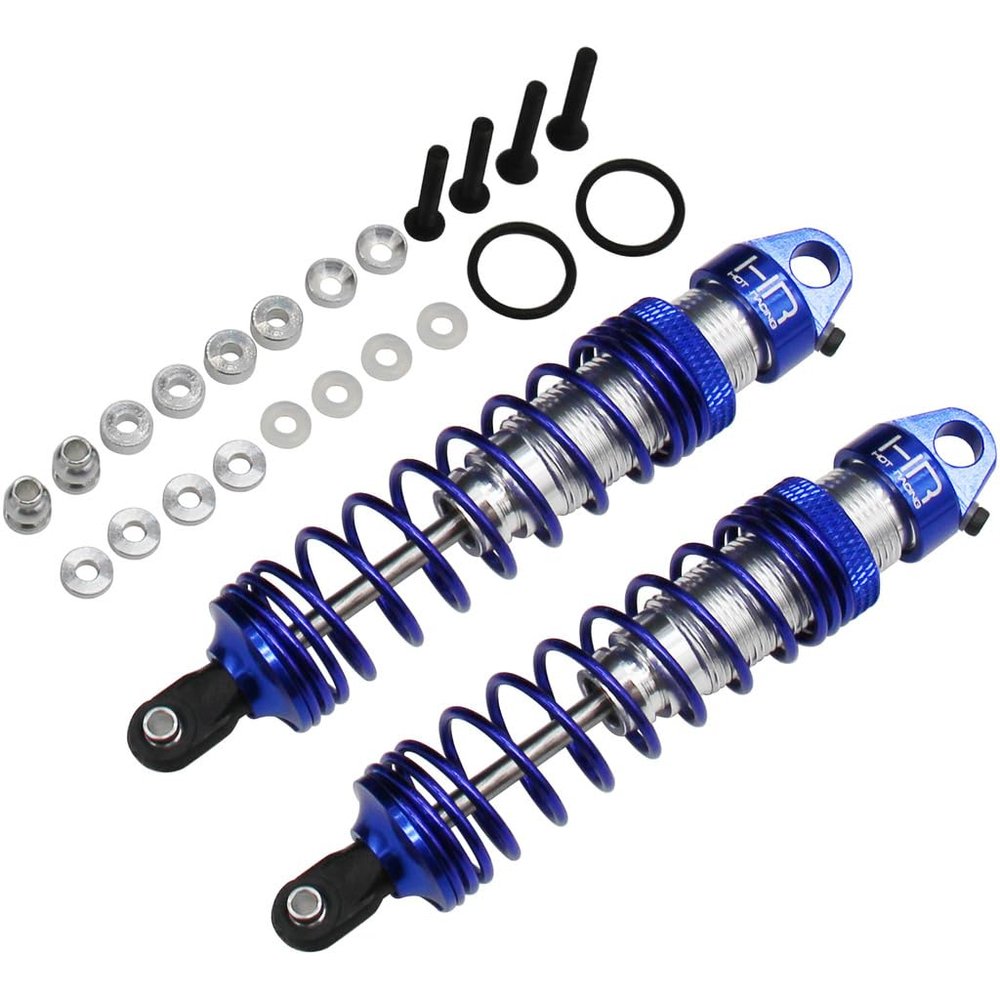

YOU WILL RECEIVE:
- Two (2) assembled shocks
- Two (2) M3x20mm flat head cap screws
- Two (2) M3x18mm button head cap screws
- Two (2) 3mm countersunk washers
- Two (2) 5.9 hollow balls
- Four (4) 1.5mm thick spacers
- Four (4) 3mm thick spacers
REQUIREMENTS:
- Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure
- Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
- Snap ring pliers when rebuilding lower seal
SPECIFICATIONS:
- Replaces TRA Big Bore XX-Long Shocks: 2662, 3762, 3762A, 7462X
- Extended length: 100mm
- Compressed length: 70mm
- Overall length: 110mm
- Spring: ~5.8lb/in, 1.54mm wire, 13 turn dual rate, 19.3mm OD, 69.5mm long
