Surpass Hobyy RC 3650 3250KV Brushless Motor and Waterproof 60A ESC Set for 1/10 RC Car Upgrade Parts

Description

• High protection Functions: all-weather operation The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
• Capacitor Thermal Protection: High quality ruby capacitors,capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.
• Profession:Powerful built-in BEC The ESC has a built-in BEC with a continuous current of 6A. The output voltages are switchable between 6V, 7.4V 8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
• Stability and Reliability: Adopt lnfineon mosfet chip,Intelligent freewheeling technology, greatly improved performance The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
• Efficent Cooling System: Adopt lnfineon mosfet chip,the integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat. These results an efficient heat dissipation system to ensure that the ESC is always in a good heat dissipation state

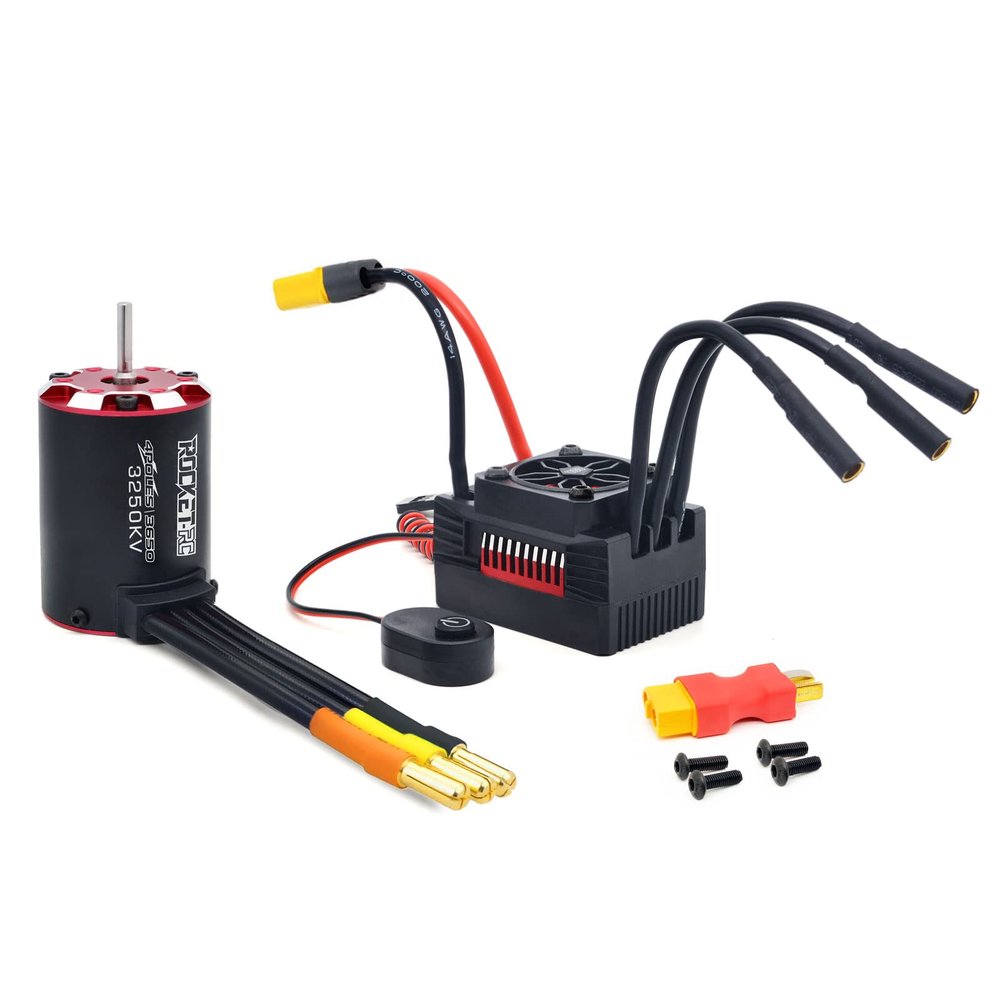

Surpass Hobby Supersonic 3650 brushless motor with 60A ESC combo set
Specification:
Item Type: 3650 3250KV Brushless Motor
Material: Aluminum Alloy + Copper + Plastic
Color: Black
Motor Model: 3650KV (RPM/Volt): 3250KV
Wattage: 900WMaximum
Voltage: 16V
Maximum Current: 56A
Maximum Speed: 50000
No Load Current: 2.9A
Number of Motor Poles: 4
Internal Resistance (): 0.0095
Motor Length: Approx. 50mm / 2.0in (Without Shaft)
Motor Diameter: Approx. 36mm / 1.4in
Shaft Diameter: Approx. 3.175mm / 0.13in
Shaft Length: Approx. 15mm / 0.6in
Gold Plated Plug: Approx. 4.0mm / 0.16in
60A ESC:
Continuous Current: 60A
Instantaneous Current: 360A
Motor Type: Non Inductive Brushless Motor
Internal Resistance: 0.0007ohm
Battery: on road :2-3S Lithium Battery / 4-9S NiMH
off -road/buggy/Monster : 2sLipo or 6 cells NiMH
BEC Output: 5.8V/5V (Switching Mode)
Product Size: Approx. 50x35x34mm / 2.0x1.38x1.34in
Plug Type: XT60 to T Plug Connector
Application: for 1/10 Remote Control Car (eg: for Tamiya / for Traxxas)
Package List:
1 x 3650 Brushless Motor
1 x 60A ESC
1 x XT60 to T Plug Connector
4 x Screw
2 x Manual
Note:
1. Due to manual measurement, please allow an error of 13mm. Thanks!
2. The monitor calibration is inconsistent, the color of the item shown in the photo may be slightly different from the actual object
3. Please unload the cooling fan water before using this ESC; clean and wipe dry as soon as possible after use to prevent the connector from rusting.
