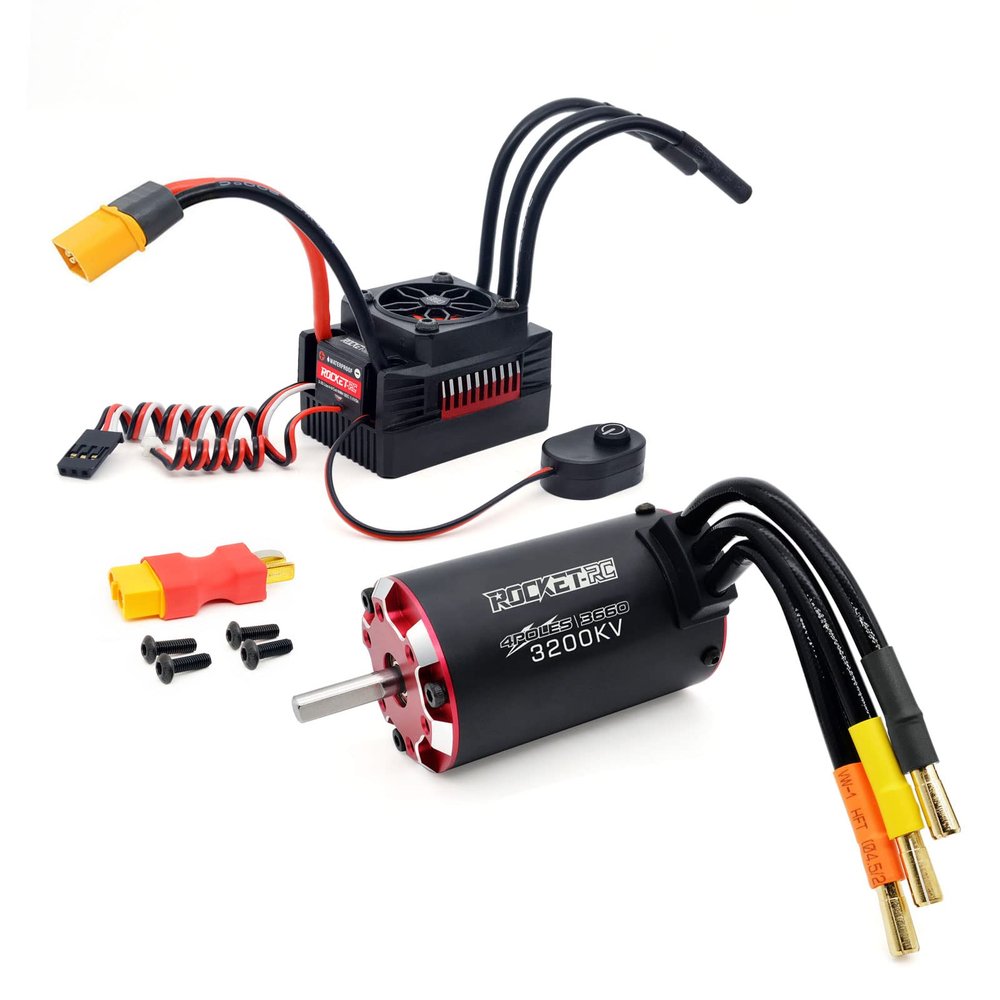

Surpass Hobby RC Brushless Motor,Rocket V2 Supersonic 3660 3200KV 4 Pole Brushless Motor Set with 60A ESC for 1/10 RC Car Upgrade Parts

Description

• 60A ESC and 1/10 RC Brushless Motor ComboThis waterproof and dustproof 60A brushless ESC with XT60 to T-plug connector makes it easier for you to install, Fit for 1/10 RC car.RC Motor adopts precision IP65 waterproof and dustproof design,maximum power conversion, long-lasting performance.
• Sensored and Removable Structure DesignThe brushless motor has built in temperature sensor and interface, which can protect the motor from overheating with 60A ESC.The removable structure design is convenient for cleaning and maintenance, which can effectively extend the service life of the motor and improve work efficiency.
• Easy to Program and CleanBuilt-in switch mode BEC 5.8V/5A for high torque and high voltage servos, with strong current resistance, easy to program, and compatible with pocket program cards, It adopts detachable structure design for easy cleaning and maintenance.
• ProfessionPole-4 rotor design, 5.00mm shaft diameter,with strong torque and stable output power, High hardness aluminum CNC case, high temperature resistant copper wires , 0.2mm stator.ultra-durable sealed bearings, super high current sillicon wires, low friction, low noise, durable.
• Premium MaterialHigh balance explosion-proof rotor, high accuracy and high speed, dynamic balance control within 10mg. excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance.

Specification:
Item Type: 3660 Brushless Motor
Material: Aluminum Alloy + Copper + Plastic
Color: Black
Motor Model: 3660KV (RPM/Volt): 3200KV
Wattage: 1200W
Maximum Voltage: 15V
Maximum Current: 80A
Maximum Speed: 50000
No Load Current: 3.8A
Number of Motor Poles: 4
Internal Resistance (): 0.0075
Motor Length: Approx. 60mm / 2.36in (Without Shaft)
Motor Diameter: Approx. 36mm / 1.4in
Shaft Diameter: Approx. 5mm / 0.196in
Shaft Length: Approx. 17mm / 0.66in
Gold Plated Plug: Approx. 4.0mm / 0.16in
60A ESC:
Continuous Current: 60A
Instantaneous Current: 360A
Motor Type: Non Inductive Brushless Motor
Internal Resistance: 0.0007ohm
Battery:
on road :2s Lipo or 6cells NiMH
off -road/buggy/Monster : 2sLipo or 6 cells NiMH

BEC Output: 5.8V/5V (Switching Mode)
Product Size: Approx. 50x35x34mm / 2.0x1.38x1.34in
Plug Type: XT60 to T Plug Connector
Application: for 1/10 Remote Control Car (eg: for Tamiya / for Traxxas)
Package List:1 x 3660 Brushless Motor
1 x 60A ESC
1 x XT60 to T Plug Connector
4 x Screw
2 x Manual
Note:1. Due to manual measurement, please allow an error of 13mm. Thanks!2. The monitor calibration is inconsistent, the color of the item shown in the photo may be slightly different from the actual object3. Please unload the cooling fan water before using this ESC; clean and wipe dry as soon as possible after use to prevent the connector from rusting.
4.Genuine Surpass Hobyy RC products,exquisite workmanship & durable.buy with confidence,perfect after-sales service, manufacturer directly supply products.
Any question for the product, pls not hesitated to contact us.
