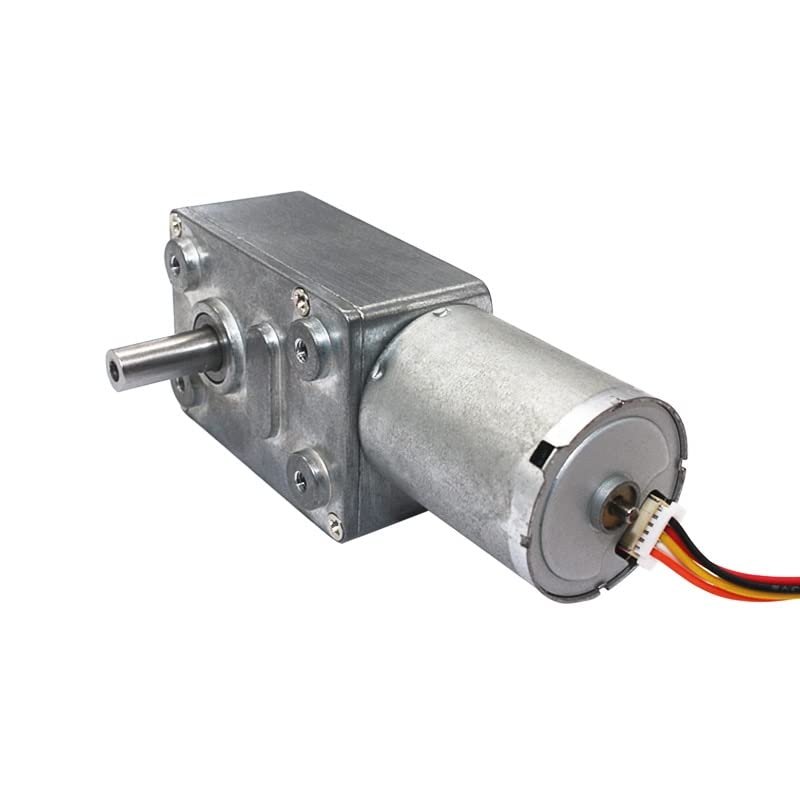

Slow Speed Silent Long Life JGY370 2430D Brushless DC Turbo Worm Gear Motor| | - - (Speed(RPM): 10, Voltage(V): 12V)

Description

• Speed(RPM): 10, Voltage(V): 12V
• Note:
• *Brushless Gear motors are suited for applications that require "continuous (constant) operation.
• *Gear motor performance is highly influenced by the motor's ability to dissipate heat and avoid thermal overload,
• which can damage internal components and even demagnetize the magnets. Proper sizing and selection are the

Slow Speed Silent Long Life JGY370-2430D
Brushless DC Turbo Worm Gear Motor
Features:
Note:
*Brushless Gear motors are best suited for applications that require "continuous (constant) operation.
*Gear motor performance is highly influenced by the motor's ability to dissipate heat and avoid thermal overload,
which can damage internal components and even demagnetize the magnets. Proper sizing and selection are the
first step to ensuring that the motor is not at risk of thermal overload within the parameters of the application.
Voltage: DC12V, DC24V
No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 100rpm, 150rpm
Error: 10%
Output Shaft Diameter: 6mm D-type
Output Shaft Length: 14mm
Gearbox Size:46*32*25mm
Gearbox Size Detail, please see the table
Wiring:
Red Wire - positive power supply of motor(+)
Black Wire - negative power supply of motor(-)
Yellow Wire - FG output
Orange Wire - control CW or CCW of motor(CCW: Orange Wire do not connect.
CW: Orange Wire connect negative power supply of motor(-))
White Wire - control speed of motor (by PWM signal control speed)
Notice:
For it is a brushless motor, the wires can't be connected wrong, or it will be burnt.
CW: Red wire --> positive power supply of motor(+). Black wire and White wire ---> negative power supply of motor(-)
CCW: Red wire --> positive power supply of motor(+). Black wire, White wire and Orange Wire ---> negative power supply of motor(-)
Parameters:
Product Descriptions:
