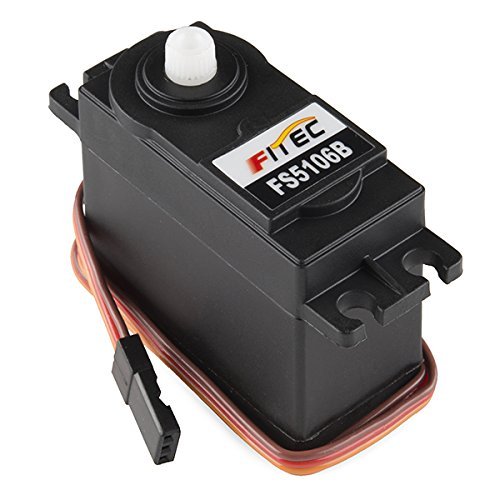

Servo - Generic High Torque (Standard Size)

Description

• Here is a powerful, low-cost, reliable servo for all your mechatronic needs
• This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60
• This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.
• Check description below for links to instructions and datasheets!
• Skill Level: Component or Part

Description: Here is a powerful, low-cost, reliable servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60
This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.

Includes: 1x FS5106B High Torque Servo 1x Double Arm Horn 1x Circle Horn 1x Four Point Horn 1x Six Point Horn 2x 3x10mm Phillips Screw 4x 2x13mm Mounting Phillips Screw 4x Rubber Grommets 4x Brass Eyelets

Features: Voltage: 4.8-6.0 Volts Torque: 69.56/83.47 oz-in. (4.8/6.0V) Speed: 0.18/0.16 sec/60 (4.8/6.0V) Direction: Counterclockwise 1000-2000usec Rotation: 180 Dual Ball Bearing Nylon Gears 25T Spline (Futaba 3F)* 40.8 x 20.1 x 38mm Wire Length: 300mm Weight: 40g

Datasheets: Datasheet - http://www.electronics123.net/amazon/datasheet/FS5106B%20specs.pdf Product Video - https://www.sparkfun.com/videos#all/jCjJzu480NM/18
