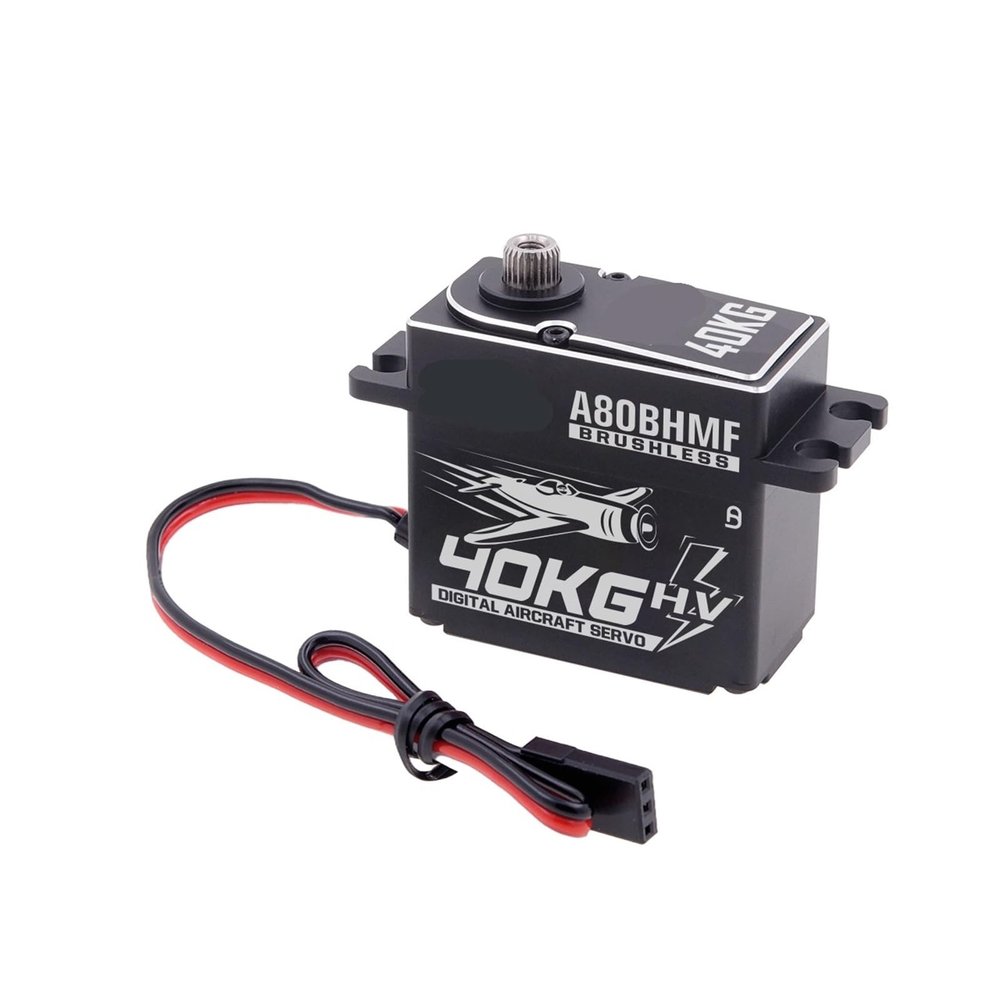

Servo A80BHMF 40 kg Programmable Steel + Gear Digital Brushless Standard Servo for 30-200CC(A80BHMF 40kg Servo)

Description

• Servo Gears

Servo Gears
Specification:
80BHMF Series
Working voltage: 4.8-8.4V
Operation speed: 0.140 sec/60 @ 4.8V
Operation speed: 0.120 sec/60@6.0V
Operation speed: 0.100 sec/60@7.4V
Operation speed: 0.085 sec/60@8.4V
Stall Torque: 27 kg-cm (375 oz-in) @ 4.8V
Stall Torque: 31 kg-cm (430 oz-in) @ 6.0V
Stall Torque: 36 kg-cm (500 oz-in) @ 7.4V
Stall Torque: 40 kg-cm (556 oz-in) @ 8.4V
Control system: PWM, 1520uS/333hz
Deadband: 2 microseconds
Mechanical angle: 220
Operating range: 18010 (500 to 2500uSec)
Speaker gear spline: 25T-5.92mm
Bearings: Three ball bearings
Case material: AL6061T6
Equipment: Strong steel +
Motor: Brushless
Dimensions: 40*20*37.5 mm (1.57 x 0.78 x 1.46 in)
- Weight: 79 g
Connection wire: TYU 300mm / 22AWG
