SEQURE Brushless 4in1 ESC 65A 2S-6S for FPV Drones Racing Freestyle

Description

• SEQURE Blueson A1 ESC adopts AT32F421 32-bit processor. PWM frequency supports 8 KHz- 96 KHz. Continuous current 65A, peak current up to 120A.
• Supports digital protocol DShot600/300/150 and is compatible with Oneshot/MultiShot/PWM protocol.
• 20*20mm installation hole spacing for FPV drones.19g lightweight, easy installation without adding extra weights to your drones.
• ESC reserves a large area of solder pad to effectively reduce the difficulty of soldering.
• High-quality PCB featuring extra-thick copper layers increases over-current capability, effectively dissipating heat.

Specification:
Model: Blueson A1
Processor: AT32F421
Firmware Version: AM32
PWM Frequency: 8KHz-96KHz
Working Voltage: 2-6SLipo / LiHV
Continuous Current: 65A
Peak Current: 120A
Support Protocol: Dshot600/300/150, Oneshot, Multishot, PWM
Telemetry Return: YES
Galvanometer: YES
BEC: NO
Mounting Hole Spacing: 20*20mm, 4mm/M3
Product Size: 42.5*36*7mm(L*W*H)
Product Weight: 19g

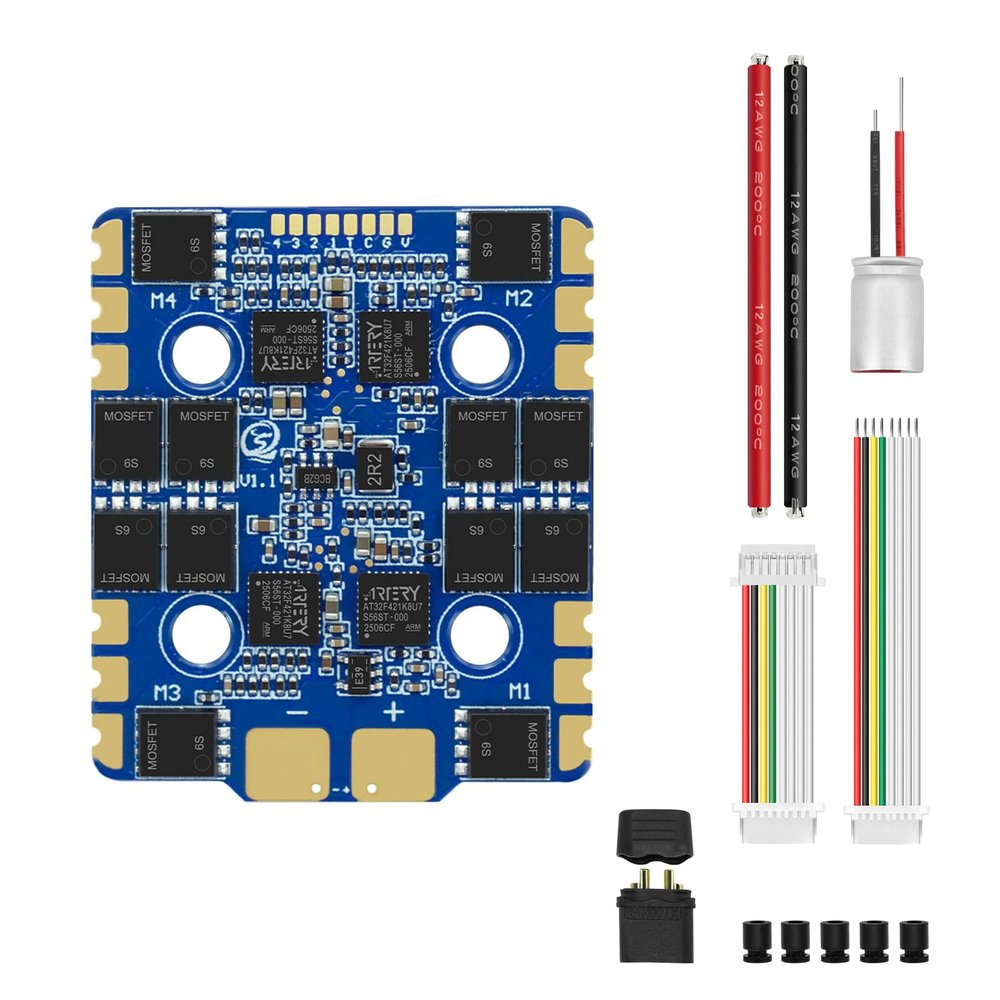

Package Includes:
SEQURE Blueson A1 4IN1 ESC 1
30AWG 40mm reverse double plug SH1.0-8P cable 1
30AWG 60mm single plug SH1.0-8P cable 1
12AWG 100mm power cable (black/red)2
XT60H-M black male connector1
35V 680UF solid capacitor1
M3*8mm shock absorbing washer(black) 5
