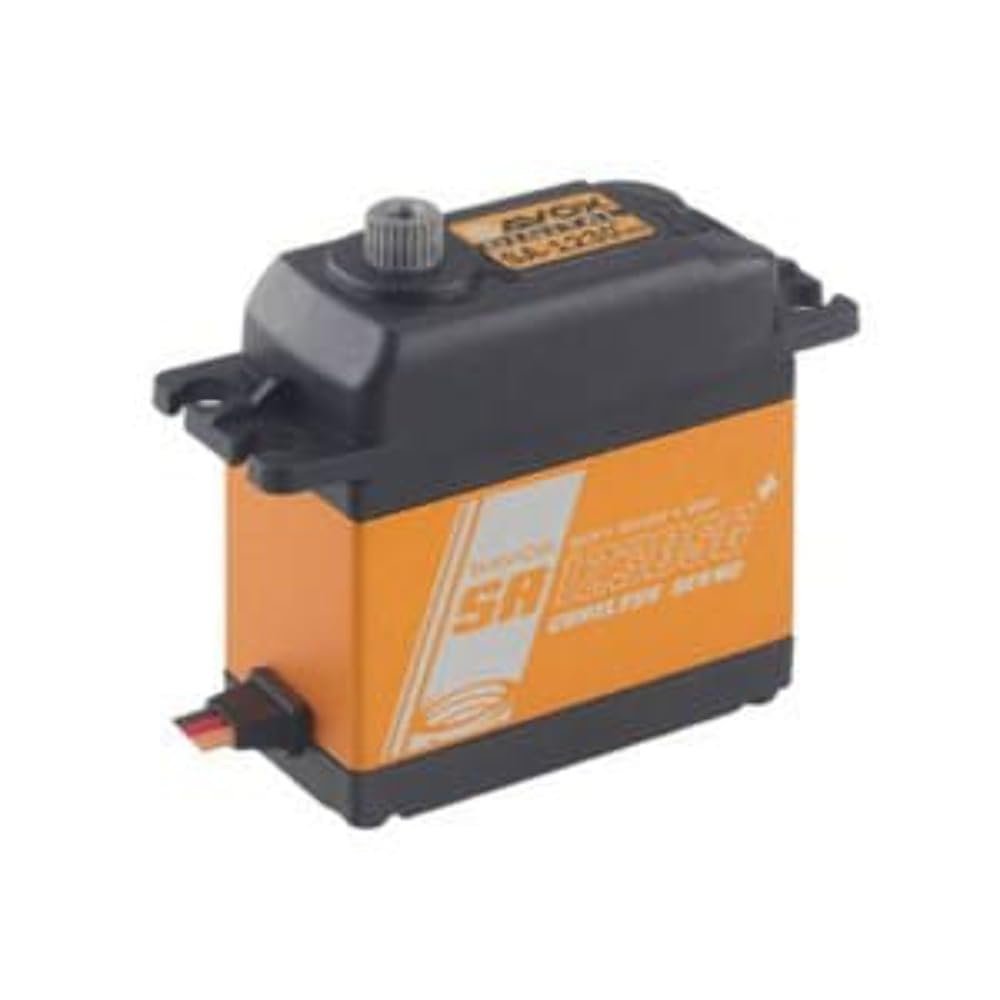

Savox - SA1230SGP - Coreless Digital Servo w/Soft Start, 0.16/500 @6v

Description

• Torque @ 4.8v - 30.0kg/416.6oz-in
• Torque @ 6v - 36.0kg/499.9oz-in
• Speed @ 4.8v - 0.20 sec/60 deg
• Speed @ 6v - 0.16 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9; Weight: 79g

The Savox SA-1230SGP Plus Monster Torque Steel-Gear digital servo is ideal for those requiring extra torque without using a high voltage power source. "Plus" models feature Soft Start and Sanwa SSR CompatibilityFeatures: Extremely strong unique steel gears ensure long-life and durability. Ideal for steering on rock crawlers, monster trucks, and large scale aircraft. Slightly taller case design. Specifications: Torque @ 4.8v - 30.0kg/416.6oz-in Torque @ 6v - 36.0kg/499.9oz-in Speed @ 4.8v - 0.20 sec/60 deg Speed @ 6v - 0.16 sec/60 deg Dimensions L x W x H (mm): 40.3 x 20.2 x 44.9 Weight: 79gOperating Temperature: 14 - 122F (-10 - 50C) Running Current (no load): 180mA @4.8V, 250mA @6.0V Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V Idle Current: 5mA @4.8V, 5mA @6.0V Wire Length: 200 +/- 5mm Output Gear Spline: 25 Tooth Bearings: 2BB Operating Travel: 100 (1000 2000 second) Neutral Position: 1500 second Pulse Width Range: 800 2200 second Maximum Travel: Appx 130 (900 2100 second) Refresh Rate: 333 Hz Motor Type: Coreless
