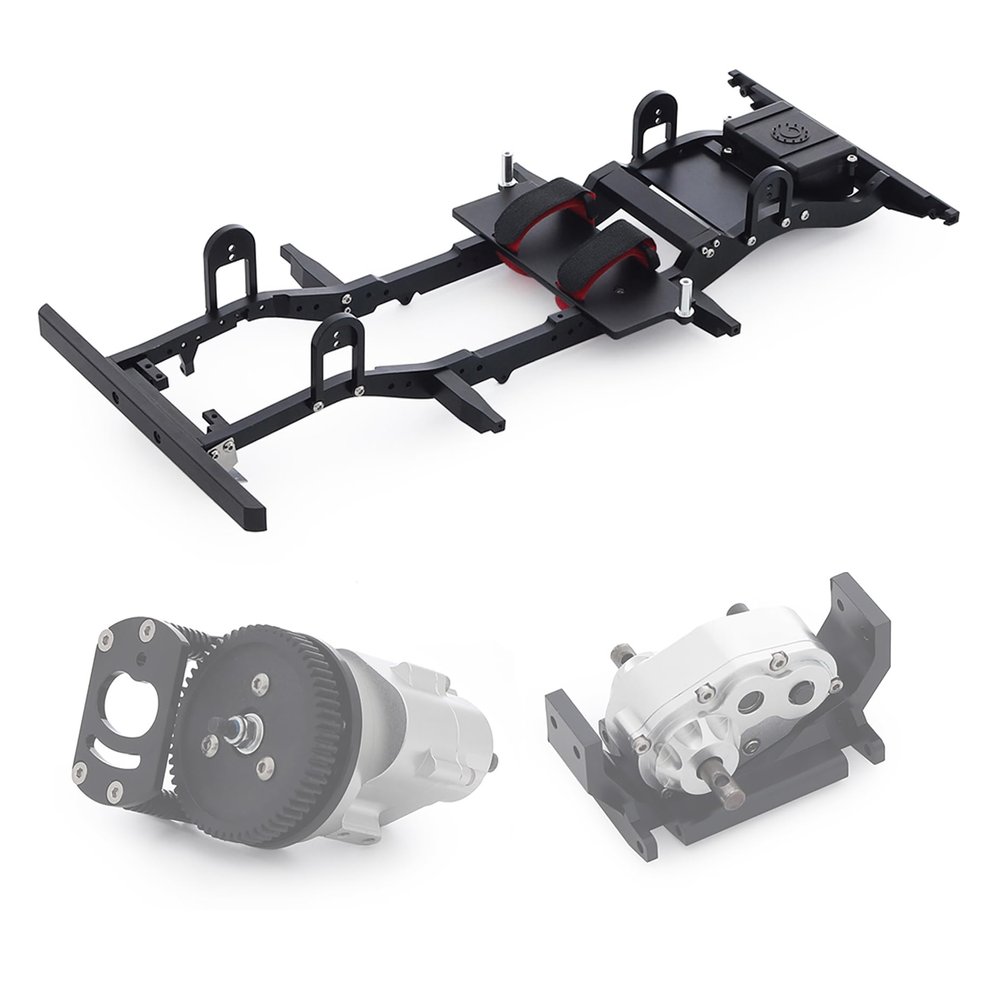

RXZIXYL 1/10 Scale Metal Chassis Frame with Transmission Transfer Case for RC Crawler Truck RC4WD Gelande II FJ40 G2 D90 TF2 Defender (Chassis)

Description

• High-Quality CNC Machined Construction: The gearbox and its components are CNC machined with precision from high-quality materials, ensuring durability and reliability. The use of aluminum alloy for the housing provides strength while maintaining a lightweight design. The smooth anodized black finish not only enhances the appearance but also provides additional protection against wear and corrosion, extending the lifespan of the gearbox.
• Smooth and Efficient Transmission System: The 2-speed transmission system offers versatility in driving performance, allowing you to switch between different gear ratios for varying terrain and driving conditions. The smooth operation of the gearbox ensures efficient power transfer and enhanced control over your 1/10 RC crawler truck. The hardened steel internal gears and heat-treated steel shaft coupling provide strength and durability, ensuring long-lasting performance.
• Two Variants for Different Preferences: The product is available in two variants: Chassis A (with Transmission/Transfer Case) and Chassis B (No Transmission/Transfer Case). This allows you to choose the option that best suits your preferences and specific needs for your RC crawler. Both variants are constructed from aluminum alloy, ensuring lightweight yet robust chassis frames.
• Well-Designed Transfer Case: The transfer case features an aluminum alloy housing and hardened steel internal gears, providing durability and efficient power transmission. The gear ratio of 1.47:1 enhances torque and crawling capabilities, while the 8-bearing design ensures smooth operation. The inclusion of a skid plate made from aluminum alloy adds protection to the transfer case, safeguarding it against impacts and rough terrains.
• Durable and Functional Transmission: The transmission is designed for reliability and ease of use. It features an aluminum alloy housing, nylon 60T spur gears, brass 19T pinion gears, and hardened steel internal gears. The clockable motor mounting with 12 different positions allows for flexible motor installation and gearing options. The gear ratio of 5.61:1 optimizes torque and speed for crawling applications. The slipper clutch design provides consistent power delivery and protects the drivetrain from excessive shocks and impacts.

"
Metal RC Car Chassis Frame Kit

CNC Machined

Smooth Anodized Black Finish

Smooth transmission system, fit 1/10 RC Crawler Truck

Item: Chassis A(with Transmission/Transfer Case)

Material: Aluminum Alloy(Radio Box: Plastic)

Length: 424mm/16.69in

Maximum width: 195mm/7.68in

Weight: About 0.88kg

Final Drive Ratio: 8.23:1

Requires Assembly

Item: Chassis B (No Transmission/Transfer Case)

Material: Aluminum Alloy(Radio Box: Plastic)

Length: 424mm/16.69in

Maximum width: 195mm/7.68in

Weight: About 0.54kg

Requires Assembly

Item: Shaft Coupling

Material: Heat Treated Steel

Weight: 22g

Item: Transfer Case

Material:

Housing: Aluminum Alloy

Internal Gears: Hardened Steel

Skid Plate: Aluminum Alloy

Gear Ratio: 1.47:1

8 Bearing design

Output Shaft Diameter: 4.8mm

Weight: 117g

Item: Transmission

Material:

Housing: Aluminum Alloy

60T Spur Gears: Nylon

19T Pinion Gears: Brass

Internal Gears: Hardened Steel

Clockable Motor Mounting (12 different positions)

Single Speed

Gear Ratio: 5.61:1

Slipper Clutch Design

Output Shaft Diameter: 4.8mm

Weight: 200g
"
