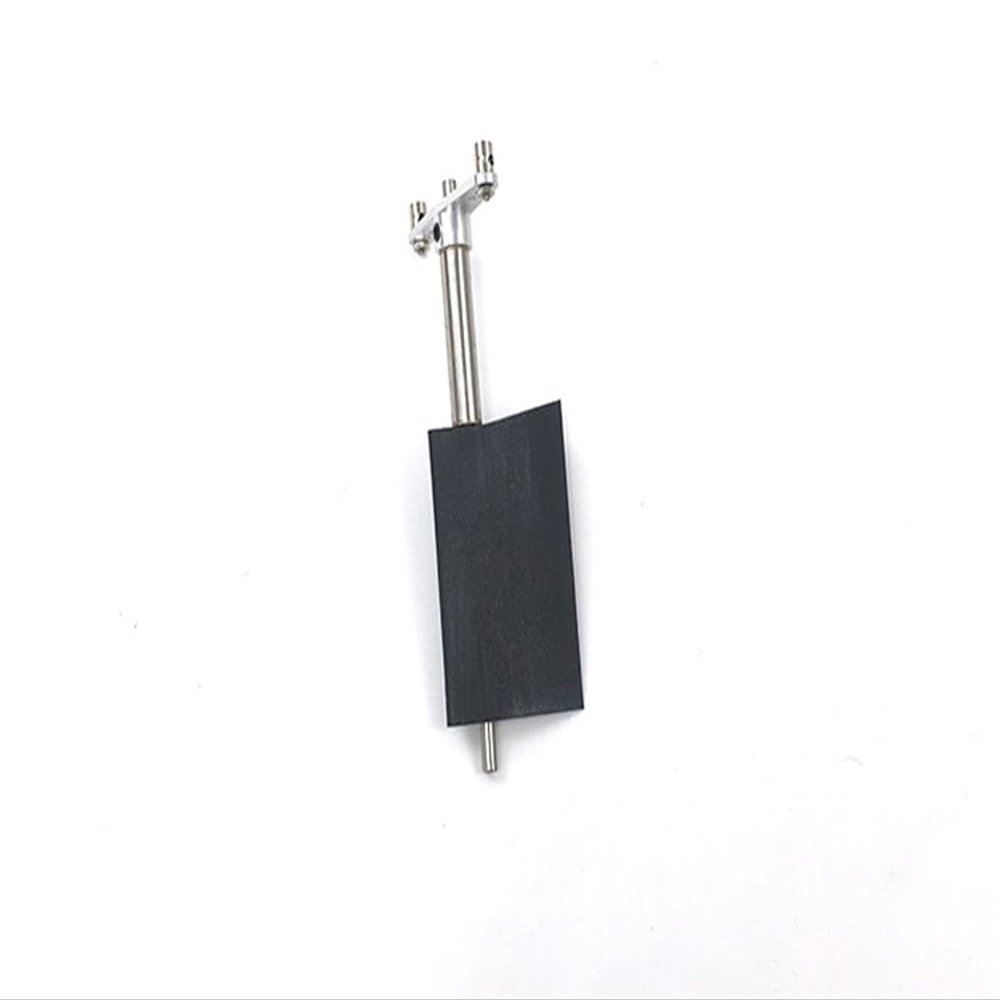

Reinforced Nylon Streamlined Rudder with Stainless Steel and Aluminum Components for RC Boat(Type B)

Description

• [Reinforced nylon material is strong and durable] Made of reinforced nylon material, it has high surface hardness and is not easily deformed by collision, ensuring good handling performance.
• [Stainless steel and aluminum alloy sleeve] The sleeve and rudder shaft are made of 304 stainless steel, and the rocker arm is made of 6061 aluminum alloy, CNC manufactured, high strength and corrosion resistance.
• [Streamlined design with low resistance] Streamlined design, low resistance, good steering performance, and improved sailing speed and stability of the ship model.
• [Multiple specifications for wide adaptability] Various specifications are available, from A to F, suitable for ship models of different sizes from 50 to 160CM, with rudder holes of 8mm or 12mm to meet diverse needs.
• [Easy to install and adjust] A set includes the main rudder surface, rudder shaft, shaft sleeve, rocker arm, pull rod positioning bean and wrench. It is easy to install and the rudder surface can be quickly disassembled and assembled.

Product Name: Reinforced Nylon Rudder

Material: Reinforced nylon + stainless steel + aluminum alloy

Function: used for various ship models, unmanned boats, net pulling boats, steering

Quantity: 1PC

A set includes (main rudder surface X1 + rudder shaft X1 + shaft sleeve X1 + rocker arm X1 pull rod positioning beans X2 + wrench)

The main rudder surface is made of nylon and glass fiber molded in one piece, with high surface hardness, not easy to deform due to collision, streamlined body design, low resistance and good steering
The shaft sleeve and rudder shaft are made of 304 stainless steel to support use in fresh water and sea water without corrosion and rust.
The steering shaft sleeve adopts 62 brass machined bearing, which has high wear resistance and solves the problem of traditional bearing steering getting rusted and stuck after long-term use.
The rocker arm is made of 6061 aluminum alloy CNC machine tool, with a hard texture, bright anodized surface, high strength, high torque resistance and not easy to deform.

Note: The adjuster on the rocker arm can be equipped with a 1.5-2mm pull rod. When installing the M2 small nut on the adjuster, add some screw glue to prevent slipping and prevent it from falling off easily.

A type rudder: rudder surface size total height 52mm width 32mm suitable for 50-90CM boats rudder installation height should be no less than 50mm rudder hole opening 8mm
Type B rudder: The rudder surface size is 62mm in height and 37mm in width. It is suitable for ships with a rudder height of 90-120CM. The installation position should be at least 58mm. The rudder hole should be 8mm.
C type rudder: rudder surface size: 75mm in height and 48mm in width, suitable for ships with a rudder height of 110-130CM. The installation height of the rudder should be no less than 70mm. The rudder hole should be 8mm.
D type rudder: rudder surface size: total height 90mm width 57mm
