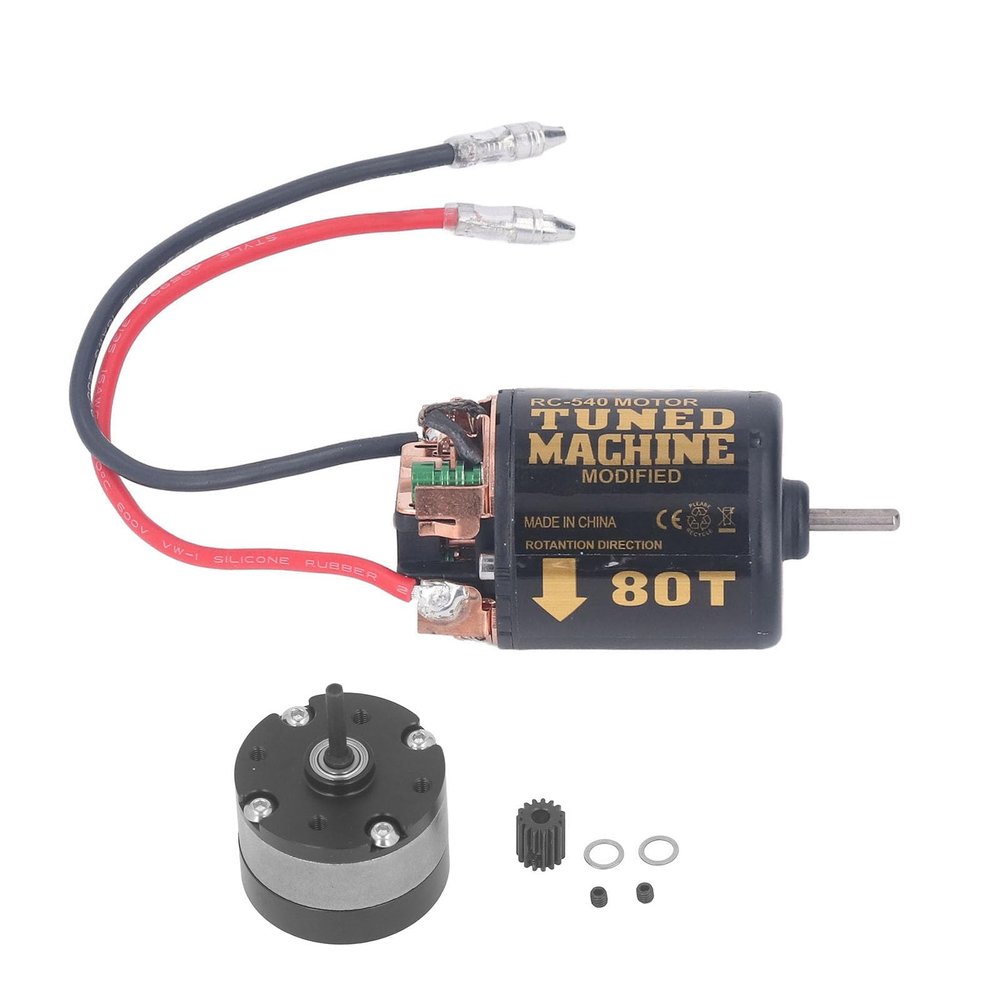

RC Car Motor Mount 540 Brushed Motor with 1/3 Reduction Planetary 15T Gear for 1/10 RC Crawler Car (80T)

Description

• High Purity Copper Winding: This RC car motor mount boasts high purity copper winding, ensuring maximum efficiency. With a high strength magnet, low friction, and low noise level, it can work for extended periods, and the external carbon brush is replaceable.
• Accurate Design for Optimal Energy Conversion: Featuring a balanced rotor, this motor mount ensures a stable transition of energy for optimal conversion. Its balance also enhances reliability and maximum speed, making it ideal for high performance racing.
• Powerful 540 Brushed Motor: With a circuit design, this 540 brushed motor boasts high anti interference performance, twice the bearing power, low heat output, and high power. Its dual directional bearing and powerful magnet ensure stable performance.
• Sensitive Power Distribution: With a sensitive power distribution system and the ability to adjust motor rotation speed, this motor mount offers a stable performance. It provides a stable vehicle start up, reduces shaking, and prevents the car from stalling during start up.
• Convenient Installation: Easily installed and removed, this 1/3 reduction planetary effectively the motor's body, and increasing its high torque output.

Spec:
Item Type: RC Car Motor Mount
Material: Iron, copper
Weight: Approx. 276g/9.7oz
540 Brushed Motor:
Length: Approx. 53mm/2.1in (without shaft)
Diameter: Approx. 36mm/1.4in
Shaft Length: Approx. 12.5mm/0.5in
Axle Diameter: Approx. 3.175mm/0.1in
1/3 Reduction Planetary :
Deceleration Ratio: 1:4.2
Total Diameter: Approx. 36mm/1.4in
Total Length: Approx. 44.5mm/1.8in
Shaft Length: Approx. 15mm/0.6in
Axle Diameter: Approx. 3.175mm/0.1in
15T Gear:
Diameter: Approx. 8.3mm/0.3in
Length: Approx. 10mm/0.4in
Aperture: Approx. 3.175mm/0.1in
Application: Suitable for Tamiya 1/14 tractors 1/10 off road crawler car DIY modifications

How to Use:
Motor: Weld the red line to the positive electrode and the black line to the negative electrode, and install the ESC (not included) of the motor to the car after the power can be used.

Packing list:
1 x 540 Brushed Motor
1 x 1/3 Reduction Planetary
1 x 15T Gear
2 x Gasket
2 x Machine Screw

Note:
1. Due to manual measurement, 1 to 3mm error is allowed, thank you!
2. The picture may not reflect the actual color of the item due to differences between different displays.
3. If the motor steering is not correct, please exchange the two motor lines. Motor lines do not distinguish between positive and negative poles.
