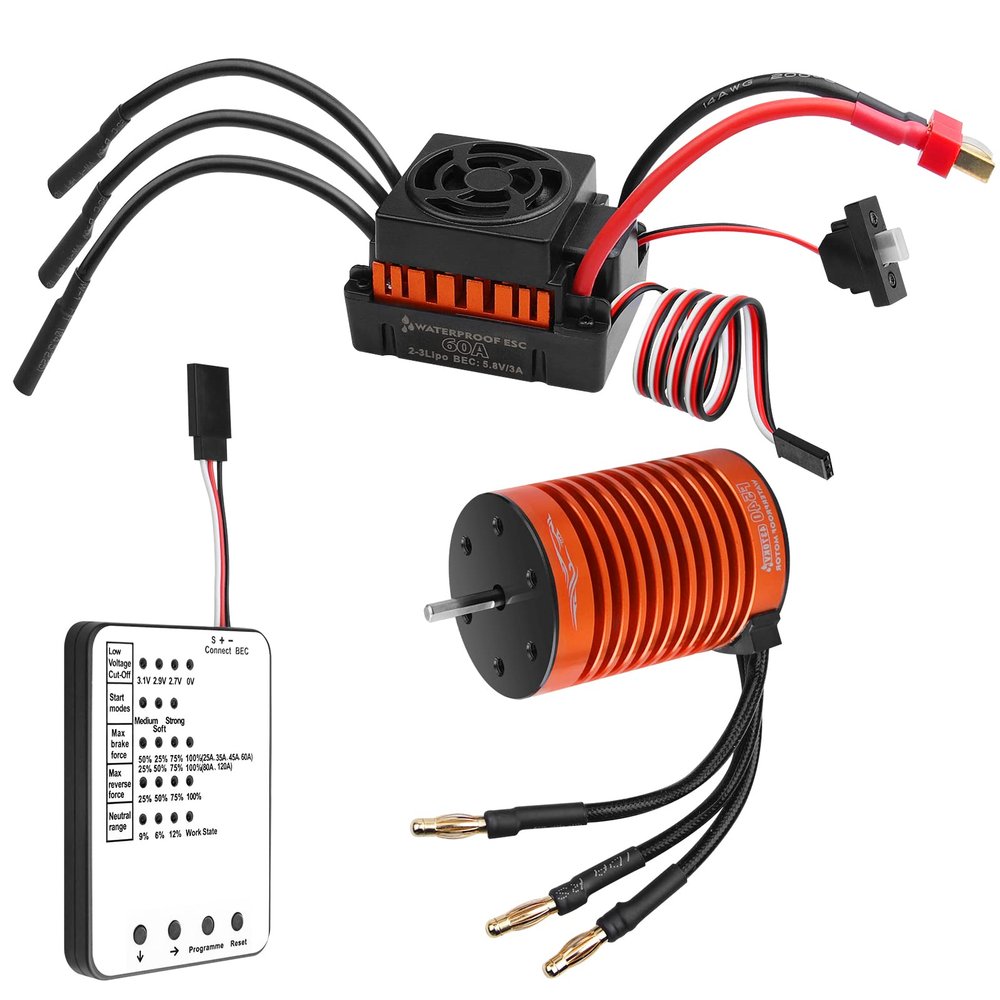

RC Motor & ESC Combo Set,1:10 F540 4370KV Brushless Motor and 60A ESC with Electric Speed Controller Program Card for 1/10 RC Off Road Car Trucks

Description

• 1/10 Scale RC Car Motor and ESC Combo: Complete F540 4370KV sensorless brushless motor and 60A brushless ESC with ESC programming card, IP65 waterproof level and dustproof for all weather races. You can use them together or separately according to your needs
• Exquisite Workmanship and High Quality Motor: Universal fit motor, exquisite workmanship, which is 4 poles 12 slot Hi-torque motor design, CNC machined 6061 T6 billet aluminum heatsink can, highPurity copper windings maximizes eficiency and precision balanced rotor, smoothness for best reliability and maximum RPM
• Profession Brushless ESC: The 60A Brushless ESC is universal fit most 1/10 scale rc car. with excellent start-up,acceleration and linearity features, strong resistant current capability. Notice: the 60A ESC is best to use 2S battery, please do not use this 60A ESC together with 3S battery or above 3S battery to avoid short circuit!
• With ESC Programmer: The Program card is used to control braking force. the max brake force: 25A, 45A, 60A is 50%, 25%, 75%, 100% (default 50%); and 80A, 120A is 25%, 50%, 75%, 100% (default 25%). The maximum reversing force is 25%, 50%, 75%, 100% (default 25%)
• Multiple Protection: The motor and esc combo with multiple protection,such as low voltage cut-off protection for lithium or nickel battery,over-heat protection, throttle signal loss protection and motor blocked protection

Features:

F540 Brushless Motor:
CNCMachined 6061T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
Precision balanced rotor, smoothness for best reliability and maximum RPM
Universal fit, fits most of 1/10 rc cars
60A Waterproof ESC:
Specially designed for RC car, water-proof and dust-proof for all-weather races.
Excellent start-up, acceleration and linearity features.
The strong resistant current capability, excellent heat dissipation.
Multiple protection features, widely compatible with for 1/10 RC car
Notice
This 60A ESC is best to use 2S battery, please do not use this 60A ESC together with 3S Battery or above 3S battery to avoid short circuit!!

Specifications:
Motor:
Watts: 900W
Max voltage: <12V
Max Amps: 75A
KV(RPM/Volt): 4370KV
Max RPM: 50000
Plug type: 4mm golden banana plug
Shaft length: 15mm
Shaft diameter: 3.175mm
Diameter: 36mm
Length: 50mm
Weight: 180g

ESC:
Cont/Burst Current: 60A/320A
Motor Type: Sensorless brushless motor
Suitable brushless motor: 9T
Resistance: 0.0007ohm
Battery: 2S Lipo/ 4-6cells NiMH
BEC Output: 5.8V/3A(switch mode)
Diamension:50 X 35 X 36mm (1.97 x 1.38 x 1.38in)

Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits"Beep-Beep"tone.
6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep"tone.
7. The ESC is workable.
8. please read product manual(ESC)

Package
1 X F540 4370KV Brushless Motor
1 X 60A ESC
1 X Program card
2 X product manual
