Description
- The diameter of the transmission shaft is 5mm stainless steel shaft, equipped with 2 high-speed ball bearings.
- The main body of the injector is made of 3.5mm thick plastic. The base is 3mm, which can accommodate motors with diameters up to 44mm.
- The tail of the injector is equipped with an automatic water inlet to provide electric water cooling to the motor.
- The aluminum alloy elastic connector reduces motor vibration and has a universal function, which effectively solves the problem of different cores between the transmission shaft and the motor shaft.
- The jet propeller has three blades. It is fixed with a propeller fork and a self-locking nut to prevent slippage at high speeds, making it easy to repair and replace the propeller.
The diameter of the transmission shaft is 5mm stainless steel shaft, equipped with 2 high-speed ball bearings.
The shaft sleeve is made of thickened stainless steel. Outer diameter 11mm
The main body of the injector is made of 3.5mm thick plastic. The base is 3mm.
The tail of the injector is equipped with an automatic water inlet to provide electric water cooling to the motor.

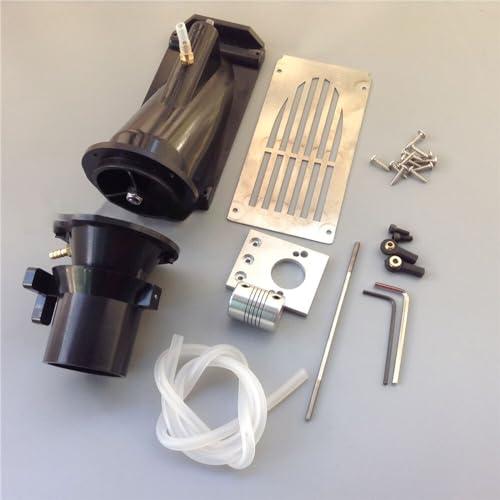

Injector set with metal water-cooled motor mount.
The aluminum alloy elastic connector reduces motor vibration and has a universal function, which effectively solves the problem of different cores between the transmission shaft and the motor shaft.
The jet propeller has three blades. It is fixed with a propeller fork and a self-locking nut to prevent slippage at high speeds, making it easy to repair and replace the propeller.
The diameter of the motor that can be installed is less than 44mm.
The minimum distance between motor mounting holes is 19mm and the maximum distance is 25mm.
Motor coupling available in 5mm and 4mm
The size of the large thruster is 210mm long, 60mm wide and 60mm high.
Large ship model with shipping dimensions ranging from 800mm to 1200mm in length
The 40 injector can be directly installed with a 775 brushed motor, which can be used if the nesting boat does not pursue rapid speed. Powerful.
Two models 4*4 connector 5*5 connector
