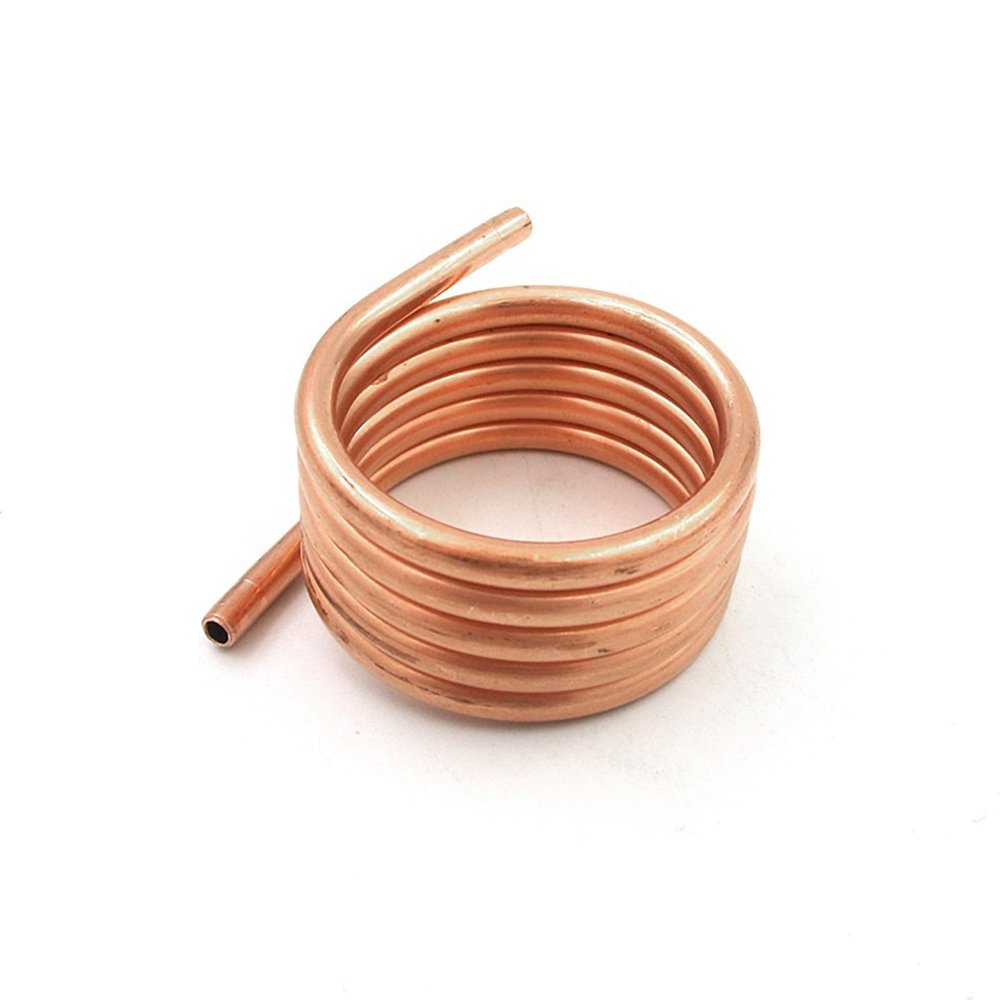

RC Boat Copper Water Cooling Jacket for 380/540/550/775/895 Brushed Motors Circulating Water Cooling Ring(380)

Description

• Wide Compatibility: Designed for 380, 540/550, 775, and 895 brushed motors with size-specific options.
• Durable Material: Made of high-quality copper for excellent heat dissipation and longevity.
• Precise Dimensions: Inner diameters range from 27mm to 48mm, with coil options from 4.5 to 6.5 turns.
• Efficient Cooling: Snug fit enhances cooling efficiency; requires firm rotation during initial installation.
• Tubing Support: Compatible with 3*5mm silicone tubing via 3mm inner diameter copper connectors.

Specifications and Dimensions:
380 Motor Cooling Jacket: Inner Diameter: 27mm; Height: 21mm; 4.5 coils
540/550 Motor Cooling Jacket: Inner Diameter: 34.5mm; Height: 25mm; 5.5 coils
775 Motor Cooling Jacket: Inner Diameter: 41mm; Height: 25.5mm; 5.5 coils
895 Motor Cooling Jacket: Inner Diameter: 48mm; Height: 25.5mm/29mm; 5.5 or 6.5 coils available
Note: Sizes are hand-measured and may have slight deviations.

Copper Tube Dimensions:
Inner Diameter: 3mm
Outer Diameter: 4mm (Designed for use with 3*5mm silicone tubing for water circulation)
Material: Made from high-quality copper for excellent heat conductivity and durability.

Features and Usage:
This copper water cooling jacket is designed for RC boat brushed motors, enhancing cooling efficiency and prolonging motor life. To ensure a tighter fit, the inner diameter of the cooling jacket is slightly smaller than the motor. During first-time installation, apply force and rotate the jacket to secure it firmly. The natural elasticity of brass ensures a snug and effective cooling performance.
