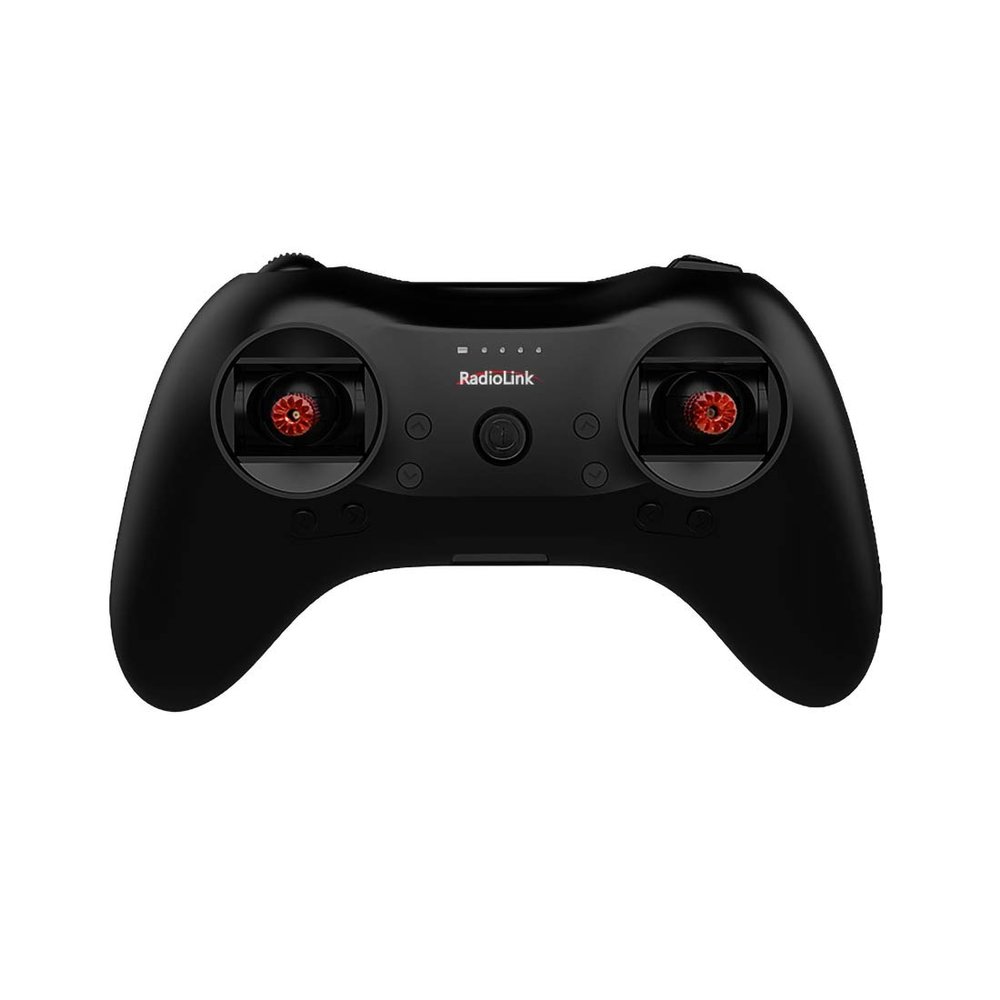

Radiolink T8S FHSS 8CH RC Handle Transmitter with R8FM R8EF 2.4GHz Receiver Support S-Bus PPM for RC Drone RC Boat Car (with R8EF Recevier)

Description

• Excellent Anti-interference: FHSS 67CH pseudo random frequency hopping, anti-interference performance to both same and different frequency bands and stable remote control distance 2000 meters in the air. Only 3ms for 8 channels synchronously, support SBUS&PPM&PWM output.
• Ergonomics Design: Perfect ergonomics design with the small size and suitable weight and the removable joysticks personalized to player's hands and make the long flight more pleasant.
• USB Charging and Low Consumption: The built-in 1S 800mAh lithium battery can be directly charged by computer or mobile charger with a USB cable. Total using time lasts 5 hours long when battery is fully charged.
• Support Multiple Models and Receivers: Compatible with fixed-wings, gliders, multicopters, RC cars and boats. T8S can use with R6FG,R6F, R7FG, R8EF, R8FM mini receiver. In this package comes along with double receivers, R8FM & R8EF.
• App Setup and USB Upgrade: Parameters can be easily setup and modified with Android App. USB port design with new functions added and keeps T8S always advanced.

Brand Name: RadioLink
Item Name: T8S Transmitter
Color: Black
Material: ABS
T8S Operating Voltage: 4.2V
Receivers: R8FM & R8EF
Receiver Operating Voltage: 4.6-10V
T8S Opearting Current: <150(5)mA
Receiver Opearting Current: <30mA
Support R8EF,R8FM,R7FG,R7F,R6FG,R6F Receiver
Built-in Battery: 1S 800mAh Lithium Battery
Working Time: about 5hrs
Transmitter Size: 162.5 * 95.5 * 57mm
Transmitter Weight: 142g

Item Name: R8EF Receiver
Channel: 8CH
Operating voltage: max 10V.
Operating current: 19-25mA(input voltage 5V)
Size: 48.5*21*11mm
Weight: 7g
Section precision: 4096
Signal output: S-BUS, PPM and PWM

Item Name: R8FM Receiver
Channels: 8CH
Working voltage: 4.8-6V
Working current: 30mA(input voltage: 5V)
Size: 16.0*21.5*1.0MM
Weight: 2.5g
Section precision: 2048
Signal output: S-BUS, PPM

How to match code with transmitter:
1.Place the transmitter and the receiver close to each other within 1 meters.
2.Turn on the transmitter, then give power to receiver.
3.Connect CH3(R8EF/R8FM) to ESC.
4.There is a black button near the antenna, hold the ID SET switch of the receiver one second and release, receiver light start blinking, it will automat

Package Information:
Package size: 18.6 * 16.5 * 7.5cm / 7.3 * 6.5 * 2.9in
Package weight: 188g

Package List:
1 * T8S Transmitter
1 * R8EF / R8FM /MINI Receiver (Optional)
1 * Cable
