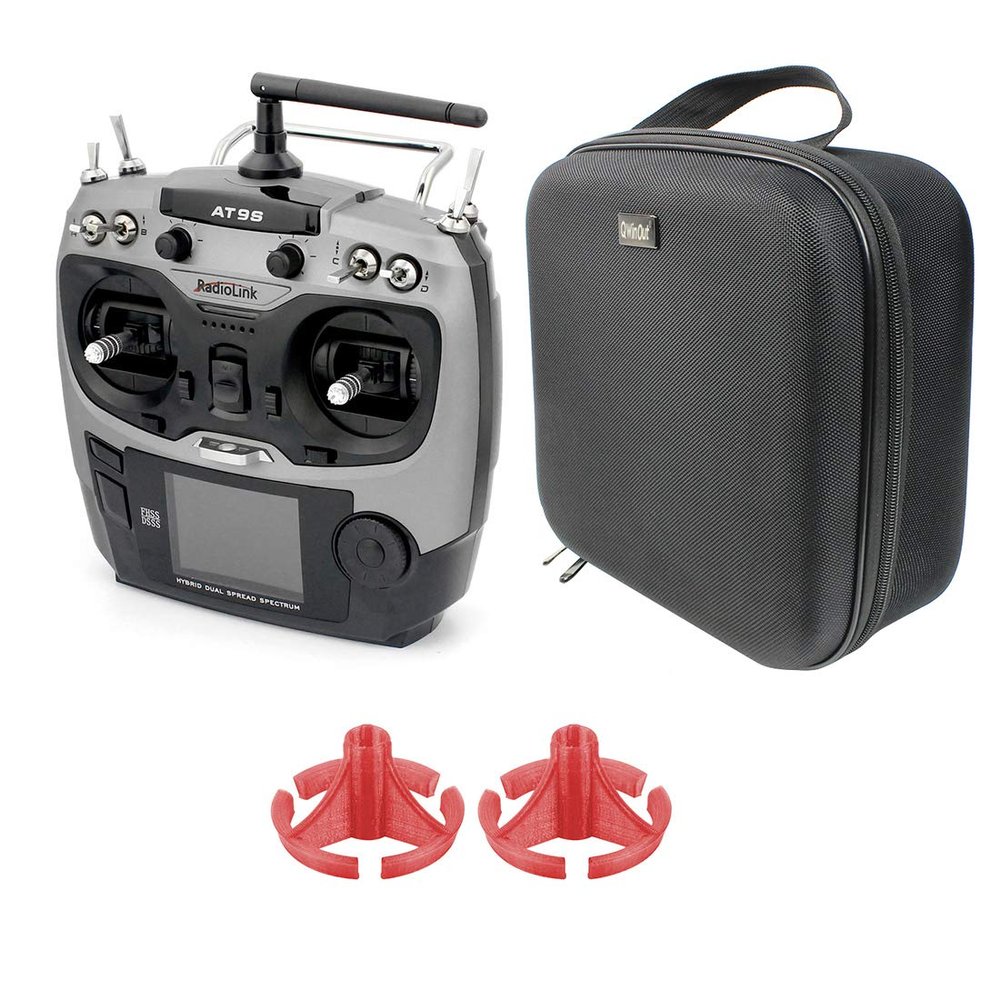

Radiolink AT9S with Portable Case Handbag Rocker Mount 2.4G 10CH Radio System DSSS FHSS Transmitter 9CH R9DS Receiver Controller S-BUS for RC Drone Quadcopter

Description

• The Transmitter is Default left-hand throttle mode 2,if you need Mode1,please inform us in advance,thanks
• Radiolink AT9S Radio Transmitter 9CH R9DS Receiver
• QwinOut Portable Case Handbag Universal Compatible for Futaba/Frsky/Flysky/JR/Jumper/Walkera/Wfly/Radiolink/Microzone
• with Rocker Mount, protect transmitter the throttle stick
• Package Including: 1*Radiolink AT9S TX; 1*R9DS Receiver; 1*QwinOut Portable Case; 1*Rocker Mount(1 Pair)

Package Includ
1*Radiolink AT9S TX(Default left throttle)
1*R9DS Receiver
1*QwinOut Portable Case
1*Rocker Mount(1 Pair)

Radiolink AT9S Radio Transmitter 9CH R9DS Receiver
Size:AT9S-183*100*193mm, R9DS-41*23*14mm
Weight:0.88kg
Frequency:2.4GHz ISM band(2400~2483.5MHz)
Modulation mode:QPSK
Channel bandwidth:5.0MHz&250Kbps
Spread spectrum:DSSS;FHSS
Adjacent channel rejection:>38dbm
Transmitter power:<100mW(20dbm)
Operating current:<90mA 12V
Operating voltage:7.4~18.0V
Control distance:more than 900m ground,1500m air,actual control distance depends on the flying environment
Channel:5-10ch are customized
Compatible model:include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator mode:under the simulator mode the transmitter action turn off,change to power saving mode
Screen:2.8in 16 colorful screen,240*320 pixels
Support receivers:sells with R9DS (SBUS;PWM);Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM)
R9DS 2.4G 9CH DSSS Receiver
Feature:
DSSS technique, super anti-interference
RX voltage and signal strength telemetry, extensional sensor for EP, Temperature, RPM, GPS etc
S.BUS. CH9 is set for S.BUS
All 9channel needs 3ms to response parallel
Section precision 4096, stable the servo, rudder shaking free
HV input up to 10V
MINI design for convenient assembling and operating
Channel:9channel,CH9 is for S.BUS
Max input voltage:10V
Current: 38-45mA(Voltage input: 5V)
Section precision 4096

Portable Case Handbag
Brand:QwinOut
Universal Compatible for Futaba/Frsky/Flysky/JR/Jumper/Walkera/Wfly/Radiolink/Microzone
Material:EVA+nylon
Weight:466g
Size:26*26*11.5cm
