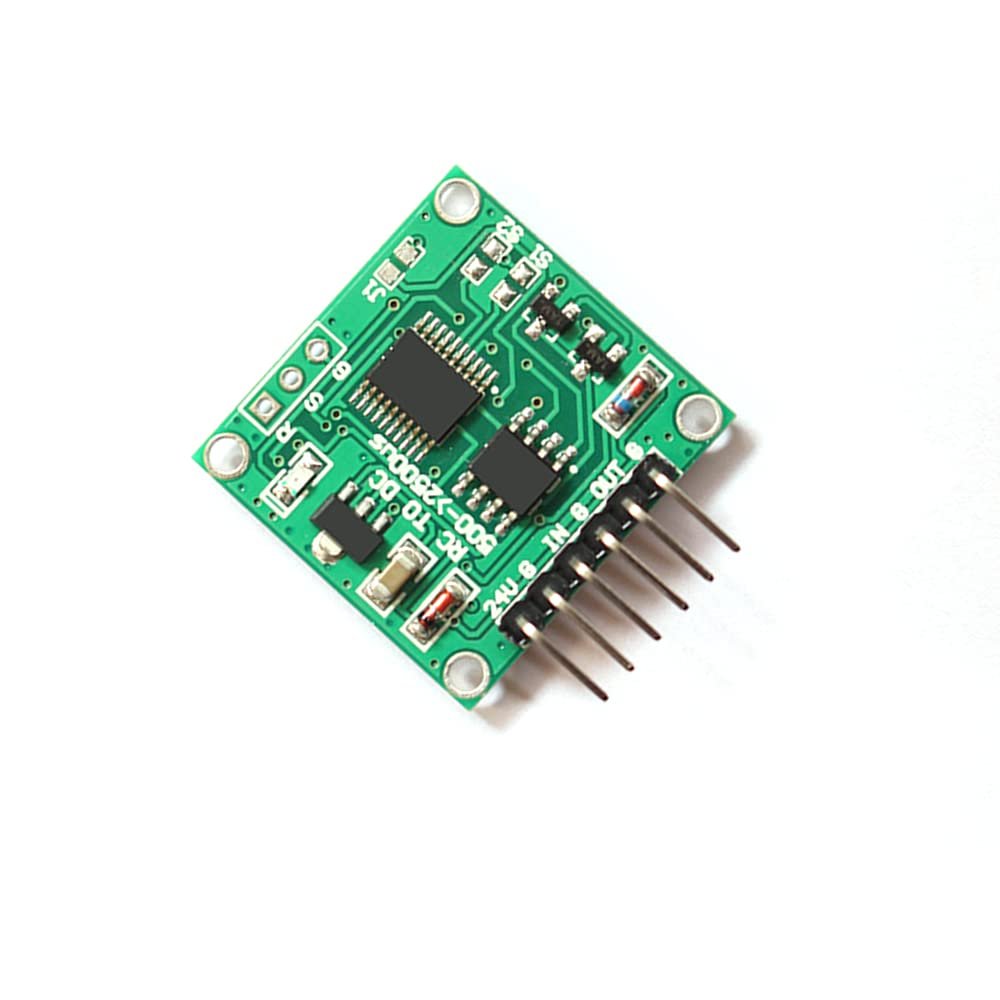

Q-BAIHE Remote Control Signal RC to Voltage Module 0-5V 0-10V Linear Conversion Transmitter Module

Description

• Working voltage: 9V ~ 24V
• Signal input voltage range: 424V
• Output voltage: 0.00V ~ 5.00V/0.00V ~ 10.00V
• Signal input frequency range: 0Hz100Hz
• Signal input RC range: 5002500us (microseconds)

Specification:
1. Power supply voltage: 9V ~ 24V
2. Signal input voltage range: 424V
3. Signal input frequency range: 0Hz100Hz
4. Signal input RC range: 5002500us (microseconds)
5. Output voltage: 0.00V 5.00V/0.00V 10.00V
6. Input mode: J1 pad on the circuit board: the default is open circuit, not used.
7. Output mode: J2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.
8. Scope of application: remote data acquisition and control equipment;
9. Size: (length) 26mm * (width) 23mm * (height) 10mm

Module interface:
12V: Power supply positive port (9V ~ 24V).
G: Power ground interface.
IN: Signal input positive port.
G: Signal input negative port.
OUT: Signal output interface (0.00V 5.00V/0.00V 10.00V).
G: Power ground interface.

Note: When outputting 0.00V to 10.00V, the power supply voltage must be 15V.

RC signal 5002500us (microsecond) rotation (0.00V5.00V) or (0.00V10.00V)

Packing: 1*RC to voltage signal module
