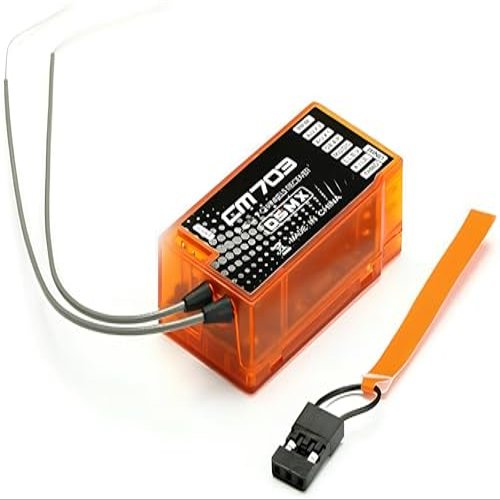

Orange CM703 DSM2/DSMX Comatible 7CH PWM/PPM 2.4GHz Receiver for Spektrum/JR

Description

• The CM703 7CH DSMX receiver is 6 channels with PPM Output, support RC multicopters, high sensitivity and high stability and high precision, greatly improved performance.
• Use special 3dbi gain antenna, inside add amplifier of more than 15dB gain. Stronger anti-interference ability and farther control range, quick connect.
• Preset safety system, safe flight.
• Channels: 7, Operating Voltage: 3.3V-9.6V, Frequency Band: 2.4GHZ
• Applicable Models: for JR/SPECTRUM DSM-X , DSM2

Description:

CM703 7CH Compatible Receiver With Satellite PPM PWM Output
Features: 6 channels with PPM Output 3dbi gain antenna, 15dbi gain amplifier. Stronger anti-interference ability and farther control range. Servo Sync (feature does not work with module systems) Preset failsafe system Quick Connect
Compatibility ( and JR /): DX6I, DX7, DX8, DSX7, DSX9, DSX11 General
Compatible Transmitter: JR and transmitter
Specification:
Brand Name:
Item Name: CM703 7CH
Compatible Receiver Band:
Channel: 7+PPM output
Operating Voltage: 3.3V-9.6V
Weight: 10g (4.8g Naked)
Brown-Out Voltage: 4.0v (Always supply power above this voltage)
Modulation: /
PPM Output: Yes (support RC multicopters)
Size Chart:
Dimensions (W x L x H): 47 x 24 x 14mm
Antenna Length Main RX: 13.5cm (2)
Package Includes:
1 Piece CM703 Receiver
1 Piece Bind Plug
Note:
Only time bind procedure is required on a new receiver. Repetitive binding provides no extra security. Always remember to remove the binding harness after successful bind is completed.
