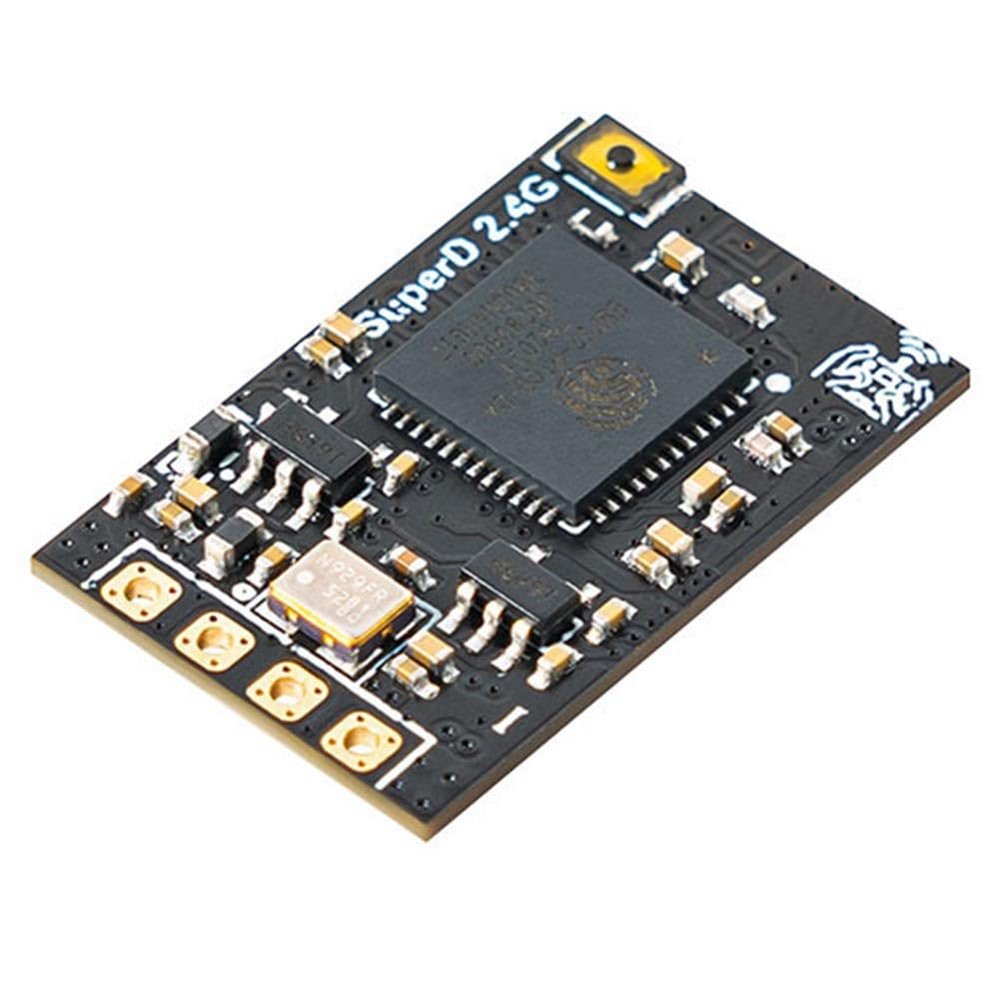

Nuhikap SuperD ELRS 2.4G Diversity Receiver ExprssLRS RX 2T Antennas TCXO for RC FPV Long Range/Freestyle Drone

Description

• Ultralight weight only 1.1g without the antenna. The receiver board features a reasonable layout and is impeccably clean. Very easy to solder.
• Two Dipole T antennas create an omnidirectional signal for good signal transmission. Placing the antenna separately and vertically as far part as possible to get a better signal is recommended.
• A true diversity receiver with two complete receiver chains (referring to PA++SX1280), based on the latest official ExprssLRS. It comes with ExpressLRS V3.0.0 firmware.
• Not only it is used for FPV drones but also for FPV fixed-wing, or other FPV aircraft. It has superb performance in long range flying.

Nuhikap Item: SuperD ELRS 2.4G Diversity Receiver
2.4G MCU: ESP32 D4, dual SX1280 (SX1281)
Antenna Connector: MHF 1/U.FL
Frequency: 2.4GHz (2400~2480MHz)
2.4GHz Telemetry Power: 20dBm (100mW)
Receiver Protocol: CRSF
Input Voltage: +5V DC @ "+" pad
PCB Size: 22mm x 14mm
Weight: 1.1g excluding antenna
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Colour:Black
Material:PCB

Package Contents:
1 x Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
