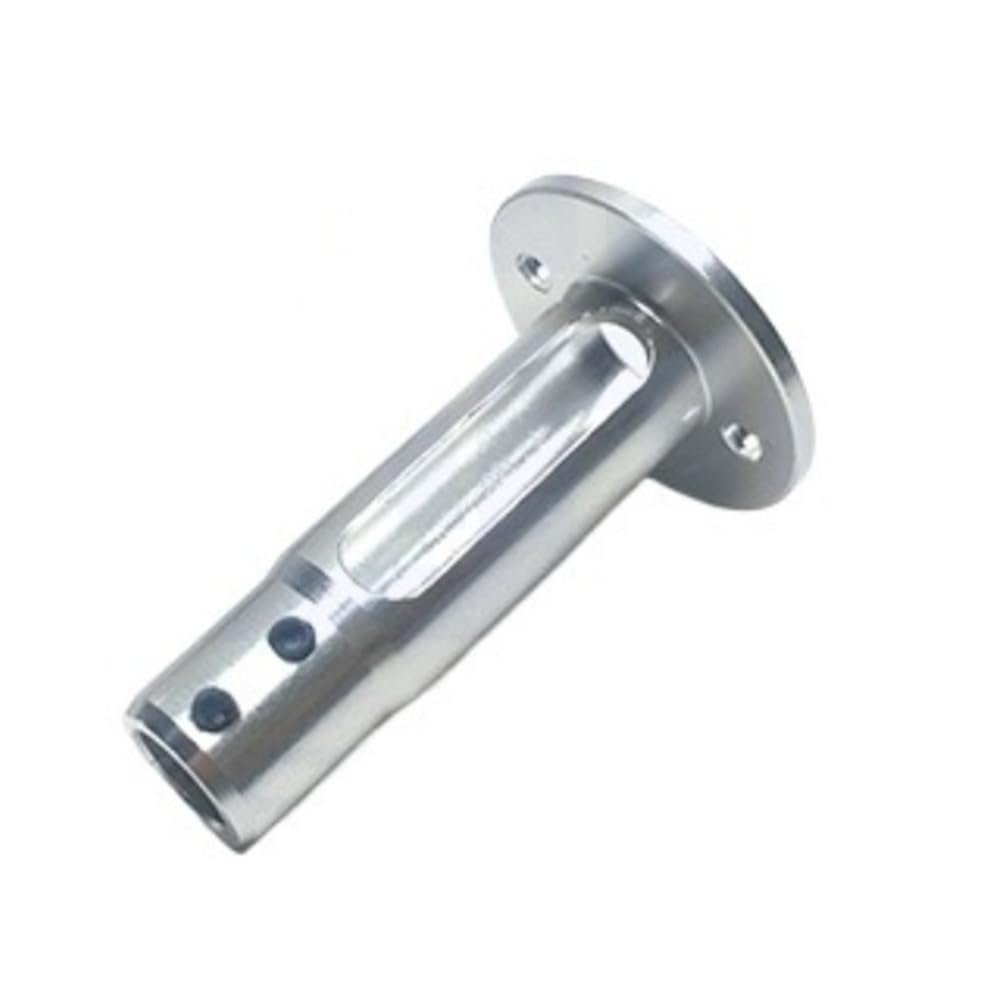

Model Boat Coupling Protection Sleeve, Shaft System(B28-8)

Description

• [6061 aluminum alloy material is light and strong] Made of 6061 aluminum alloy, it has high strength and light weight, ensuring power transmission efficiency.
• [Multiple specifications and wide adaptability] Provide multiple specifications, such as B36-10, B36-7, B36-6, etc., to adapt to shaft sleeves and motors of different diameters.
• [Improve concentricity and reduce vibration] Effectively improve the concentricity of the shaft system and the motor, reduce vibration and improve transmission efficiency.
• [Protect the coupling from friction] Prevent the coupling from rubbing against the equipment on board when running at high speed to avoid unnecessary accidents.
• [Easy to install] Reasonable design, easy installation, ensuring tight connection with shaft system components.

Product name: Ship model integrated shaft system assembly coupling protection sleeve collection

Material: 6061 aluminum alloy

Specification:
B36-10 B36-7 B36-6 B28-10 B28-8 B28-7 B28-6

Quantity: 1

Purpose: It is used to improve the concentricity of the shaft system and the motor, and can easily ensure that the motor and the shaft system are in one line, so that the shaft system runs smoothly, reduces vibration, improves transmission efficiency, and better protects the coupling to prevent unnecessary accidents caused by friction with the equipment in the ship when the coupling runs at high speed.

B36-10mm coupling protection sleeve:
Suitable for 36/40 series brushless motors
Fixed hole distance: 25mm (suitable for sleeve outer diameter 10mm)
Ship type: generally used on MONO2 integrated hard shaft system

B36-6/7mm coupling protection sleeve:
Suitable for 36/40 series brushless motors
Fixed hole distance: 25mm (suitable for sleeve outer diameter 6/7mm)
Ship type: Universal for remote control model ship with flexible shaft system

B28-10mm coupling protection sleeve:
Suitable for 28/29/30 series brushless motors
Fixed hole distance: 19mm (suitable for sleeve outer diameter 10mm)
Ship type: MONO1 integrated hard shaft system

B28-8mm coupling protection sleeve:
Suitable for 28/29/30 series brushless motors
Fixed hole distance: 19mm (suitable for shaft sleeve outer diameter 8mm)
Ship type: MONO1/MINI MONO integrated hard shaft system

B28-7mm coupling protection sleeve:
Suitable for 28/29/30 series brushless motors
Fixed hole distance: 19mm (suitable for sleeve outer diameter 7mm)
Ship type: MONO1/MINI MONO integrated hard shaft system

B28-6mm coupling protection sleeve:
Suitable for 28/29/30 series brushless motors
Fixed hole distance: 19mm (suitable for sleeve outer diameter 6mm)
Boat type: suitable for B28 m
