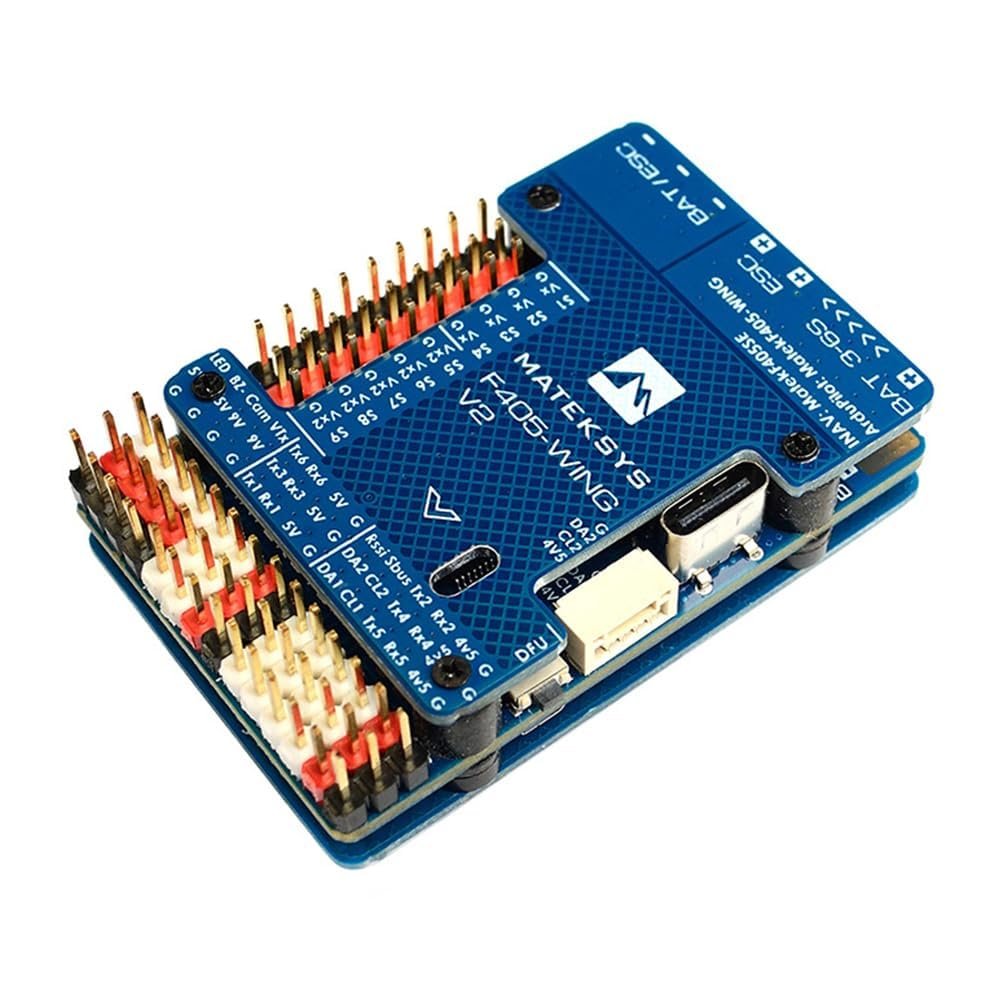

Matek Flight Controller F405-WING-V2 FC Baro OSD Blackbox for ArduPilot INAV RC Fixed Wing Airplane Model, Omons Mateksys F405 Wing V2 Mattek FPV Pressure Needle ELRS2.4G Receiver- (CN)

Description

• USB:Type-C; Baro:DPS310; Current sensor:100A continuous, 220A Peak; Current scale: INAV 150 ArduPilot BATT_AMP_PERVLT= 66.7.
• MCU: STM32F405RGT6, 168MHz , 1MB Flash; IMU: ICM42688-P; Blackbox: MicroSD card slot.
• Updated version: Matek F405-WING V2 Flight Controller ,it is designed specially for fixed wing.
• INAV:MatekF405SE, 6.0 or newer;ArduPilot:MatekF405-Wing, 4.4 or newer.
• 6x UARTs; 2x I2C; 3x ADC; 1x Softserial_Tx option(INAV); 10x PWM outputs.

Matek Flight Controller F405-WING-V2
STM32F405RGT6, ICM42688P, DPS310, OSD, 6xUARTs, 10x PWM, 2xI2C, 3xBEC

FC Specifications:
MCU: STM32F405RGT6, 168MHz , 1MB Flash
IMU: ICM42688-P
Baro: DPS310
OSD: AT7456E
Blackbox: MicroSD card slot
6x UARTs, 1x Softserial_Tx option(INAV)
10x PWM outputs
2x I2C
3x ADC (VBAT, Current, RSSI)
Built in inverter for SBUS input
USB Type-C(USB2.0)

FC Firmware
ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
INAV: MATEKF405SE (INAV 6.0 or newer)

PDB
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)
Sense resistor: 100A continuous, 220A peak
Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps
12V option with Jumper pad
for stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V options
Continuous current: 5 Amps, 6A Peak
for stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
Designed for external 3.3V peripherals
Linear Regulator
Continuous current: 200mA

Physical
Mounting: 30.5 x 30.5mm, 4mm with Grommets Omonsm
Dimensions: 54 x 36 x 13 mm
Weight: 25g

Including
1x F405-Wing-V2
1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
Dupont 2.54 pins (Board is ped unsoldered)
