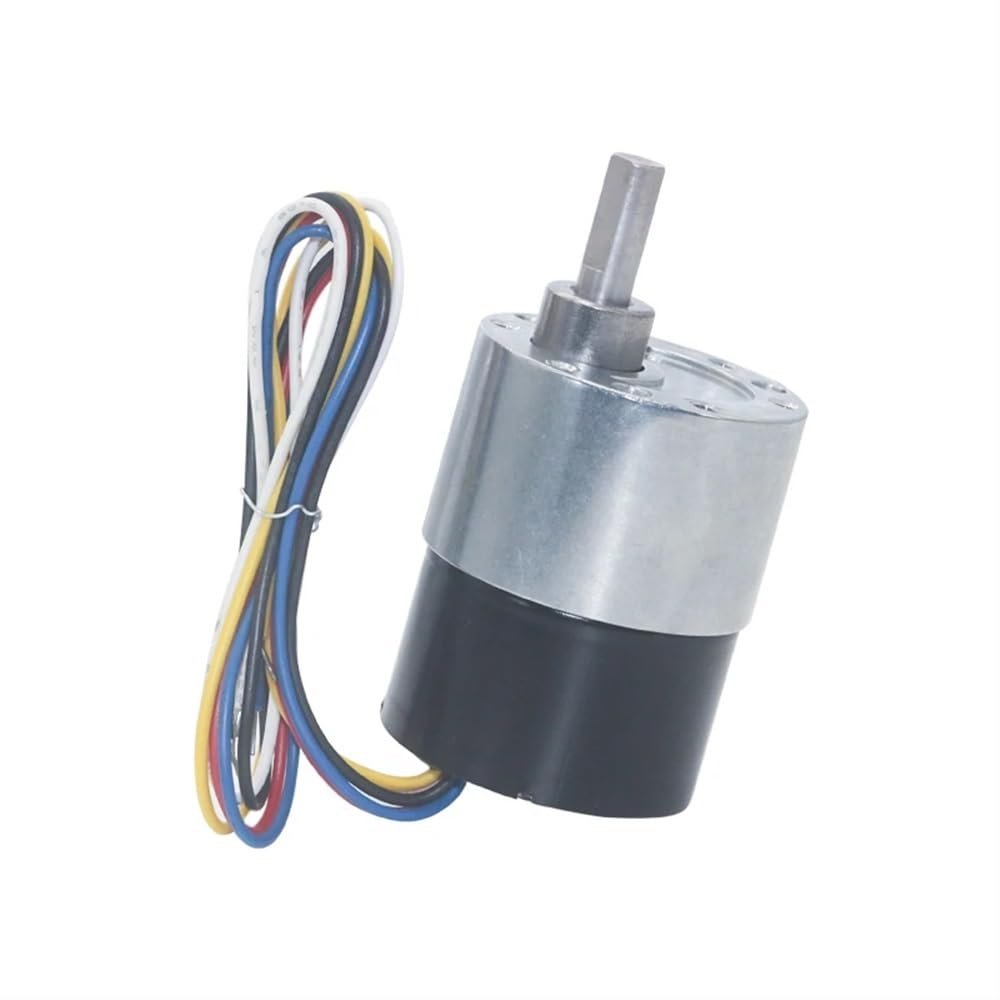

MANHONG Electric Small Motor 37mm Diameter Gearbox, Low Noise, Long Life, High Torque, 12v Brushless DC Gear Motor, Silent Brushless Gear Motor JGB37-3525 (Speed(RPM) : 12V 160RPM)

Description

• Pure copper wire core rotor: Using precision winding technology, the motor power is increased by 20%.
• Motor characteristics: low noise, long life, adjustable speed, with brake, with speed feedback signal
• Motor diameter: about 37mm
• Motor body length: 25mm
• Output shaft diameter: 6mm (D type)

Using high hardness steel, good toughness, impact resistance, bearing quality and gear motor life are improved, extremely durable.
Low noise, long life, large torque, plus or minus 12v brushless DC gear motor JGB37-3525 specifications:
Voltage: DC12V
No-load speed: 480rpm, 300rpm, 160rpm, 100rpm, 53rpm, 33rpm, 22rpm, 17rpm, 11rpm, 6rpm, 4rpm
Voltage: DC24V
No-load speed: 960rpm, 600rpm, 320rpm, 200rpm, 107rpm, 66rpm, 45rpm, 35rpm, 22rpm, 12rpm, 7rpm
Motor characteristics: low noise, long life, adjustable speed, with brake, with speed feedback signal
Motor diameter: about 37mm
Motor body length: 25mm
Output shaft diameter: 6mm (D type)
Output shaft length: 12mm
Transmission length: see table
Wiring:
Red line: power supply+
Black wire: power supply-
White wire: CW/CCW control wire, the white wire and the black wire together can change the direction of the motor
Blue line: PWM speed control line, connected to 0~5V pulse width speed controller
Yellow line: FG signal line
