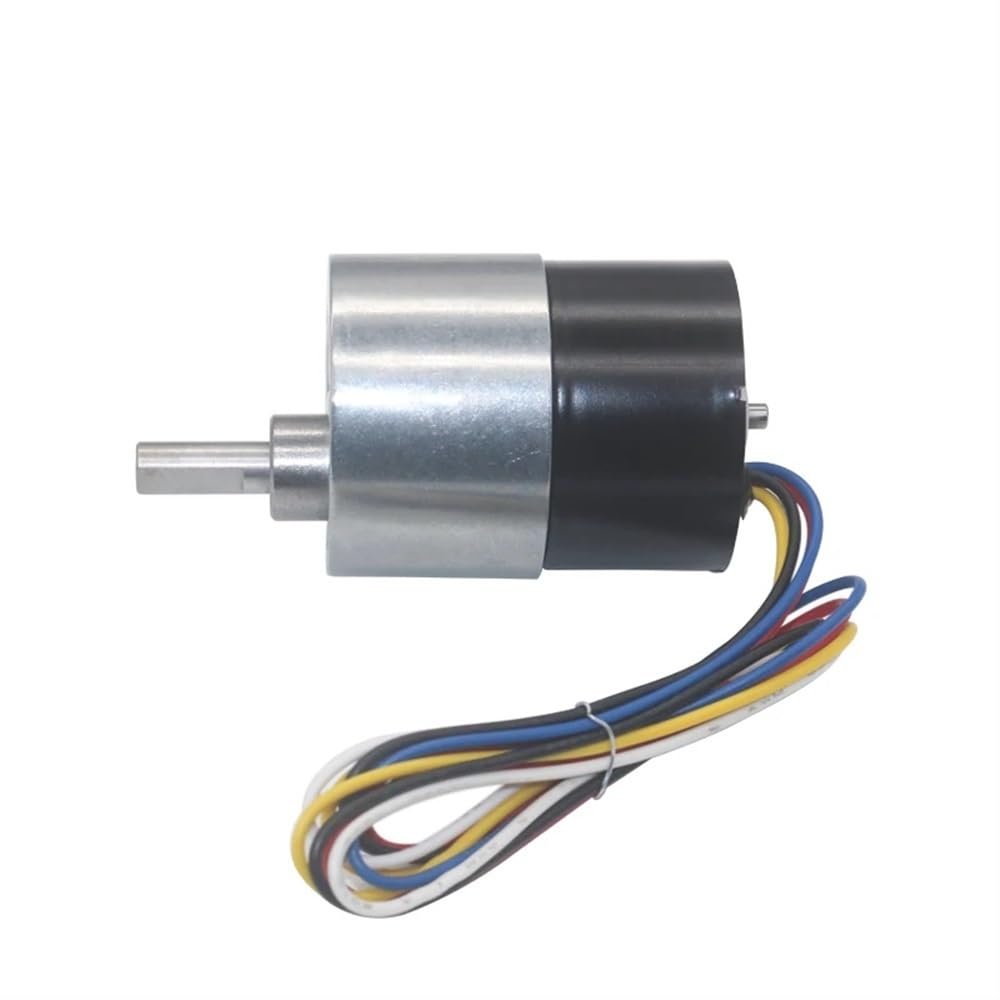

MANHONG Electric Small Motor 12v 24v Brushless DC Gear Motor 37mm Diameter Gearbox, Low Noise, Long Life, High Torque, Silent Brushless Gear Motor JGB37-3525 (Speed(RPM) : 12V 17RPM)

Description

• Pure copper wire core rotor: Using precision winding technology, the motor power is increased by 20%.
• Motor diameter: about 37mm
• Motor body length: 25mm
• Output shaft diameter: 6mm (D type)
• Output shaft length: 12mm

Using high hardness steel, good toughness, impact resistance, bearing quality and gear motor life are improved, extremely durable.Voltage: DC12VNo-load speed: 480rpm, 300rpm, 160rpm, 100rpm, 53rpm, 33rpm, 22rpm, 17rpm, 11rpm, 6rpm, 4rpmVoltage: DC24VNo-load speed: 960rpm, 600rpm, 320rpm, 200rpm, 107rpm, 66rpm, 45rpm, 35rpm, 22rpm, 12rpm, 7rpmMotor characteristics: low noise, long life, adjustable speed, with brake, with speed feedback signalMotor diameter: about 37mmMotor body length: 25mmOutput shaft diameter: 6mm (D type)Output shaft length: 12mmTransmission length: see tableWiring:Red line: power supply+Black wire: power supply-White wire: CW/CCW control wire, the white wire and the black wire together can change the direction of the motorBlue line: PWM speed control line, connected to 0~5V pulse width speed controllerYellow line: FG signal line
