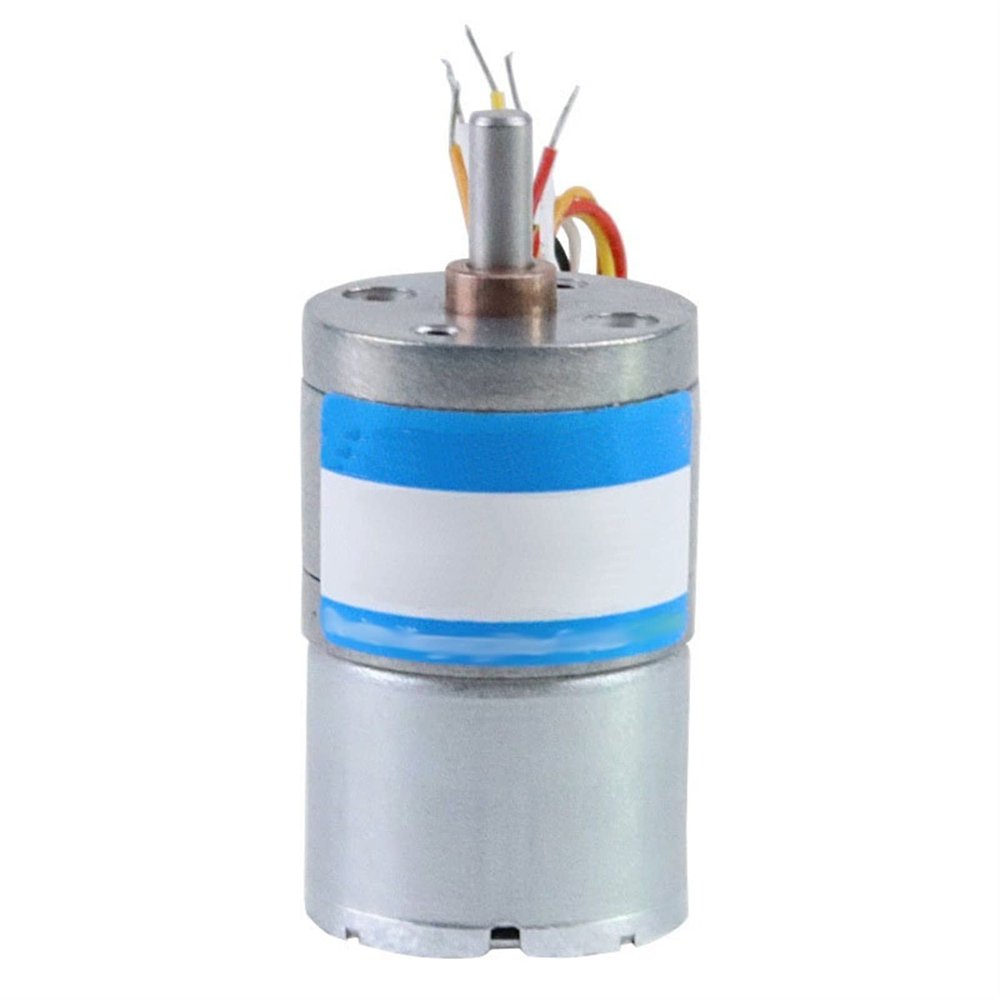

LVLOZ Micro brushless DC Gear Motor 12v24v Speed Control Gear 2418 Small Mini Motor Small Motor (Speed : 12V453rpm)

Description

• Specification: Speed: 8.5-1977RPM; No Load Current: 35mA/50mA; Model: 2418.
• Shaft Size : 9.5 x 4mm(L*D);Motor Body Size : 24.4 x 18mm(D*H).
• Torque:0.2-24kg.cm
• With fine craftsmanship, durable, not easy to wear, good for making robots.
• GREAT PERFORMANCE: This motor has high work efficiency, can help reducing the friction.

Model: 2418Name: DC geared motorVoltage: 12V/24VNo-load current: 35mA/50mAtorque: 0.2-24kg.cmWarning: It is forbidden to connect the positive and negative poles of the power supply wrongly, the signal line is forbidden to connect the power, and the wrong connection of the motor is not guaranteed2418 Five-wire control wiring methodBlack wire: motor power supply - do not connect wronglyRed wire: motor power + can not be wrongly connectedYellow line: 18 pulses per revolution of the signal motorWhite line: duty cycle, pulse width speed regulation 15~25kHz (when the speed is not adjusted, connect to the negative stage of the power supply together with the black to start, and the motor runs at the highest speed)Orange line: positive and negative line (connected to negative level reverse with black connection) default overcurrent protection 0.8A, over 0.8A current automatic protection, locked rotor protection, need to re-power before restartingincloud: 1 pack Motor with encoder
