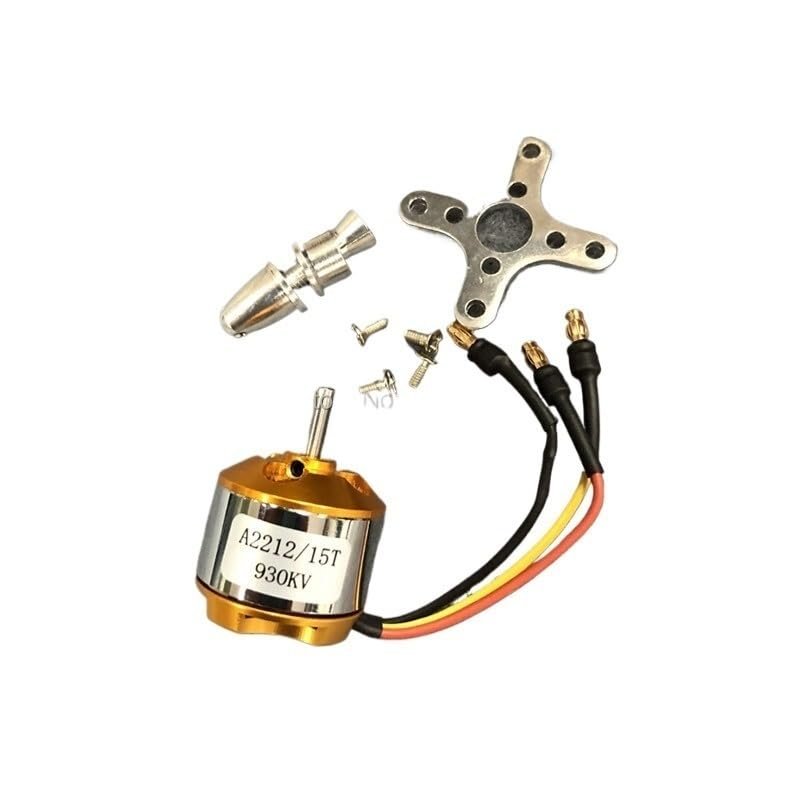

LSFWJP 1pcs A2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV for RC Aircraft Plane Multi-Copter Brushless Outrunner Motor (Color : KV930)

Description

• No spark. No brush, low interference;
• Low noise and smooth operation; Long service life and low maintenance cost;
• High efficiency and low energy consumption
• Made of high-quality electronic components, the electronic performance is more stable.
• Made of high-quality material, and less burrs and good texture. And with better wear resistance, the life time can be longer.

1pcs A2212 Brushless Motor 930KV 1000KV 1400KV 2200KV 2450KV 2700KV For RC Aircraft Plane Multi-copter Brushless Outrunner Motor

Products Description:
For XXD A2212 930KV brushless outrunner motor:
- Mode:Wester A2212
- KV: 930 / 1000 /1400 /2200 according to your order
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: 27.5 x 30mm
- Shaft Diameter: 3.17mm
- Weight: 47g

For XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

For XXD A2212 1400KV brushless outrunner motor:
- Shaft diameter: 3.17mm
- Dimension : 27.8mm x 27mm
- Recommended Propeller: 2-cells 7*3.5 , 3-cells 6x3
- Weight: 48g

For XXD A2212 2200KV brushless outrunner motor:
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g

For XXD A2212 2700KV brushless outrunner motor:
Rpm/V: 2700KV
Net Weight: 50g
Weight: 60g
Motor Dimensions: 27*26mm
Battery Opernating: 2-3 Lipo
Idle current: 1.8A
Load current: 18.5A
Power (Watt): 240
ESC(A): 30A,20A
Peak.Amps :14-22 A

Dynamic reference:
1000kv with 1060 9050 propeller -- forward pull drill
1400kv with 9050 8040 8060 propellers -- pull forward 3D stunt machine/world war ii aircraft
7035 6030 propeller for 1750kv -- push back drill
6030 5030 propellers for 2200kv -- push back fighter
2700kv with 5030 propeller -- thrust back high-sp
