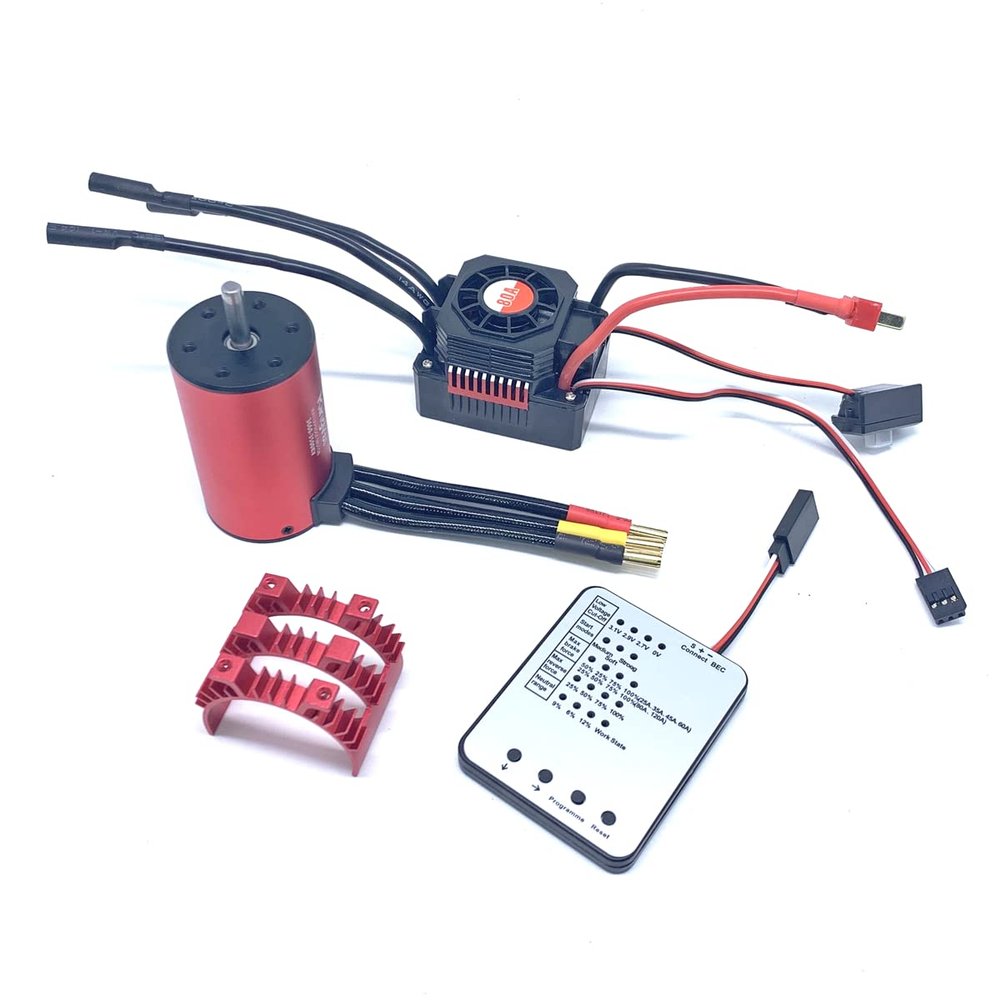

KingVal Replacement 3660 3500KV Waterproof Brushless Motor Shaft 5mm with 80A Brushless ESC and Program Card + Heatsink Combo Compatible with 1/10 RC Car

Description

• 4 Pole 6 Slot Hi-torque Motor Design, CNC Machined 6061 T6 Billet Aluminum Heatsink Can
• High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
• Universal fit,fits all 1/10th brushless cars-multi-mounting system for M3 screws
• Precision balanced rotor,smoothness for best reliability and maximum RPM
• Stator - Super Thin (0.35mm) Laminations, Removable/Replaceable Rotor,Precision Engineered for Maximum Energy Conversion

Features:
4 Pole 6 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10th brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Specification:
Brand: KingVal
Product: Waterproof 3660 Brushless Motor
KV(RPM/Volt): 3500
Watts: 1200
Max voltage: <13V
Max Amps: 92A
Rotor Poles: 4
IO: 2.8A
Resistance: 0.0083
Max RPM: 50000
Shaft Diameter: 5mm
Length of extend shaft: 17mm
Connector: 4.0mm gold
80A ESC:
Cont.Current/Burst Current: 80A/480A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. on-road: 3670-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3670-size or smaller motor with the KV <3000KV
For 3S Lipo or 9 cells NiMH :
1. on-road: 3670-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3670-size or smaller motor with the KV <2500KV
Suitable Car: 1/10 Car, 1/8 Car
Resistance: 0.0005ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 6.1V/3A switch mode)
Size: 51.5 x 38.5 x 38.5mm
Weight: 95g
Program Card:
Low Voltage Cut-Off: 3.1V/2.9V/2.7V/0V
Start mode: Medium, Soft, Strong
Max brake force: 25%,50%,75%,100% (80A/120A); 50%,25%,75%,100% (25A/35A/45A/60A)
Max reverse force: 25%,50%,75%,100%
Neutral range: 9%,6%,12%,Work States
N.W: 23g
Package List:
1 x Waterproof 3660 Brushless Motor
1 x 80A Brushless ESC
1 x Program Card
1 x Heatsink
