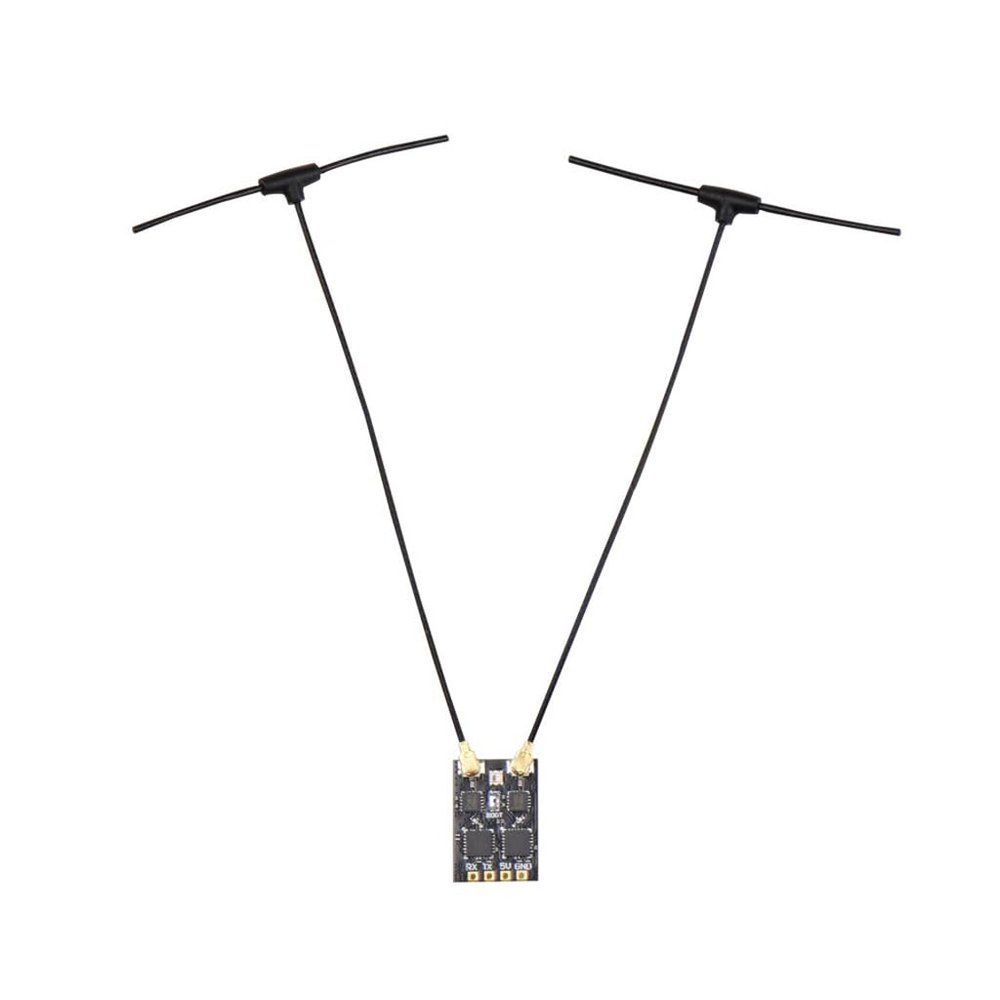

JHEMCU RP4-TD ELRS 2.4GHz True Diversity Receiver ESP32 PICO D4 Dual SX1280

Description

• True Diversity Performance Dual SX1280 RF chips and dual IPEX antennas deliver maximum signal stability and reliability, even in interference-heavy environments.
• Precision RF Clock Built-in TCXO ensures both channels share a perfectly synchronized clock for superior range and link quality.
• Long-Range, Low-Latency Control CRSF protocol output with 20dBm telemetry power supports freestyle, racing, cinematic, and long-range FPV builds.
• Ultra-Lightweight Design Weighs just 1.05g (without antennas), making it ideal for drones, RC planes, and lightweight FPV applications.
• ExpressLRS V3.2 Firmware Preloaded and upgradeable, ensuring future-proof performance and feature expansion.

The JHEMCU RP4-TD ELRS 2.4GHz Diversity Receiver is a cutting-edge solution for FPV pilots demanding rock-solid connectivity, low latency, and exceptional range. Featuring dual SX1280 RF chips, true diversity with dual antennas, and integrated dual signal backhaul, this receiver delivers stable and reliable control even in complex flight environments.
With its built-in TCXO high-precision temperature-compensated crystal oscillator, both RF channels share a perfectly synchronized clock for superior signal performance. Weighing just 1.05g (without antennas) and running ELRS V3.2 firmware, the RP4-TD is ready for freestyle, racing, long-range, and cinematic builds.

Features:
True diversity with dual SX1280 RF chips and dual IPEX antennas for maximum signal reliability Integrated TCXO for precise, stable RF clock performance across both channels CRSF protocol output with 20dBm telemetry power for long-range, low-latency control Ultra-lightweight design at 1.05g (without antenna), perfect for drones and RC aircraft Runs ExpressLRS V3.2 firmware, upgradeable for future features
Specifications:
MCU: ESP32 PICO D4, Dual SX1280(1) Antenna: IPEX MHF 1 / U.FL Frequency: 2.4GHz (24002480MHz) Receiver protocol: CRSF (Crossfire) Telemetry power: 20dBm Input voltage: +5V DC Current draw: 120200mA Size: 13.5mm x 19.5mm Weight: 1.05g (without antenna) Firmware: ExpressLRS V3.2
Package Contents:
1x JHEMCU RP4-TD 2.4G Diversity Receiver 2x 2.4G T-Type Antennas 1x Heat Shrink Tubing 4x Wires
