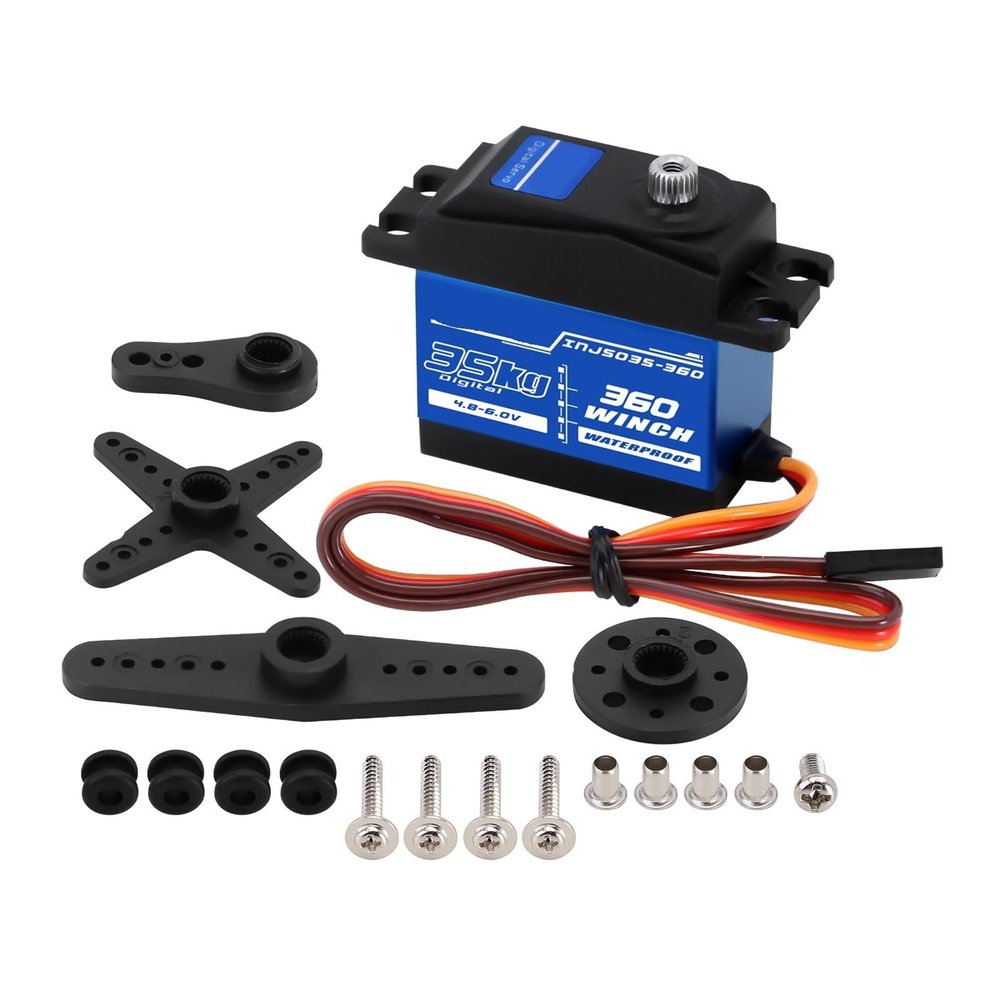

INJS035-360 35KG Waterproof 360 Rotating Digital Servo Winch Spool(INJS035-360 Servo)

Description

• Servo Gears

Servo Gears
INJS035-360 Servo Specifications:
Quantity: 1 piece
Death Band: 4s
Idle: 1500s/330hz
Motor: Iron core motor
500-2500us Angle: 360
Voltage range: 4.8V-6.0V
Operating speed (4.8V): 49rpm
Operating speed (6.0V): 61rpm
Stall torque (4.8V): 29kg.cm
Stall torque (6.0V): 35kg.cm
- Bearing: 2BB
Weight: 60 g
Dimensions: 40.5 x 20 x 40.5 mm (1.59 x 0.79 x 1.59 in)
Cable length: JR 300mm
Winch Reel Specifications:
Material: Aluminum
Type: Standard (19*11mm), Thin (16*8mm)
Standard capstan shaft teeth number: 23T/25T
Low Profile Winch Reel Tooth: 25T
Mounting screw: M3
Nylon rope length: 116 cm (45.67 inches)
Wire rope length: 96 cm (37.80 in)
