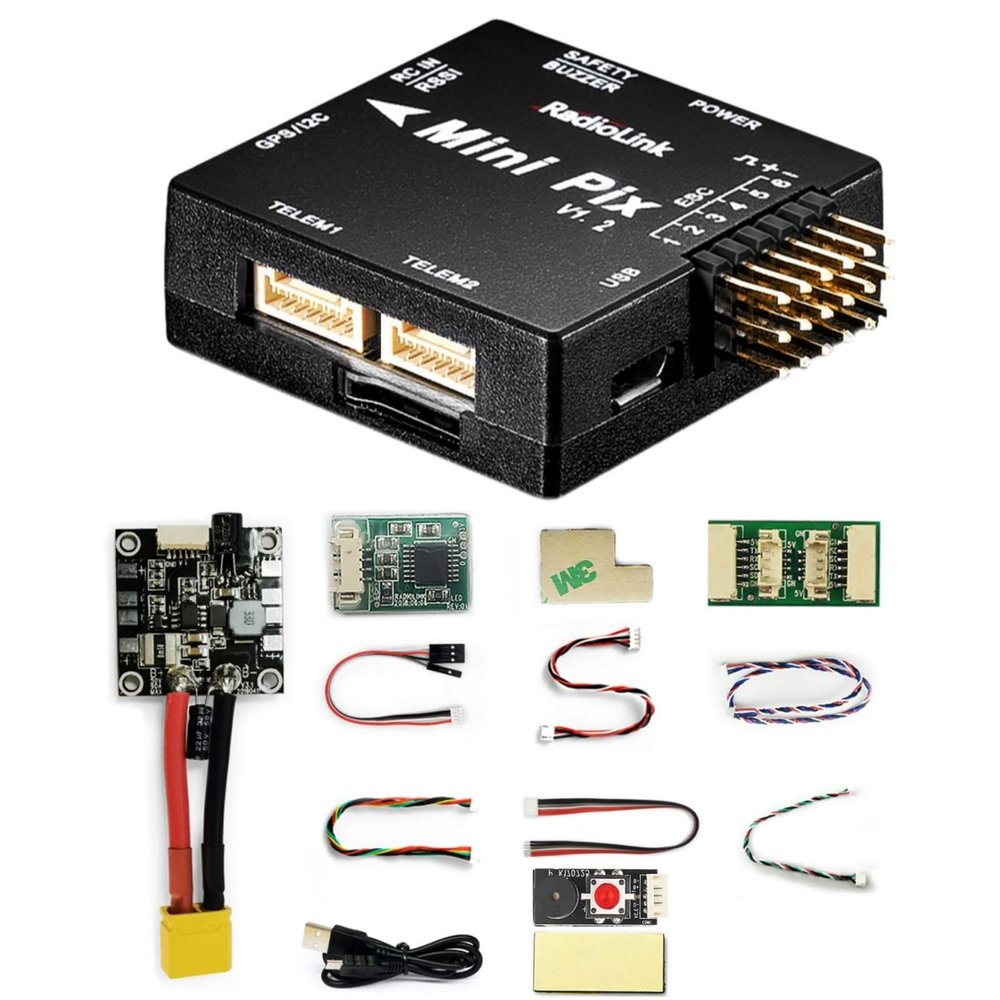

HTLNUZD Radiolink Mini PIX Flight Controller V1.2 with Mini M8N TS100 GPS Compass Module High Positioning Accuracy for for FPV Racing Helicopter Drone Fixed Wing Plane (Mini Pix Kit)

Description

• Digital Filter Algorithmmini pix flight controller for damped vibration performance even though without physical vibration dampener.
• Mini Size1.54*1.54*0.57in, integrating the full functions of the PIXHAWK, Suitable for mini racing drone, fixed wing, helicopter, multirotor and rc boat car.
• Top Firmware mini pix flight controller with STM32F405VGT6 processor and LPS22HB barometer, connect Mission Planner to adjust the PID's to reach your perfect settings.
• High Positioning AccuracyM8N TS100 GPS about of 50 centimeters positioning, it can be search 20 satellites within few seconds at open ground.
• StabilizationDesign a shell to reduce interference of airflow during flying, air pressure vent to ensure the accuracy of barometer measurement, built-in barometer sensor to make altitude hold stabilization.

MINI PIX Description:
High Performance Configuration
The barometer uses ST company's LPS22HB.
The gyroscope uses the MPU6500 of INVENSENS.
Geomagnetic uses the QMC5883L with HMC5983 statistics.
DIY Essential Flight Controller
It is easy to DIY and equipped with your drone.
Fixed-point-self-stabilizing-manually switch between hands, let the novices practice passing through the collision,
and realize the advanced journey of the novice to the professional players.
Adapt to Multiple Models
The Mini PIX can be used on Helicopter Models,
racing drone, fixed wing and 3-6-axis drones,
and the PosHold Mode-stabilize Mode-Acor Mode
can be switched at any time, making flight no longer difficult.
Mini Pix Flight Controller Specifications:
Connector Port: JST GH connector
Receiver In: PPM/SBUS
Transmitter: 6 oneshot/PWM
USB Voltage: 5v+-0.3v
Work Voltage: 5.1v
Support Models: Fixed wing/Multiple Rotors/helicopter/Drone/Car/Boat
Weight:15/0.034Lb
Package Included:
TS100 Mini M8N GPS
Top configuration:
GPS decoder chip: Radiolink M8N GPS,
72-channel, is much better than single GNSS 7N.
Geomagnetic: QMC5883L which with same technology as HMC5983 form
Antenna: 2.5dbI high gain and selectivity ceramic antenna
Double filter: SAWF(Surface acoustic wave filter) form Murata
Note: The Mini M8N GPS Dedicated for Radiolink Mini PIX Flight Controller.
MINI PIX is not compatible with other brands of GPS.Sm6b-ghs-tb 6pin Socket withoutBracket
Description:
Size: 32*30*12mm
Weight: 20g
concurrent GNSS
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
Sensitivity:
Tracking & Nav.: -167dBm, Reacquisition: -163dBm
Cold start: -151dBm, Hot start: -159dBm
Time to first fix: Cold start: 26s, Hot start: 1s
Connect ports:
Power supply: voltage 5VDC+-5%, current 50~55mA
Ports:
A. GPS UART interface
baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
B. Geomagnetic I2C interface
