HTLNUZD Mateksys MLRS MAVLink 900MHz TX Module Kit (MR900-30-TX) Long Range RC Parts

Description

• POWERFUL CORE SPECmR900-30 features STM32G431KB, mLRS firmware & LoRa SX1262 with TCXO for reliable long-range RC performance
• HIGH-POWER RF CAPABILITY900MHz (868/915MHz) with 21-30dBm (1000mW) power; PA/LNA SKY68383-11 enhances signal strength
• HIGH-POWER RF CAPABILITY900MHz (868/915MHz) with 21-30dBm (1000mW) power; PA/LNA SKY68383-11 enhances signal strength
• EASY OPERATION & STATUSDFU/Bind button; red/green LEDs (mLRS), blue (Bluetooth) for clear, real-time status checks
• EASY OPERATION & STATUSDFU/Bind button; red/green LEDs (mLRS), blue (Bluetooth) for clear, real-time status checks

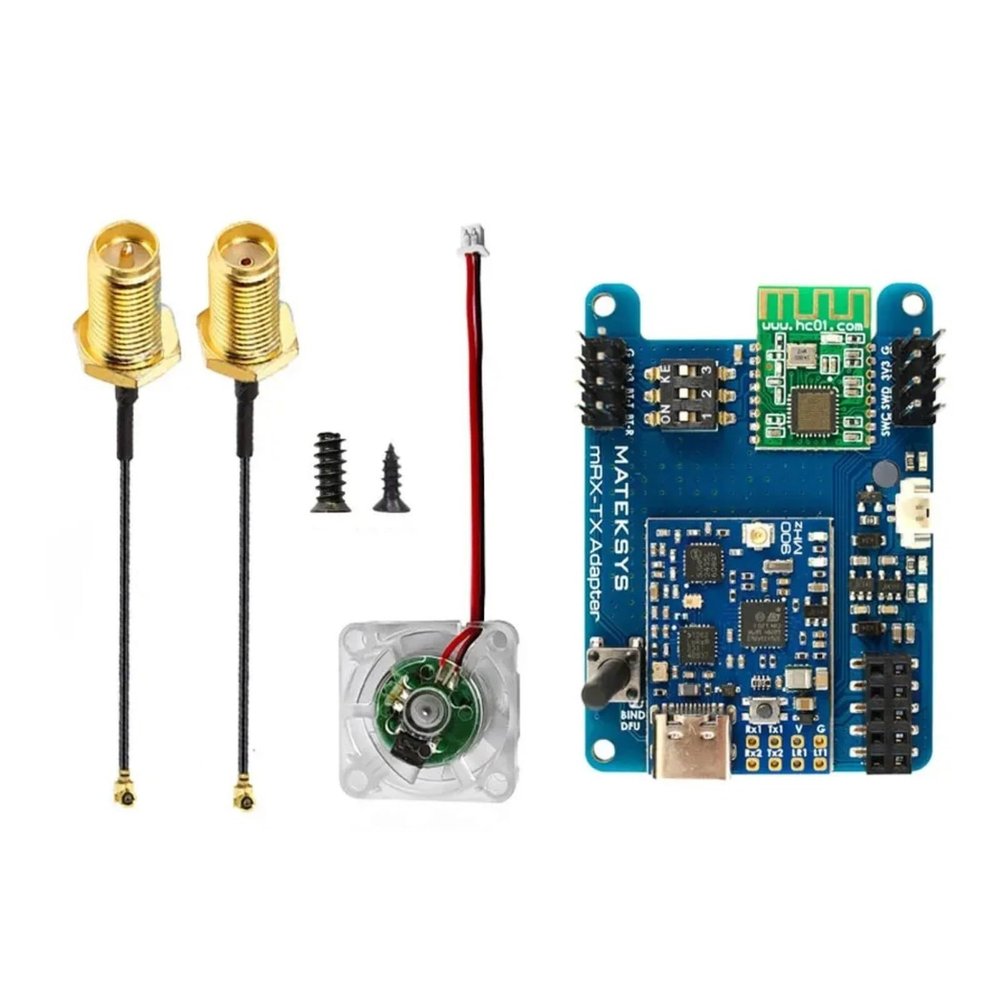

Packing:
1x mR900-30-TX,
1x IPEX MHF1 to SMA adapter cable 5cm,
1x IPEX MHF1 to RP-SMA adapter cable 5cm
1x 5V Fan (25*25*10mm) and some screws
no SMA antenna & 3D printed Case packed
Downloads:
JR Bay Case 3D print (stl)
mRX-TX Adapter 3D (step)
LED Status
[Red flashing 2Hz], not connected to transmitter
[Green flashing 1Hz], connected to transmitter
[Red and Green alternately ], Binding mode enabled
Binding
After powering on, press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
Tips
mLRS Github & Documentation
mLRS Discord
mLRS Facebook group
MATEKSYS mLRS 900MHz series are NOT compatible with ELRS
900MHz & Frsk-yR9 series using the SX127x. They will not bind with each other.
