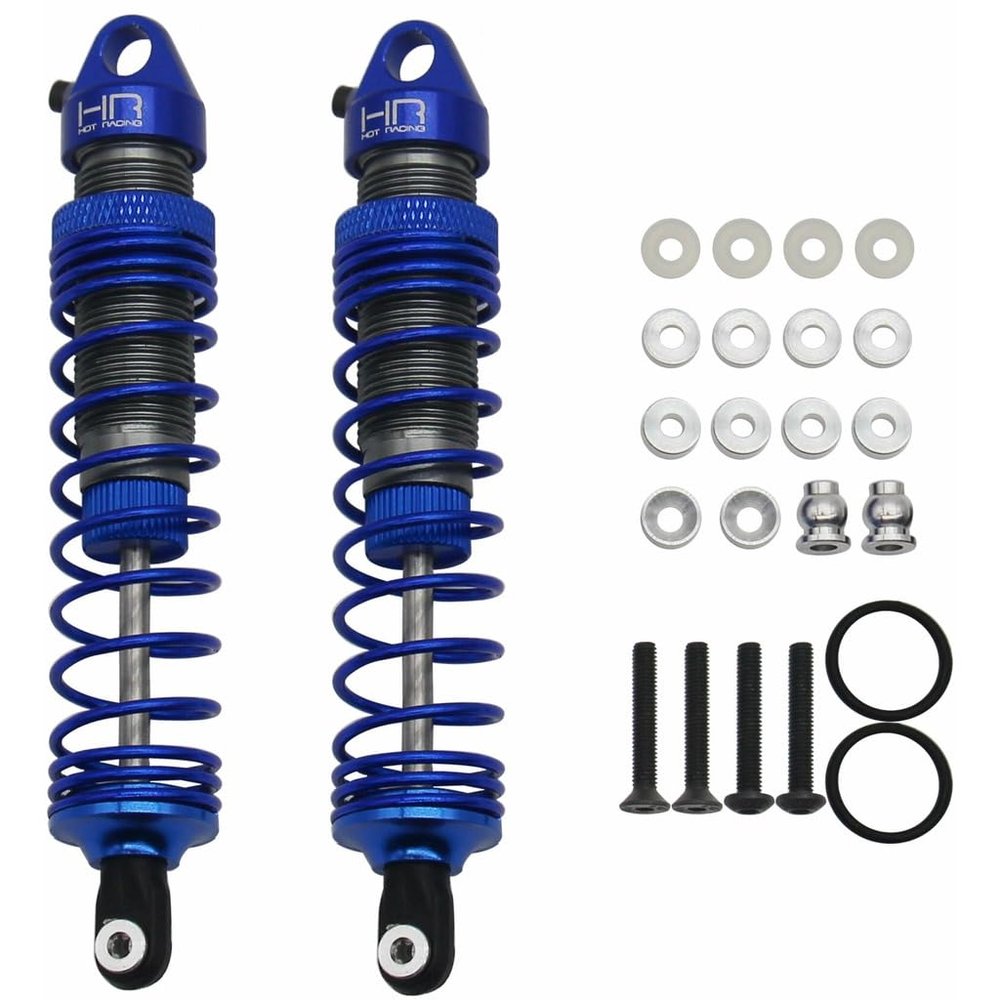

Hot Racing TD110X06 Aluminum 110mm Hd Big Bore Shocks (2)

Description

• Made by Hot Racing; Hot Racing is a United States based company; parts are sourced from Chinese producers
• All Hot Racing upgrade parts are direct replacements for stock components; additional parts are not required
• Hot Racing part number TD110X06; UPC 083745842944

Hot Racing 110mm big bore threaded body aluminum shocks for many TRA and other 1/10th scale off-road vehicles using 110mm shocks
FEATURES:
- CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
- "Big Bore" threaded shock bodies
- CNC machined 11mm Delrin pistons
- 3.5mm stainless steel shock shafts
- Gunmetal and blue anodized aluminum components
- Vented shock caps with bladder seals for consistent rebound dampening
- Threaded shock collars with o-rings to prevent unwanted movement
- Composite plastic lower shock ends with aluminum balls
- Fully assembled, just add shock oil and bleed
YOU WILL RECEIVE:
- Two (2) assembled shocks
- Two (2) M3x20mm flat head cap screws
- Two (2) M3x18mm button head cap screws
- Two (2) 3mm countersunk washers
- Two (2) 5.9 hollow balls
- Four (4) 1.5mm thick spacers
- Four (4) 3mm thick spacers
REQUIREMENTS:
- Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure
- Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
- Snap ring pliers when rebuilding lower seal
SPECIFICATIONS:
- Extended length: 110mm
- Compressed length: 75mm
- Overall length: 120mm
- diameter: 19mm
- Spring: ~5.8lb/in, 1.54mm wire, 14 turn dual rate, 19.3mm OD, 73mm long
COMMENTS:
- Use spacers as need for installation
- Can be used with optional Hot Racing springs: SLF63FS261 (progressive), SLF63MR268 (linear), SLF63RS286 (progressive)
- See Hot Racing TD8100X06 for an eight (8) pack of 100mm shocks
- Accepts optional Hot Racing silicone shock boot RDP34201
- Rep
