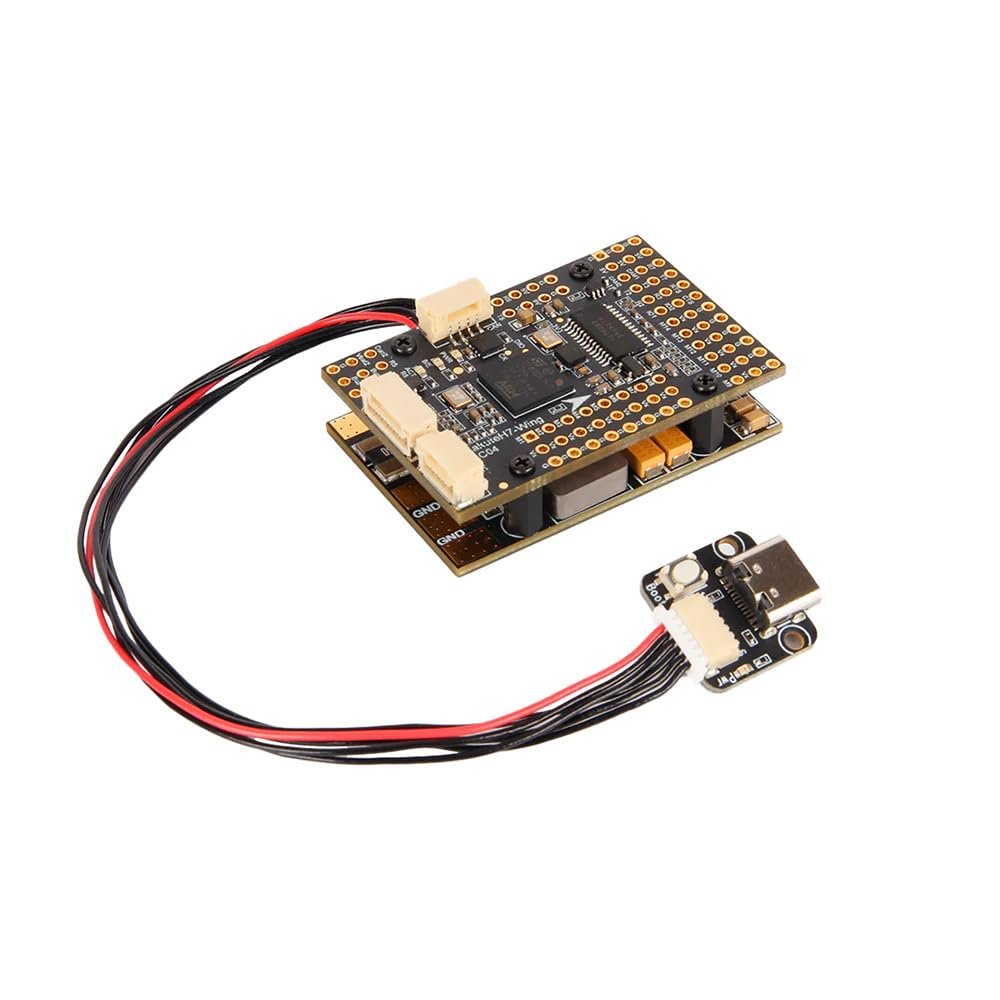

HolyBro Kakute H743 Wing INAV Ardupilot Flight Controller Advanced 3-8S LiPo Compatible, Dual Firmware Support for RC Airplane, Fixed-Wing Drones & DIY Projects (With Pin Header, Professional Grade)

Description

• The Holybro Kakute H743 Wing is a full featured flight controller with layout specifically for fixed wing & VTOL applications. It has the STM32 H743 Processor running at 480 MHz and CAN Bus support, along with dual camera support & switch, ON/OFF Pit Switch, 5V, 6V/8V, 9V/12 BEC, and plug-and-play GPS, CAN, I2C ports.
• MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash.IMU: ICM-42688P (SPI3).Baro: BMP280 (I2C4).OSD: AT7456E (SPI2).Blackbox: MicroSD card slot on SDMMC2MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash.IMU: ICM-42688P (SPI3).Baro: BMP280 (I2C4).OSD: AT7456E (SPI2).Blackbox: MicroSD card slot on SDMMC2MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash.IMU: ICM-42688P (SPI3).Baro: BMP280 (I2C4).OSD: AT7456E (SPI2).Blackbox: MicroSD card slot on SDMMC2
• 7x Uarts (1,2,3,5,6,7,8) with built-in inversion.14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI).3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors).3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Green)
• USB/DFU Key Extender with USB Type-C.Dual Camera Inputs switch.5V/9V(12V) for Camera/VTX power switch.High-precision Current Sense (90A continuous, 220A peak).Battery Voltage Sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot) Static power 160mA@5V
• Ardupilot Target: KAKUTEH7-Wing(Ardupilot 4.4 or newer) INAV Target: KAKUTEH7Wing (INAV 6.1.1 or newer)

Features
STM32H743 MCU running at 480 MHz
High-Precision / low-noise ICM-42688-P IMU
CAN Bus Support
Dual Camera Inputs switch
3 On-board BEC output 5V, 6V/8V and 9V/12V
9V/12V ON/OFF Pit Switch
On-board voltage & current sensor
Integrated BMP280 barometer
Plug-and-play GPS, CAN, I2C ports
Small & low-profile design fits into compact frames
Supports INAV (6.1.1 & later), Ardupilot (4.4 & later)
Package Includes
1x Kakute H743-Wing Flight Controller
1x Power Board
1x Top Board
1x USB-EXT Board
1x Electrolytic capacitor: 220uF 62v
2x XT60 60mm Power Cable
3x 2.54 DuPont Pin
2x 15cm JST-GH 4Pin Cable (For CAN & I2C Port
1x 15cm JST-SH 6Pin Cable (For USB-EXT Board)
