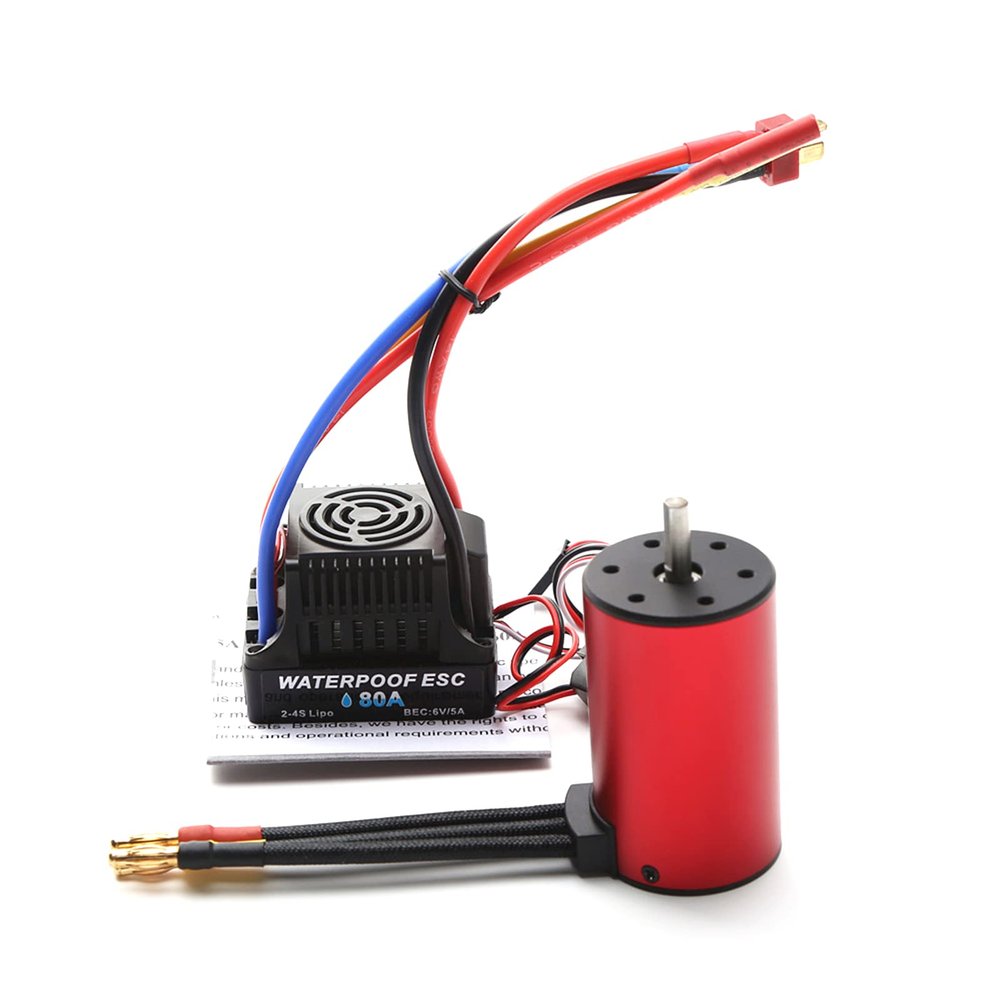

GoolRC 3660 3800KV Brushless Motor with 80A Brushless ESC Electric Speed Controller, Waterproof Motor ESC Combo Set Replacement for 1/8/ 1/10 Traxxas Tamiya WLtoys RC Car

Description

• 4 Pole 12 Slot Hi-torque Motor Design.
• High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings.
• Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
• Universal fit, for 1:8 1:10 2S RC car, 3S RC racing car. Stator-Super Thin (0.35mm) Laminations.
• Precision balanced rotor, smoothness for best reliability and maximum RPM.

Specifications:
Name: Brushless Motor
KV(RPM/Volt): 3800KV
Watt: 1200
Max RPM: 50000
Max Voltage: <12V
Max Amps: 100A
Rotor Poles: 4
Diameter: 36mm
Length: 60mm
Shaft Length: 17mm
Connector: 4.0mm Gold
Weight: 222g
Shaft(mm): 3.175

Name: 80A ESC
Cont.Current/Burst Current: 80A/480A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. On-road: 3670/3660-Size or smaller motor with the KV<3000KV
2. Off-road: 3670-size or smaller motor with the <3000KV
For 3S-4S Lipo or 9 cells NiMH:
1. On-road: 3660-Size or smaller motor with the KV<3000KV
2. Off-road: 3660-size or smaller motor with the <3000KV
Suitable Car: 1/10 1/8 RC Car
Resistance: 0.0005ohm
Battery: 2-4S Lipo/4-12Cells NiMH
BEC Output: 6V/5A (Switch mode)
Size: 53*37*38mm

Package Information:
Package Size: 8*4*5cm
Package Weight: 329g
General Box Package

Packing Listing:
1* 3800KV Brushless Motor
1* 80A ESC
