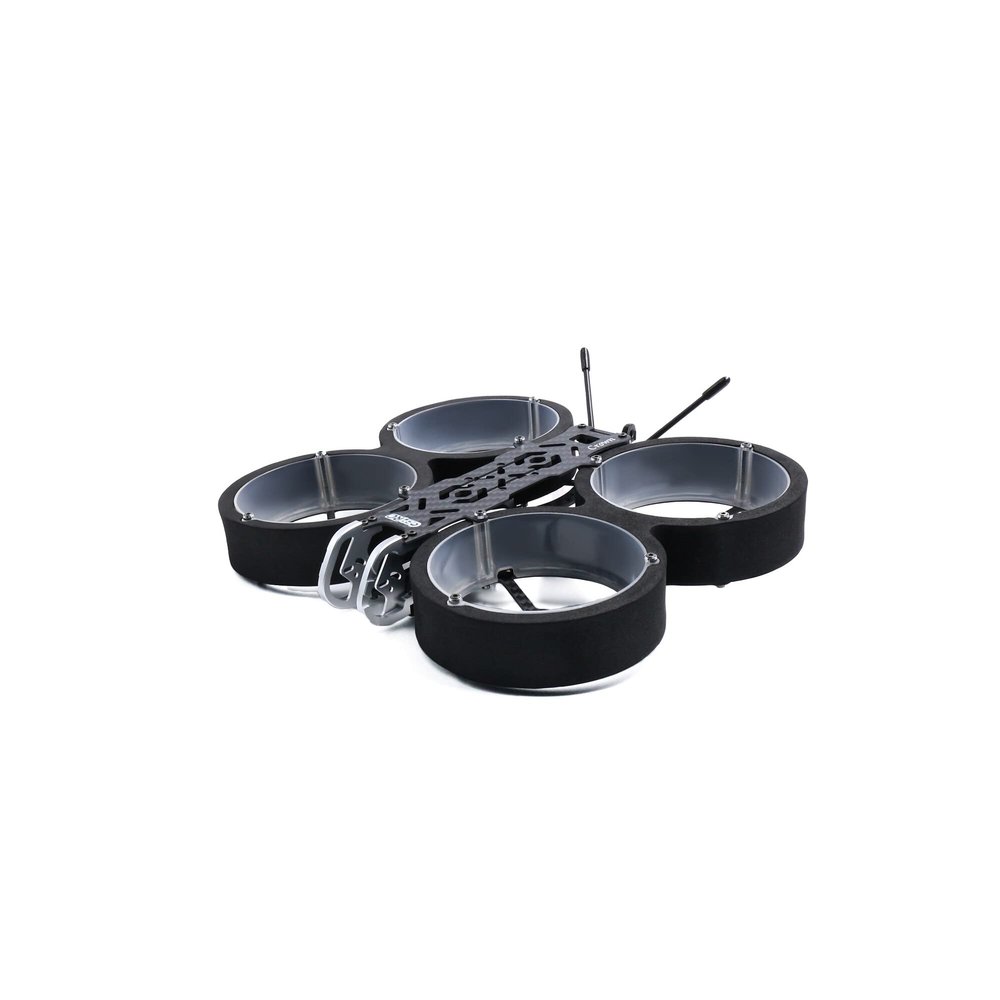

GEPRC Crown HD 3inch Cinewhoop FPV Drone Replacement 156mm Carbon Fiber Frame Kits GEP-CW3

Description

• Model number: GEP-CW3
• For vehicle type: Helicopters
• Tool supplies: Assembled class
• Four-wheel drive attributes: Assemblage
• Remote control peripherals/devices: Remote Controller

Introduction
The GEP-CW3 Frame is designed by the GEPRC team with the greatest degree of noise reduction optimization. It is compatible with DJI Air Unit and Caddx Vista system, The GEP-CW3 Cinewhoop Frame can also be used with analog image transmission. The flight control mounting hole can be compatible with two sizes: 30.5 * 30.5mm & 20 * 20mm.
Configuration:
Brand: GEPRC
Item:GEP-CW3
Motor to Motor: 156mm
Internal diameter: 3inch
Camera size: 19~20mm
Propellers: 3inch
The hole size of Motor 9mm ( Compatible with 1408/1507/1805.5/2004Motor)
The hole size of FC:30.5*30.5mm & 20*20mm
hickness of Top Plate:2mm
Thickness of Arms: 2mm
Thickness of Bottom Plate: 2mm
Weight: 136.2 Grams
Include:
1 x Top plate 2mm
1 x Bottom plate 2mm
2 x Cinewhoop Arms 2mm
2 x Aluminum splints of camera(Left&Right)
12 x Aluminum column (M2*3.5*26mm)
2 x Aluminum column(M2*4*26mm)
4 x Cinewhoop Guards (Left&Right)
2 x Damping EVA Ring
4 x(M2)Nuts
12 x(M2)Washers
14 x(M2*5mm)Screws
4 x(M2*6mm)Screws
22 x(M2*8mm)Screws
16 x(M2*6mm)Screws
4 x(M2*4mm)Screws
4 x(M3*20mm)Screws
4 x( M2*25mm)Screws
4 x(M3mm)Nylon Nuts
2 x(M2mm)Nylon Washers
4 x(M2*5mm)Nylon Column
8 x(M2)Nylon Nuts
4 x 3D print Landing cushion
1 x 3D print mount of Antenna
2 x(M25*250mm)Battery Straps
2 x Antenna Tubes
1 x Battery pad
Item specifics:
Model number: GEP-CW3
For vehicle type: Helicopters
Tool supplies: Assembled class
Four-wheel drive attributes: Assemblage
Remote control peripherals/devices: Remote Controller
Upgrade parts/accessories: Frame
Rc parts & accs: AXLE
Material: Carbon Fiber
Origin: Mainland China
Recommend age: 12+y
