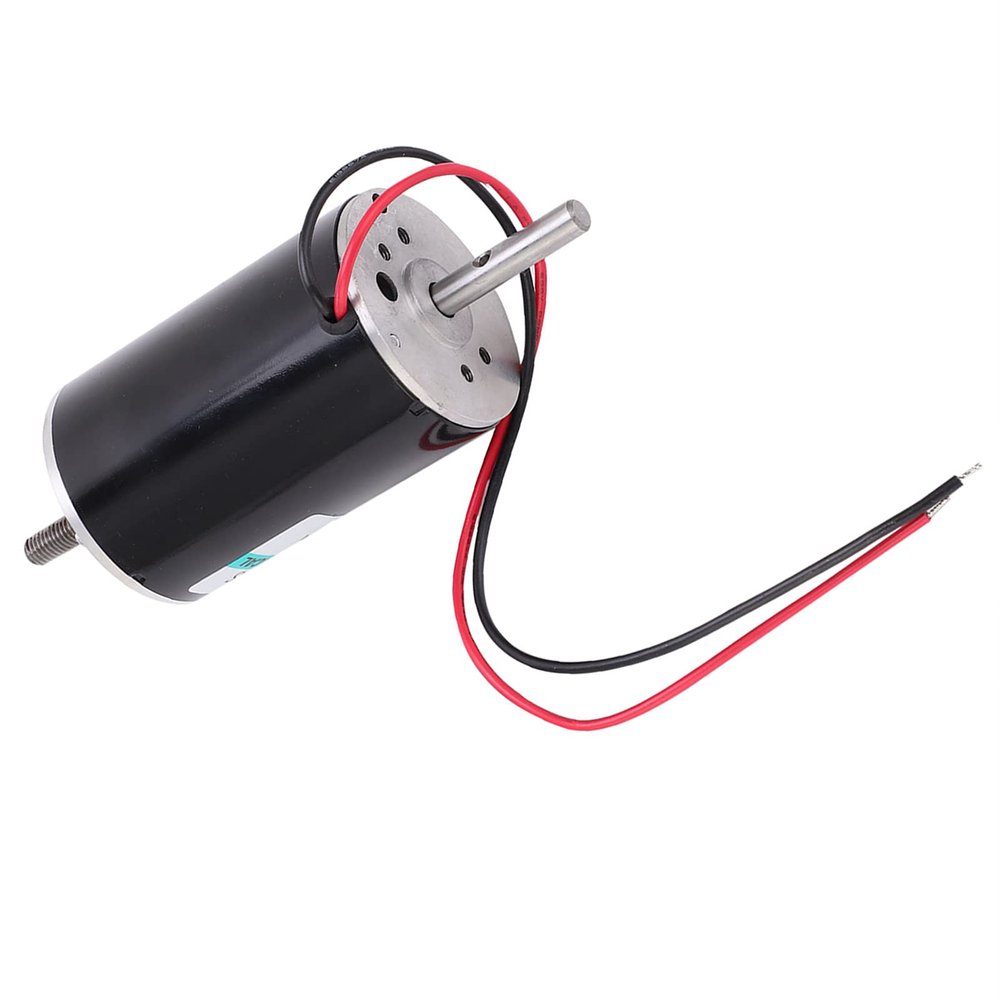

Generator Motor, High Speed CW CCW Double Output 8500RPM DC Motor 80W 24V for DIY Toys for Cutting Machine for Wind Turbine Generator(Without stand)

Description

• Stator and rotor using brass coils, deceleration resistance, and enhanced conductivity, thereby increasing the motor torsion
• Using 2200GS goodquality magnetic tile, bring high working efficiency, low dynamic loss
• Double ball bearings, the axial bearing capacity is large, the friction force is small, and the ball bearing has strong oil sealing performance
• The two ends of the rotating shaft are extended out of the casing to make it into a doubleheaded shaft motor. Each end of the rotating shaft can be equipped with output wheels or vibrators as needed to meet the special requirements of some special occasion. Has good practicality
• The speed can be adjusted CW and CCW, which is more convenient and fast to operate, very practical

Feature:
1. double ball bearings, the axial bearing capacity is large, the friction force is small, and the ball bearing has strong oil sealing performance
2. Stator and rotor using brass coils, deceleration resistance, and enhanced conductivity, thereby increasing the motor torsion
3. The two ends of the rotating shaft are extended out of the casing to make it into a double?headed shaft motor. Each end of the rotating shaft can be equipped with output wheels or vibrators as needed to meet the special requirements of some special occasion. Has good practicality
4. Using 2200GS good?quality magnetic tile, bring high working efficiency, low dynamic loss
5. The speed can be adjusted CW and CCW, which is more convenient and fast to operate, very practical

How to Use:
1. Red Wire Connection: + (positive)
2. Black Wire Connection: ?(negative)
3. Directly connect to the 12V DC power supply

Specification:

Item Type: DC Motor
Body Material: Iron
Model: XD60D94-24Y-100S
Scope of Application: Lawn mower, grinder, cutting machine, electric drill floor, small generator, winding machine, bag cutting machine, twisting machine, polishing machine, small radiator, toy, car model, blower, small pump, mixer
Voltage: 24VDC
Power: 80W
No-Load Speed: 10000 (r/min)
Load Speed: 8500 (r/min)
Load Torsion: 10 (kgf.cm)
Load Current: 10A
No-Load Current: 0.75A
Output Shaft Diameter: Approx. 40 x 8mm / 1.6 x 0.3in
Whether to Adjust the Speed: Yes
Whether can be CW and CCW: Yes

Package List:
1 x DC Motoror
1 x DC Motor
1 x Bracket
