Description
- Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!
- This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
- Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
- This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
- AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
Note: We only sell mode 2.
Flysky Factory made a small change in the Screen print.
Features:
Reliable, interference free 2.4GHz AFHDS 2A signal operation.
6CH operation.
Use only 4 * AA batteries for transmitter.
Quick and extremely stable in performance.
Simple binding procedure.

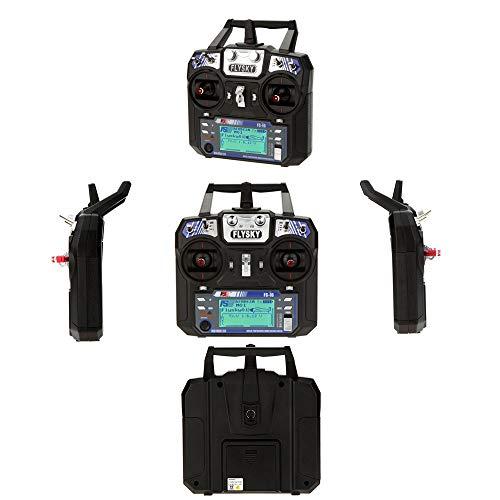

Transmitter Specfications:
Channels: 6
Model type: fixed-wing/glider/helicopter
RF range: 2.405-2.475GHz
Bandwidth: 500KHz
Band: 142
RF power: less than 20dBm
2.4G system: AFHDS 2A and AFHDS
Code type: GFSK
Sensitivity: 1024
Low voltage warning: less than 4.2V
DSC port: PS2; output: PPM
Charger port: no
ANT length: 26mm * 2(dual antenna)
Power: 6V 1.5AA * 4 (Not included)
Display mode: Transflective STN positive type,
128 * 64 dot matrix VA72 * 39mm, white backlight.
Size:174 * 89 * 190mm
Weight: 392g
Online update: yes
Receiver Specifications:
Channels: 6 Channels
Model type: Airplane / Glider / Helicopter
Frequency range: 2.4--2.48GHZ
Band width number: 140
Transmitting power: not moer than 20dBm
RX sensitivity: -105dBm
2.4G system: AFHDS 2A
Code type: GFSK
Antenna length: 26mm
Input power: 4.0-6.5V DC
Dimension: 40 * 21 * 7mm
Weight: 6.4g
i-Bus interface: No
Data acquisition interface: No
Package information:
Package size: 23 * 21 * 10.5cm / 9.1 * 8.3 * 4.1in
Package weight: 680g / 1.5lb
